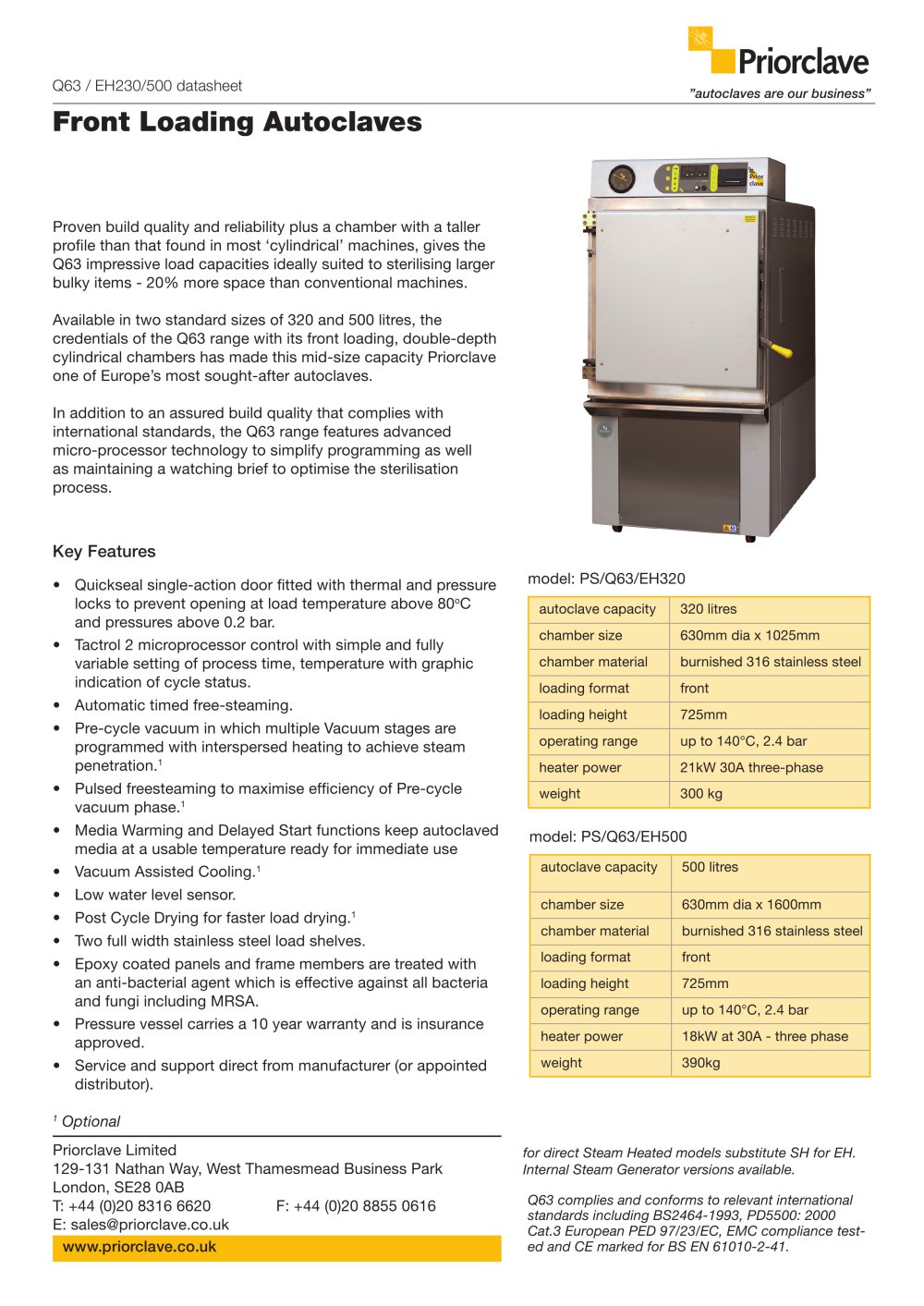

Large Capacity Front Loading Priorclave Datasheet - Priorclave - #1

Technical Datasheet U:\Priorclave\TechSpecSheets\Q63 Front Loaders.doc

21/3/2007

320 Litre Capacity

Large diameter chamber giving 20% more loading area than conventional models.

Quickseal 2 single action door closure system

Electrically Heated 21kW (three phase 30A)

Direct steam heated models available

Steam generated within the chamber (electrically heated models)

Forced air cooling - standard

Automatic timed freesteaming - standard

Conforms to BS2646-1993, BS5500 Cat.3, European PED 97/23/EC, EMC compliance tested and CE Marked.

Supplied with two full width stainless steel shelves.

Delayed start and media warming capacity

The pressure vessel is insurance approved.

Safety features include: protective outer safety cover, special safety handnut mechanism, which cracks the gasket seal allowing any residual pressure to safely escape. A thermal cooling lock, preventing the door from being opened until the contents have cooled to a safe temperature is also fitted. The unit also features a low water level sensor, that prevents boil-dry conditions and a safety blow down valve affords further protection.

Operation up to 138°C - 2.4 Bar. The TACTROL microprocessor control system has staged illumination giving digital readouts of cycle status and the simple to set control panel features adjustable temperature and time that can be viewed simultaneously. Ideally suited for use in a wide range of applications:

Sterilisation - media preparation, liquids and diluent, waste, glassware, instruments, apparatus, health care

Non-sterilisation construction.

■ food processing, plastics, accelerated curing,

Extensively used within many industries, including: food, drink,

dairy, pharmaceutical, agricultural, education, healthcare, research establishments and industry.

415V 50Hz 30A per phase TP, E&N Dry Steam reduced to 3.5 Bar. /" BSP. 1300mm 22mm BSP)

15mm (1" BSP) 15mm (1" BSP)

The single vent outlet pipe can be directed to a nearby drain. For make safe processing the discharge should be directed to a sealed discharge system; the system should lead by direct connection to a building drain or catchment tank.

Dimensions are approximate only
