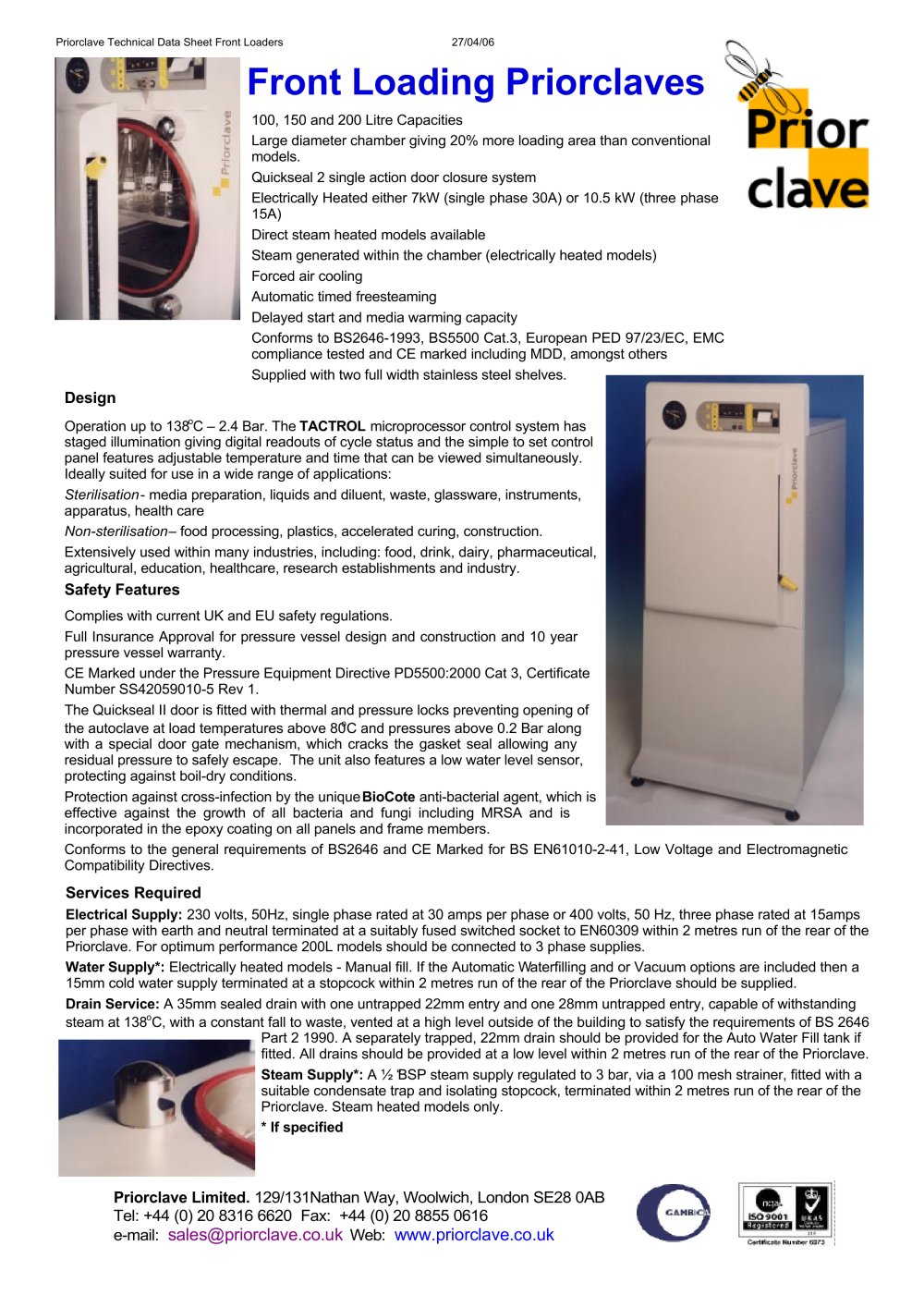

Front Loading Priorclave Datasheet - Priorclave - #1

Priorclave Technical Data Sheet Front Loaders

 27/04/06 i--.

100, 150 and 200 Litre Capacities

Large diameter chamber giving 20% more loading area than conventional models.

Quickseal 2 single action door closure system

Electrically Heated either 7kW (single phase 30A) or 10.5 kW (three phase

15A)

Direct steam heated models available

Steam generated within the chamber (electrically heated models) Forced air cooling Automatic timed freesteaming Delayed start and media warming capacity

Conforms to BS2646-1993, BS5500 Cat.3, European PED 97/23/EC, EMC compliance tested and CE marked including MDD, amongst others

Supplied with two full width stainless steel shelves.

Operation up to 138°C - 2.4 Bar. The TACTROL microprocessor control system has staged illumination giving digital readouts of cycle status and the simple to set control panel features adjustable temperature and time that can be viewed simultaneously. Ideally suited for use in a wide range of applications:

Sterilisation - media preparation, liquids and diluent, waste, glassware, instruments, apparatus, health care

Non-sterilisation - food processing, plastics, accelerated curing, construction.

Extensively used within many industries, including: food, drink, dairy, pharmaceutical, agricultural, education, healthcare, research establishments and industry.

Complies with current UK and EU safety regulations.

Full Insurance Approval for pressure vessel design and construction and 10 year pressure vessel warranty.

CE Marked under the Pressure Equipment Directive PD5500:2000 Cat 3, Certificate Number SS42059010-5 Rev 1.

The Quickseal II door is fitted with thermal and pressure locks preventing opening of the autoclave at load temperatures above 80C and pressures above 0.2 Bar along with a special door gate mechanism, which cracks the gasket seal allowing any residual pressure to safely escape. The unit also features a low water level sensor, protecting against boil-dry conditions.

Protection against cross-infection by the unique BioCote anti-bacterial agent, which is effective against the growth of all bacteria and fungi including MRSA and is incorporated in the epoxy coating on all panels and frame members.

Conforms to the general requirements of BS2646 and CE Marked for BS EN61010-2-41, Low Voltage and Electromagnetic Compatibility Directives.

Electrical Supply: 230 volts, 50Hz, single phase rated at 30 amps per phase or 400 volts, 50 Hz, three phase rated at 15amps per phase with earth and neutral terminated at a suitably fused switched socket to EN60309 within 2 metres run of the rear of the Priorclave. For optimum performance 200L models should be connected to 3 phase supplies.

Water Supply*: Electrically heated models - Manual fill. If the Automatic Waterfilling and or Vacuum options are included then a 15mm cold water supply terminated at a stopcock within 2 metres run of the rear of the Priorclave should be supplied.

Drain Service: A 35mm sealed drain with one untrapped 22mm entry and one 28mm untrapped entry, capable of withstanding steam at 138^oC, with a constant fall to waste, vented at a high level outside of the building to satisfy the requirements of BS 2646

Part 2 1990. A separately trapped, 22mm drain should be provided for the Auto Water Fill tank if fitted. All drains should be provided at a low level within 2 metres run of the rear of the Priorclave.

Steam Supply*: A !4 BSP steam supply regulated to 3 bar, via a 100 mesh strainer, fitted with a suitable condensate trap and isolating stopcock, terminated within 2 metres run of the rear of the Priorclave. Steam heated models only.
