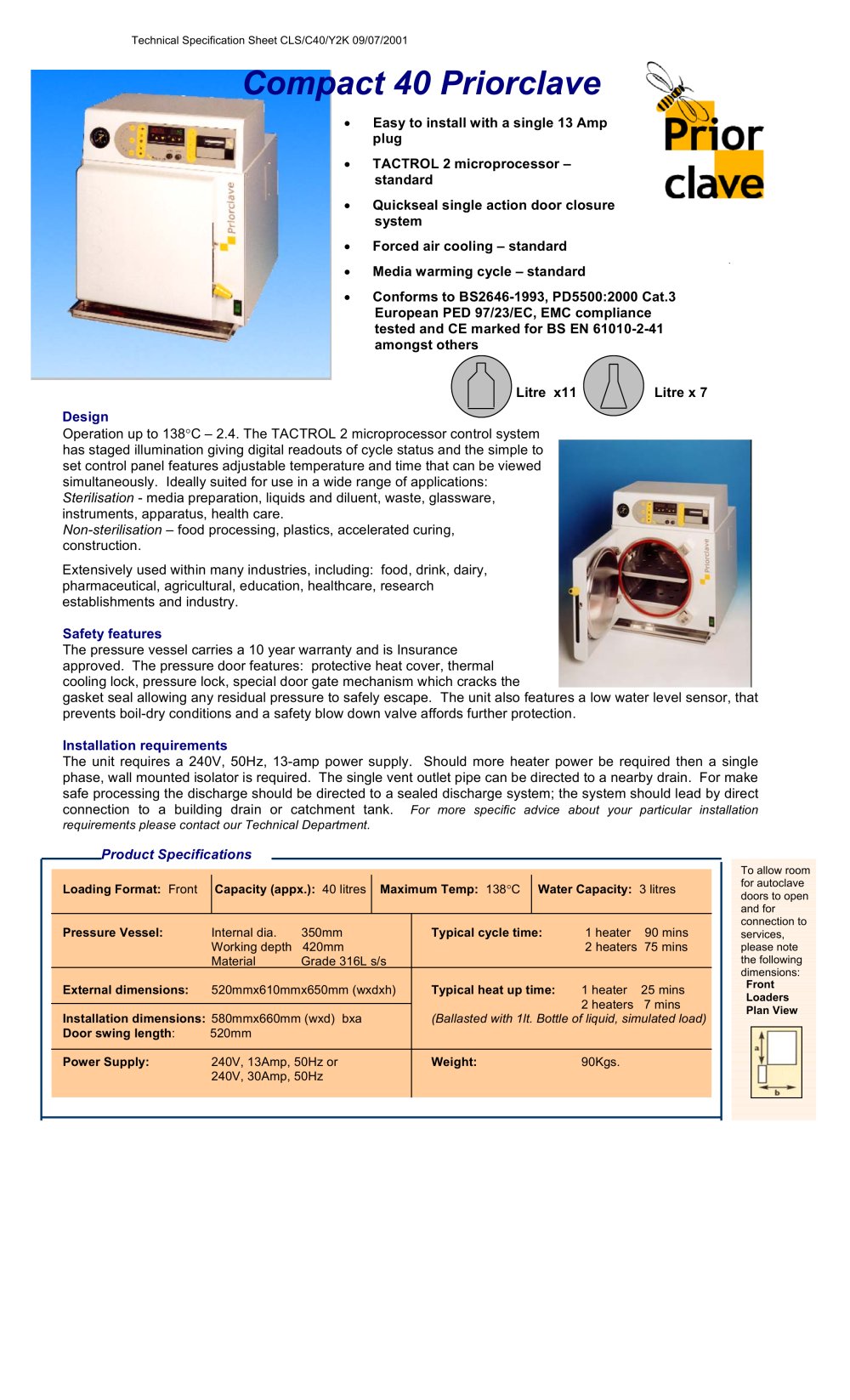

| Technical Specification Sheet CLS/C40/Y2K 09/07/2001 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Compact 40 Priorclave | ||||||||||||||||||||||||||||||||||||||||||||||||
| Easy to install with a single 13 Amp plug TACTROL 2 microprocessor -standard Quickseal single action door closure system Forced air cooling - standard Media warming cycle - standard Conforms to BS2646-1993, PD5500:2000 Cat.3 European PED 97/23/EC, EMC compliance tested and CE marked for BS EN 61010-2-41 amongst others | ||||||||||||||||||||||||||||||||||||||||||||||||
| • | ||||||||||||||||||||||||||||||||||||||||||||||||
| • | ||||||||||||||||||||||||||||||||||||||||||||||||
| Litre x11 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Design Operation up to 138°C - 2.4. The TACTROL 2 microprocessor control system has staged illumination giving digital readouts of cycle status and the simple to set control panel features adjustable temperature and time that can be viewed simultaneously. Ideally suited for use in a wide range of applications: Sterilisation - media preparation, liquids and diluent, waste, glassware, instruments, apparatus, health care. Non-sterilisation - food processing, plastics, accelerated curing, construction. Extensively used within many industries, including: food, drink, dairy, pharmaceutical, agricultural, education, healthcare, research establishments and industry. Safety features The pressure vessel carries a 10 year warranty and is Insurance approved. The pressure door features: protective heat cover, thermal cooling lock, pressure lock, special door gate mechanism which cracks the gasket seal allowing any residual pressure to safely escape. The unit also features a low water level sensor, that prevents boil-dry conditions and a safety blow down valve affords further protection. Installation requirements The unit requires a 240V, 50Hz, 13-amp power supply. Should more heater power be required then a single phase, wall mounted isolator is required. The single vent outlet pipe can be directed to a nearby drain. For make safe processing the discharge should be directed to a sealed discharge system; the system should lead by direct connection to a building drain or catchment tank. For more specific advice about yourparticular installation requirements please contact our Technical Department. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Product Specifications | ||||||||||||||||||||||||||||||||||||||||||||||||
| To allow room for autoclave doors to open and for connection to services, please note the following dimensions: Front Loaders Plan View | ||||||||||||||||||||||||||||||||||||||||||||||||
| Loading Format: Front | Capacity (appx.): 40 litres | Maximum Temp: 138°C | Water Capacity: 3 litres | |||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||
