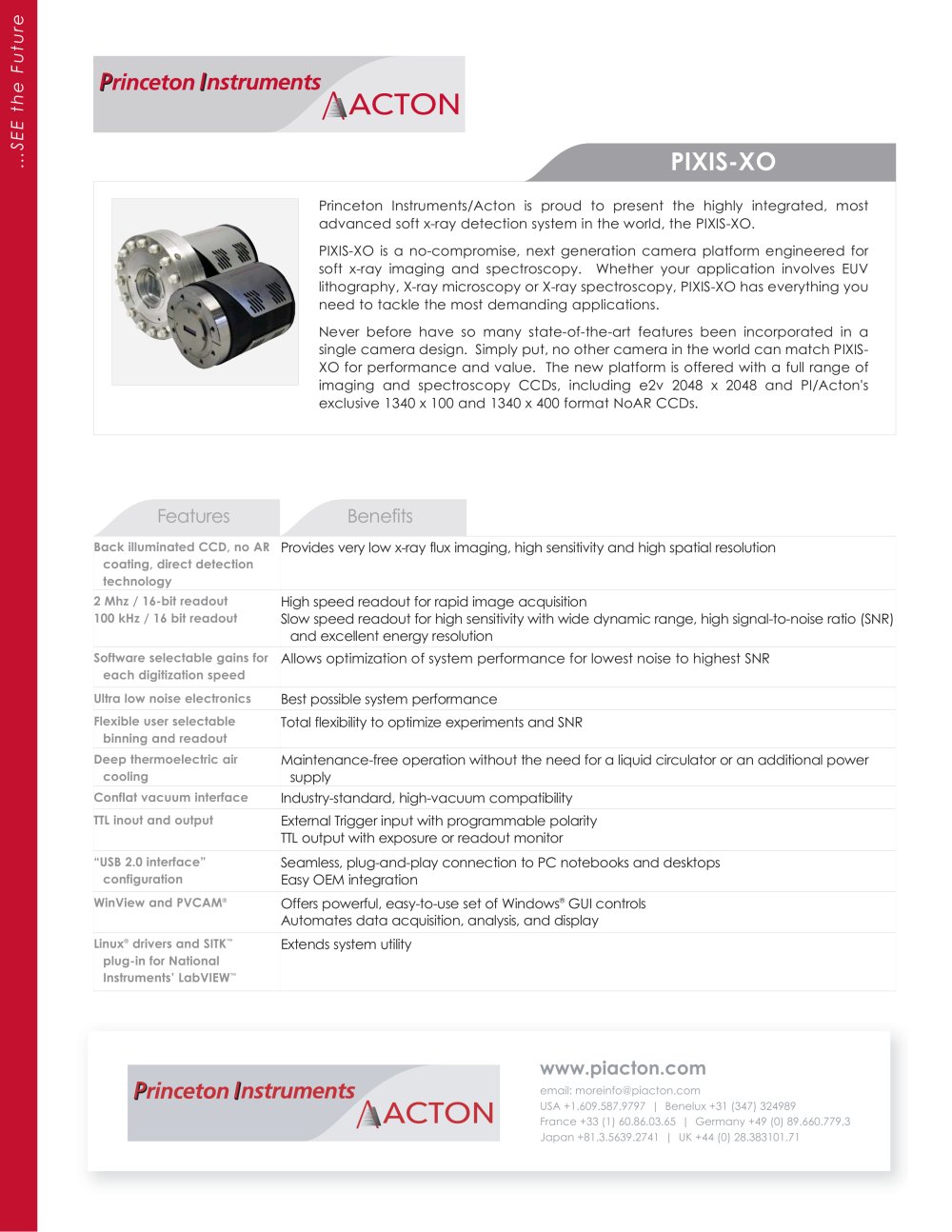

PIXIS-XO Product Flyer - 35003 PIXIS-XO

Princeton Instruments/Acton is proud to present the highly integrated, mostadvanced soft x-ray detection system in the world, the PIXIS-XO.PIXIS-XO is a no-compromise, next generation camera platform engineered forsoft x-ray imaging and spectroscopy. Whether your application involves EUV lithography, X-ray microscopy or X-ray spectroscopy, PIXIS-XO has everything you need to tackle the most demanding applications.Never before have so many state-of-the-art features been incorporated in asingle camera design. Simply put, no other camera in the world can match PIXIS- XO for performance and value. The new platform is offered with a full range of imaging and spectroscopy CCDs, including e2v 2048 x 2048 and PI/Acton'sexclusive 1340 x 100 and 1340 x 400 format NoAR CCDs.

FeaturesBenefits

Back illuminated CCD, no ARcoating, direct detection technology

Provides very low x-ray flux imaging, high sensitivity and high spatial resolution

2 Mhz / 16-bit readout 100 kHz / 16 bit readout

High speed readout for rapid image acquisitionSlow speed readout for high sensitivity with wide dynamic range, high signal-to-noise ratio (SNR)and excellent energy resolution

Software selectable gains foreach digitization speed

Allows optimization of system performance for lowest noise to highest SNR

Ultra low noise electronics

Best possible system performance

Flexible user selectablebinning and readout

Total flexibility to optimize experiments and SNR

Deep thermoelectric aircooling

Maintenance-free operation without the need for a liquid circulator or an additional powersupply

Conflat vacuum interface

Industry-standard, high-vacuum compatibility

TTL inout and output

External Trigger input with programmable polarity TTL output with exposure or readout monitor

“USB 2.0 interface”configuration

Seamless, plug-and-play connection to PC notebooks and desktopsEasy OEM integration

WinView and PVCAM

®

Offers powerful, easy-to-use set of Windows

®

GUI controlsAutomates data acquisition, analysis, and display

Linux

®

drivers and SITK

™

Extends system utility

plug-in for NationalInstruments’ LabVIEW

™
