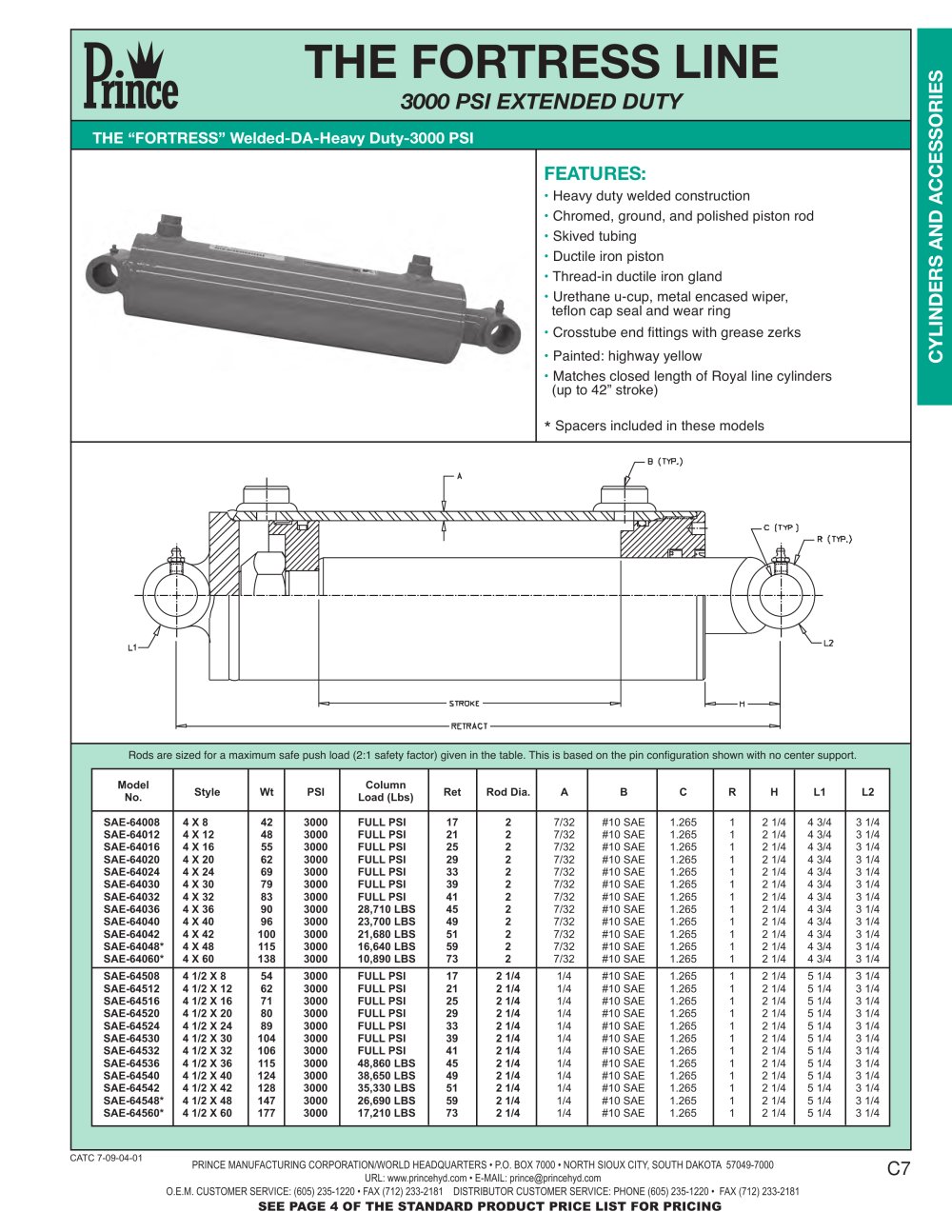

PRINCE MANUFACTURING CORPORATION/WORLD HEADQUARTERS • P.O. BOX 7000 • NORTH SIOUX CITY, SOUTH DAKOTA 57049-7000 URL: www.princehyd.com • E-MAIL: prince@princehyd.com O.E.M. CUSTOMER SERVICE: (605) 235-1220 • FAX (712) 233-2181 DISTRIBUTOR CUSTOMER SERVICE: PHONE (605) 235-1220 • FAX (712) 233-2181 CYLINDERS AND ACCESSORIES CATC 7-09-04-01 THE FORTRESS LINE 3000 PSI EXTENDED DUTY THE “FORTRESS” Welded-DA-Heavy Duty-3000 PSI Rods are sized for a maximum safe push load (2:1 safety factor) given in the table. This is based on the pin configuration shown with no center support. FEATURES: • Heavy duty welded construction • Chromed, ground, and polished piston rod • Skived tubing • Ductile iron piston • Thread-in ductile iron gland • Urethane u-cup, metal encased wiper, teflon cap seal and wear ring • Crosstube end fittings with grease zerks • Painted: highway yellow • Matches closed length of Royal line cylinders (up to 42” stroke) * Spacers included in these models Model Style Wt PSI Column Ret Rod Dia. No. Load (Lbs) A B C R H L1 L2 SAE-64008 4 X 8 42 3000 FULL PSI 17 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64012 4 X 12 48 3000 FULL PSI 21 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64016 4 X 16 55 3000 FULL PSI 25 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64020 4 X 20 62 3000 FULL PSI 29 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64024 4 X 24 69 3000 FULL PSI 33 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64030 4 X 30 79 3000 FULL PSI 39 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64032 4 X 32 83 3000 FULL PSI 41 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64036 4 X 36 90 3000 28,710 LBS 45 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64040 4 X 40 96 3000 23,700 LBS 49 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64042 4 X 42 100 3000 21,680 LBS 51 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64048* 4 X 48 115 3000 16,640 LBS 59 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64060* 4 X 60 138 3000 10,890 LBS 73 2 7/32 #10 SAE 1.265 1 2 1/4 4 3/4 3 1/4 SAE-64508 4 1/2 X 8 54 3000 FULL PSI 17 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64512 4 1/2 X 12 62 3000 FULL PSI 21 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64516 4 1/2 X 16 71 3000 FULL PSI 25 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64520 4 1/2 X 20 80 3000 FULL PSI 29 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64524 4 1/2 X 24 89 3000 FULL PSI 33 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64530 4 1/2 X 30 104 3000 FULL PSI 39 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64532 4 1/2 X 32 106 3000 FULL PSI 41 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64536 4 1/2 X 36 115 3000 48,860 LBS 45 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64540 4 1/2 X 40 124 3000 38,650 LBS 49 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64542 4 1/2 X 42 128 3000 35,330 LBS 51 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64548* 4 1/2 X 48 147 3000 26,690 LBS 59 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 SAE-64560* 4 1/2 X 60 177 3000 17,210 LBS 73 2 1/4 1/4 #10 SAE 1.265 1 2 1/4 5 1/4 3 1/4 C7 SEE PAGE 4 OF THE STANDARD PRODUCT PRICE LIST FOR PRICING
