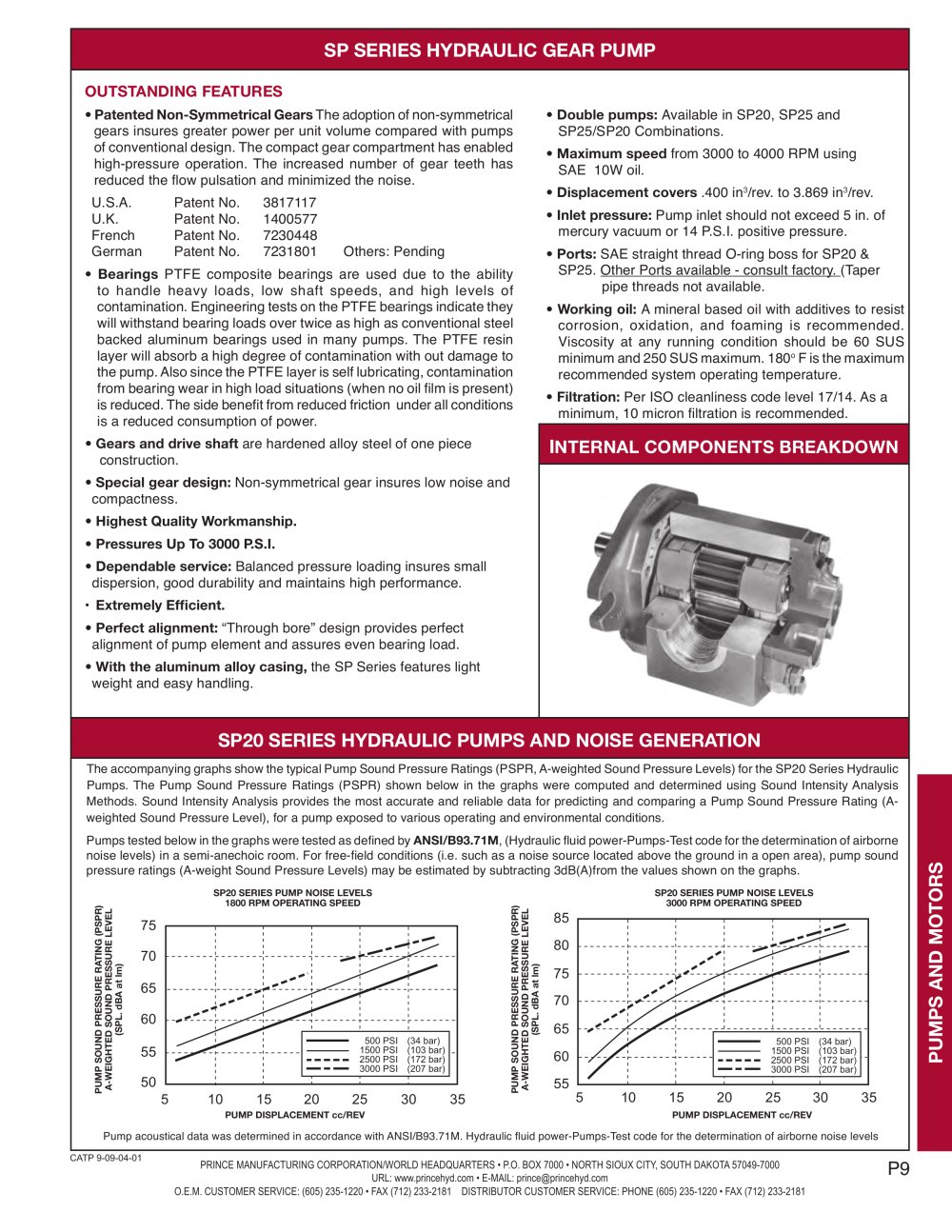

PRINCE MANUFACTURING CORPORATION/WORLD HEADQUARTERS • P.O. BOX 7000 • NORTH SIOUX CITY, SOUTH DAKOTA 57049-7000 URL: www.princehyd.com • E-MAIL: prince@princehyd.com O.E.M. CUSTOMER SERVICE: (605) 235-1220 • FAX (712) 233-2181 DISTRIBUTOR CUSTOMER SERVICE: PHONE (605) 235-1220 • FAX (712) 233-2181 P9 PUMPS AND MOTORS CATP 9-09-04-01 5 10 15 20 25 30 35 55 60 65 70 75 80 85 500 PSI (34 bar) 1500 PSI (103 bar) 2500 PSI (172 bar) 3000 PSI (207 bar) 5 10 15 20 25 30 35 50 55 60 65 70 75 500 PSI (34 bar) 1500 PSI (103 bar) 2500 PSI (172 bar) 3000 PSI (207 bar) SP SERIES HYDRAULIC GEAR PUMP OUTSTANDING FEATURES • Patented Non-Symmetrical Gears The adoption of non-symmetrical gears insures greater power per unit volume compared with pumps of conventional design. The compact gear compartment has enabled high-pressure operation. The increased number of gear teeth has reduced the flow pulsation and minimized the noise. U.S.A. Patent No. 3817117 U.K. Patent No. 1400577 French Patent No. 7230448 German Patent No. 7231801 Others: Pending • Bearings PTFE composite bearings are used due to the ability to handle heavy loads, low shaft speeds, and high levels of contamination. Engineering tests on the PTFE bearings indicate they will withstand bearing loads over twice as high as conventional steel backed aluminum bearings used in many pumps. The PTFE resin layer will absorb a high degree of contamination with out damage to the pump. Also since the PTFE layer is self lubricating, contamination from bearing wear in high load situations (when no oil film is present) is reduced. The side benefit from reduced friction under all conditions is a reduced consumption of power. • Gears and drive shaft are hardened alloy steel of one piece construction. • Special gear design: Non-symmetrical gear insures low noise and compactness. • Highest Quality Workmanship. • Pressures Up To 3000 P.S.I. • Dependable service: Balanced pressure loading insures small dispersion, good durability and maintains high performance. • Extremely Efficient. • Perfect alignment: “Through bore” design provides perfect alignment of pump element and assures even bearing load. • With the aluminum alloy casing, the SP Series features light weight and easy handling. • Double pumps: Available in SP20, SP25 and SP25/SP20 Combinations. • Maximum speed from 3000 to 4000 RPM using SAE 10W oil. • Displacement covers .400 in3/rev. to 3.869 in3/rev. • Inlet pressure: Pump inlet should not exceed 5 in. of mercury vacuum or 14 P.S.I. positive pressure. • Ports: SAE straight thread O-ring boss for SP20 & SP25. Other Ports available - consult factory. (Taper pipe threads not available. • Working oil: A mineral based oil with additives to resist corrosion, oxidation, and foaming is recommended. Viscosity at any running condition should be 60 SUS minimum and 250 SUS maximum. 180o F is the maximum recommended system operating temperature. • Filtration: Per ISO cleanliness code level 17/14. As a minimum, 10 micron filtration is recommended. Pump acoustical data was determined in accordance with ANSI/B93.71M. Hydraulic fluid power-Pumps-Test code for the determination of airborne noise levels The accompanying graphs show the typical Pump Sound Pressure Ratings (PSPR, A-weighted Sound Pressure Levels) for the SP20 Series Hydraulic Pumps. The Pump Sound Pressure Ratings (PSPR) shown below in the graphs were computed and determined using Sound Intensity Analysis Methods. Sound Intensity Analysis provides the most accurate and reliable data for predicting and comparing a Pump Sound Pressure Rating (Aweighted Sound Pressure Level), for a pump exposed to various operating and environmental conditions. Pumps tested below in the graphs were tested as defined by ANSI/B93.71M, (Hydraulic fluid power-Pumps-Test code for the determination of airborne noise levels) in a semi-anechoic room. For free-field conditions (i.e. such as a noise source located above the ground in a open area), pump sound pressure ratings (A-weight Sound Pressure Levels) may be estimated by subtracting 3dB(A)from the values shown on the graphs. SP20 SERIES HYDRAULIC PUMPS AND NOISE GENERATION INTERNAL COMPONENTS BREAKDOWN SP20 SERIES PUMP NOISE LEVELS 3000 RPM OPERATING SPEED PUMP DISPLACEMENT cc/REV PUMP DISPLACEMENT cc/REV SP20 SERIES PUMP NOISE LEVELS 1800 RPM OPERATING SPEED PUMP SOUND PRESSURE RATING (PSPR) A-WEIGHTED SOUND PRESSURE LEVEL (SPL. dBA at lm) PUMP SOUND PRESSURE RATING (PSPR) A-WEIGHTED SOUND PRESSURE LEVEL (SPL. dBA at lm)
