PRINCE HAND PUMP - Prince - #1

Text version of the page

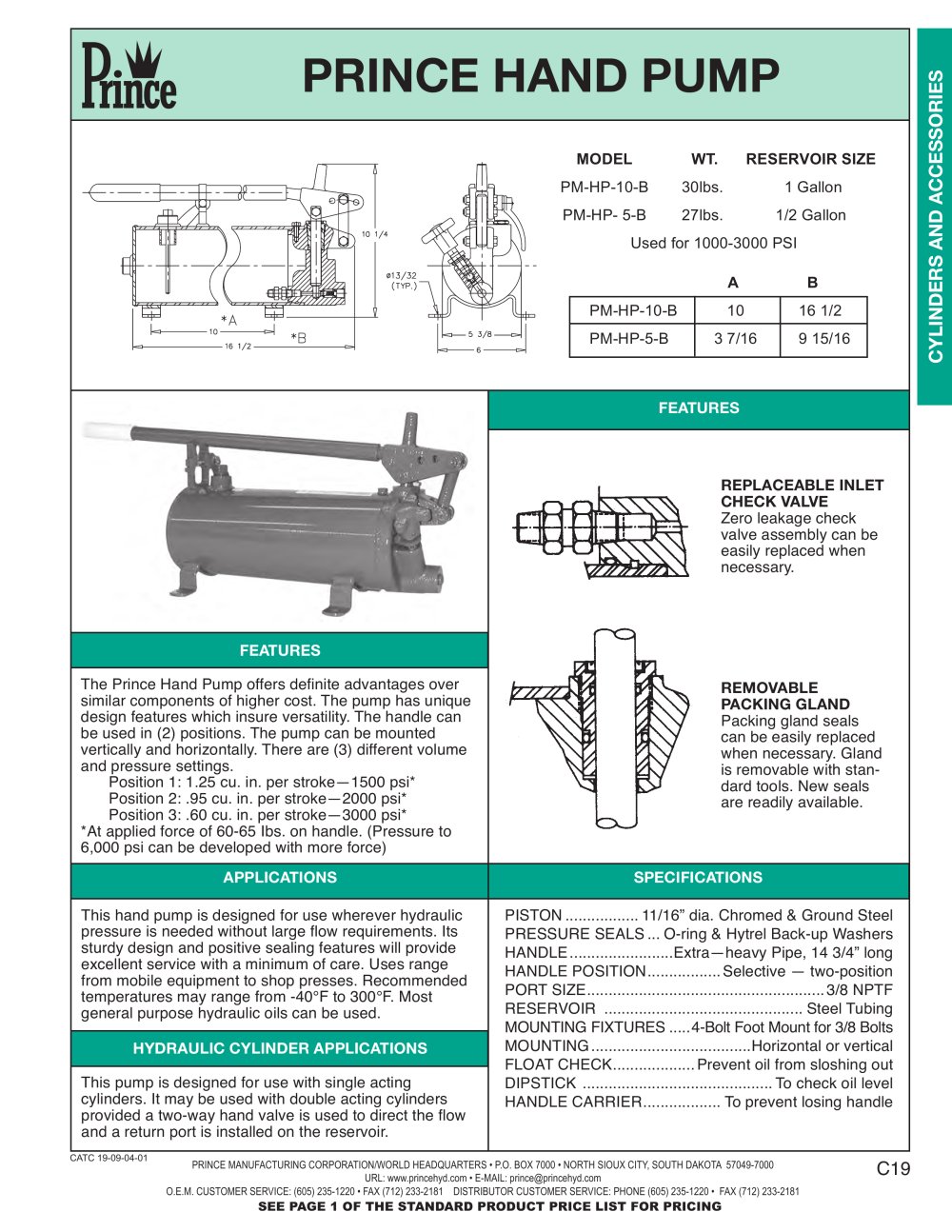

PRINCE MANUFACTURING CORPORATION/WORLD HEADQUARTERS • P.O. BOX 7000 • NORTH SIOUX CITY, SOUTH DAKOTA 57049-7000 URL: www.princehyd.com • E-MAIL: prince@princehyd.com O.E.M. CUSTOMER SERVICE: (605) 235-1220 • FAX (712) 233-2181 DISTRIBUTOR CUSTOMER SERVICE: PHONE (605) 235-1220 • FAX (712) 233-2181 CYLINDERS AND ACCESSORIES CATC 19-09-04-01 FEATURES PRINCE HAND PUMP REPLACEABLE INLET CHECK VALVE Zero leakage check valve assembly can be easily replaced when necessary. PISTON.................. 11/16” dia. Chromed & Ground Steel PRESSURE SEALS.... O-ring & Hytrel Back-up Washers HANDLE.........................Extra—heavy Pipe, 14 3/4” long HANDLE POSITION................. Selective — two-position PORT SIZE....................................................... 3/8 NPTF RESERVOIR ............................................... Steel Tubing MOUNTING FIXTURES......4-Bolt Foot Mount for 3/8 Bolts MOUNTING......................................Horizontal or vertical FLOAT CHECK................... Prevent oil from sloshing out DIPSTICK ............................................. To check oil level HANDLE CARRIER.................. To prevent losing handle MODEL WT. RESERVOIR SIZE PM-HP-10-B 30lbs. 1 Gallon PM-HP- 5-B 27lbs. 1/2 Gallon Used for 1000-3000 PSI A B PM-HP-10-B 10 16 1/2 PM-HP-5-B 3 7/16 9 15/16 REMOVABLE PACKING GLAND Packing gland seals can be easily replaced when necessary. Gland is removable with standard tools. New seals are readily available. The Prince Hand Pump offers definite advantages over similar components of higher cost. The pump has unique design features which insure versatility. The handle can be used in (2) positions. The pump can be mounted vertically and horizontally. There are (3) different volume and pressure settings. Position 1: 1.25 cu. in. per stroke—1500 psi* Position 2: .95 cu. in. per stroke—2000 psi* Position 3: .60 cu. in. per stroke—3000 psi* *At applied force of 60-65 Ibs. on handle. (Pressure to 6,000 psi can be developed with more force) FEATURES This pump is designed for use with single acting cylinders. It may be used with double acting cylinders provided a two-way hand valve is used to direct the flow and a return port is installed on the reservoir. HYDRAULIC CYLINDER APPLICATIONS This hand pump is designed for use wherever hydraulic pressure is needed without large flow requirements. Its sturdy design and positive sealing features will provide excellent service with a minimum of care. Uses range from mobile equipment to shop presses. Recommended temperatures may range from -40°F to 300°F. Most general purpose hydraulic oils can be used. APPLICATIONS SPECIFICATIONS C19 SEE PAGE 1 OF THE STANDARD PRODUCT PRICE LIST FOR PRICING
