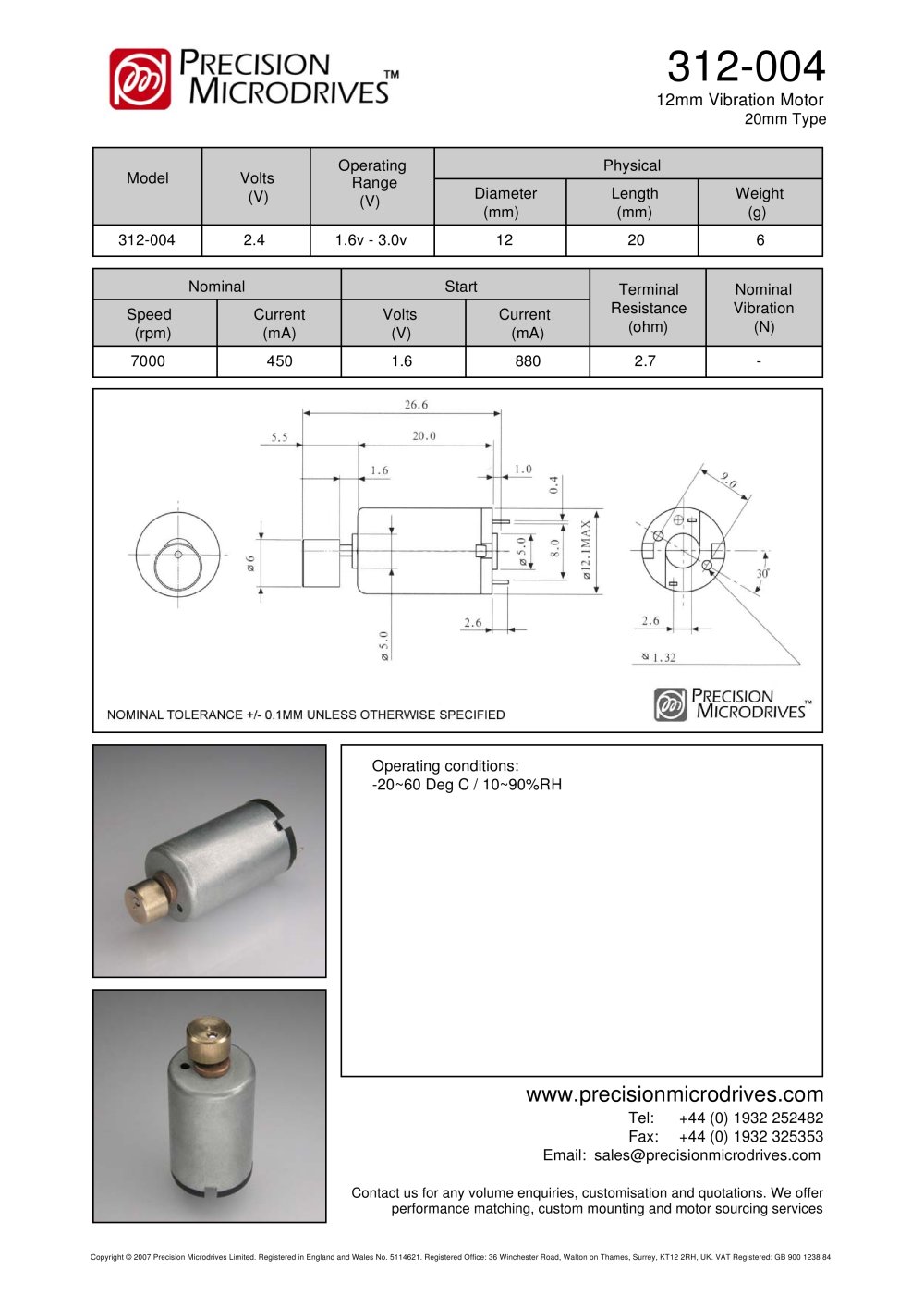

312-004

12mm Vibration Motor 20mm Type


Model	Volts (V)	Operating		Physical
Model		Range (V)	Diameter	Length	Weight
		Range (V)	(mm)	(mm)	(g)
312-004	2.4	1.6v - 3.0v	12	20	6


Nominal	Start	Terminal Resistance (ohm)	Nominal Vibration (N)
Speed Current (rpm) (mA)	Volts Current (V) (mA)	Terminal Resistance (ohm)	Nominal Vibration (N)
7000 450	1.6 880	2.7	-

Operating conditions: -20~60 Deg C / 10~90%RH

www.precisionmicrodrives.com

Tel: +44 (0) 1932 252482 Fax: +44 (0) 1932 325353 Email: sales@precisionmicrodrives.com

Contact us for any volume enquiries, customisation and quotations. We offer performance matching, custom mounting and motor sourcing services
