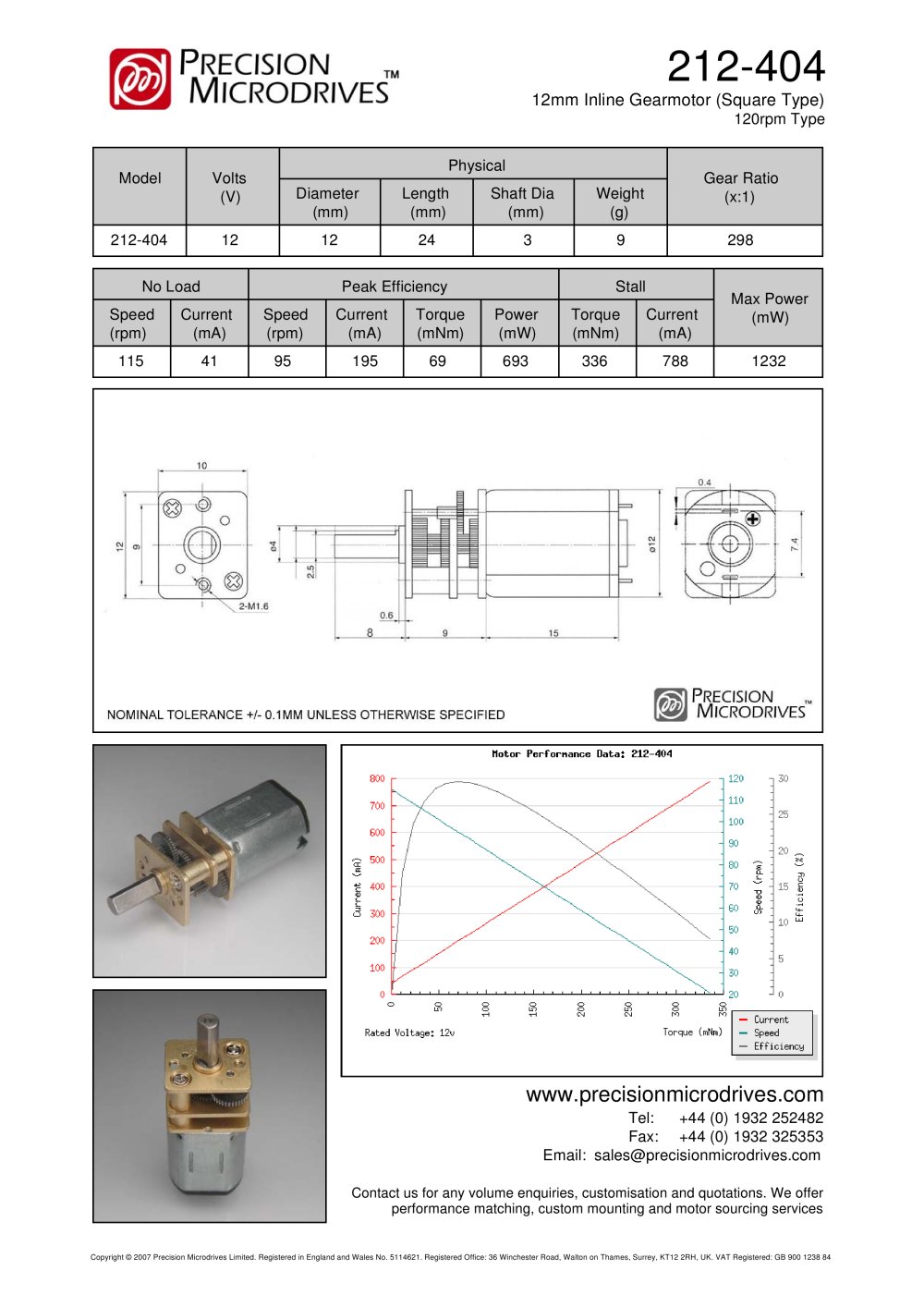

212-404
12mm Inline Gearmotor (Square Type)
120rpm Type
Model Volts (V)
Physical
Gear Ratio (x:1)
Diameter Length (mm) (mm)
Shaft Dia Weight
(mm) (g)
212-404 12
12 24
3 9
298
No Load
Peak Efficiency
Stall
Max Power (mW)
Speed Current (rpm) (mA)
Speed (rpm)
Current
(mA)
Torque (mNm)
Power
(mW)
Torque Current (mNm) (mA)
115 41
95
195
69
693
336 788
1232
www.precisionmicrodrives.com
Tel: +44 (0) 1932 252482 Fax: +44 (0) 1932 325353 Email: sales@precisionmicrodrives.com
Contact us for any volume enquiries, customisation and quotations. We offer performance matching, custom mounting and motor sourcing services
Copyright © 2007 Precision Microdrives Limited. Registered in England and Wales No. 5114621. Registered Office: 36 Winchester Road, Walton on Thames, Surrey, KT12 2RH, UK. VAT Registered: GB 900 1238 84
