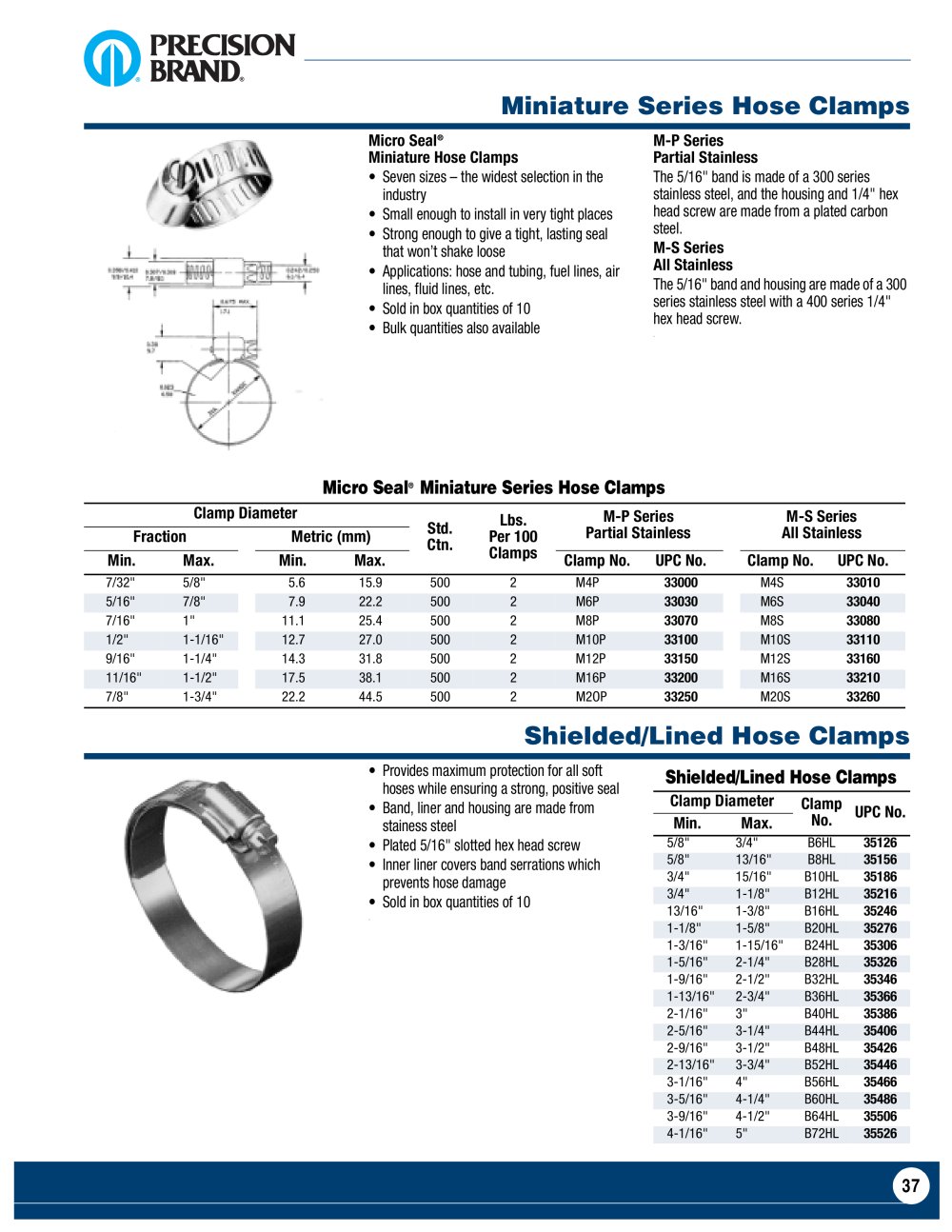

Miniature Series Hose Clamps
Micro Seal
®M-P Series Partial Stainless Miniature Hose Clamps •Seven sizes – the widest selection in the industry•Small enough to install in very tight places•Strong enough to give a tight, lasting seal that won’t shake loose•Applications: hose and tubing, fuel lines, air lines, fluid lines, etc.•Sold in box quantities of 10•Bulk quantities also available The 5/16" band is made of a 300 series stainless steel, and the housing and 1/4" hex head screw are made from a plated carbon steel. M-S Series All Stainless The 5/16" band and housing are made of a 300 series stainless steel with a 400 series 1/4" hex head screw.
.Micro Seal
®Miniature Series Hose Clamps
Clamp DiameterStd.Ctn.Lbs. Per 100 ClampsM-P SeriesPartial StainlessM-S SeriesAll StainlessFractionMetric (mm)Min.Max.Min.Max.Clamp No.UPC No.Clamp No.UPC No.
7/32" 5/8" 5.6 15.9 500 2 M4P 33000 M4S 33010 5/16" 7/8" 7.9 22.2 500 2 M6P 33030 M6S 33040 7/16" 1" 11.1 25.4 500 2 M8P 33070 M8S 33080 1/2" 1-1/16" 12.7 27.0 500 2 M10P 33100 M10S 33110 9/16" 1-1/4"14.3 31.8 500 2 M12P 33150 M12S 33160 11/16" 1-1/2" 17.5 38.1 500 2 M16P 33200 M16S 33210 7/8" 1-3/4"22.2 44.5 500 2 M2OP 33250 M20S 33260Shielded/Lined Hose Clamps
•Provides maximum protection for all soft hoses while ensuring a strong, positive seal•Band, liner and housing are made from stainess steel•Plated 5/16" slotted hex head screw •Inner liner covers band serrations which prevents hose damage•Sold in box quantities of 10
Shielded/Lined Hose Clamps
Clamp DiameterClampNo.UPC No.Min.Max.
5/8" 3/4" B6HL 35126 5/8" 13/16" B8HL 35156 3/4" 15/16" B10HL 35186 3/4" 1-1/8" B12HL 35216. 13/16" 1-3/8" B16HL 35246 1-1/8" 1-5/8" B20HL 35276 1-3/16" 1-15/16" B24HL 35306 1-5/16" 2-1/4" B28HL 35326 1-9/16" 2-1/2" B32HL 35346 1-13/16" 2-3/4" B36HL 35366 2-1/16" 3" B40HL 35386 2-5/16" 3-1/4" B44HL 35406 2-9/16" 3-1/2" B48HL 35426 2-13/16" 3-3/4" B52HL 35446 3-1/16" 4" B56HL 35466 3-5/16" 4-1/4" B60HL 35486 3-9/16" 4-1/2" B64HL 35506 4-1/16" 5" B72HL 35526
