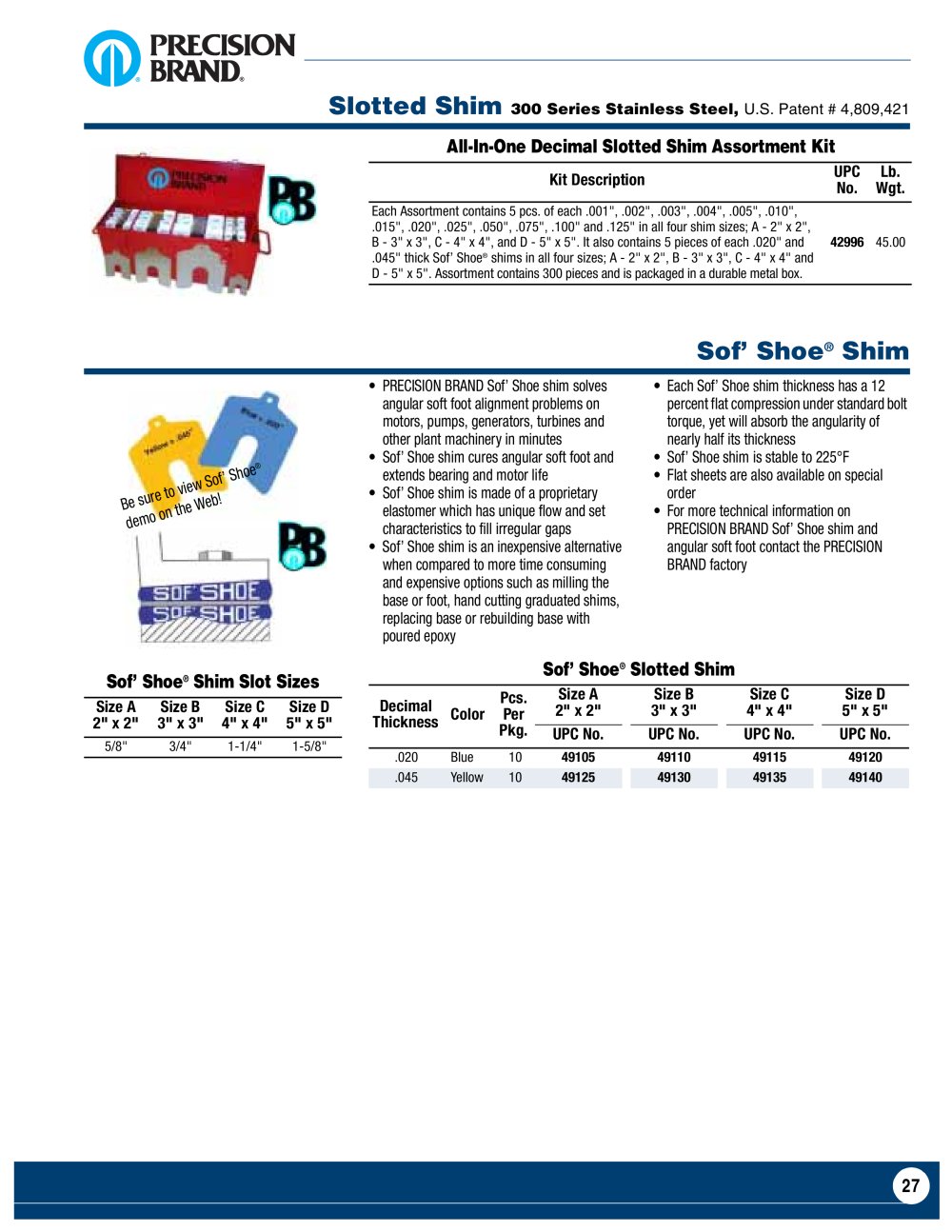

Slotted Shim

300 Series Stainless Steel, U.S. Patent # 4,809,421

All-In-One Decimal Slotted Shim Assortment Kit

Kit DescriptionUPC No.Lb. Wgt.

Each Assortment contains 5 pcs. of each .001", .002", .003", .004", .005", .010", .015", .020", .025", .050", .075", .100" and .125" in all four shim sizes; A - 2" x 2", B - 3" x 3", C - 4" x 4", and D - 5" x 5". It also contains 5 pieces of each .020" and .045" thick Sof’ Shoe 42996 45.00
® shims in all four sizes; A - 2" x 2", B - 3" x 3", C - 4" x 4" and D - 5" x 5". Assortment contains 300 pieces and is packaged in a durable metal box.

Sof’ Shoe

®

Shim

•PRECISION BRAND Sof’ Shoe shim solves angular soft foot alignment problems on motors, pumps, generators, turbines and other plant machinery in minutes•Sof’ Shoe shim cures angular soft foot and extends bearing and motor life•Sof’ Shoe shim is made of a proprietary elastomer which has unique flow and set characteristics to fill irregular gaps•Sof’ Shoe shim is an inexpensive alternative when compared to more time consuming and expensive options such as milling the base or foot, hand cutting graduated shims, replacing base or rebuilding base with poured epoxy •Each Sof’ Shoe shim thickness has a 12 percent flat compression under standard bolt torque, yet will absorb the angularity of nearly half its thickness•Sof’ Shoe shim is stable to 225°F •Flat sheets are also available on special order•For more technical information on PRECISION BRAND Sof’ Shoe shim and angular soft foot contact the PRECISION BRAND factory

®

BesuretoviewSof’Shoe demoontheWeb!

®

Sof’ Shoe

®

Shim Slot Sizes Sof’ Shoe Slotted Shim

Size A 2" x 2"Size B 3" x 3"Size C 4" x 4"Size D 5" x 5" DecimalThicknessColorPcs. Per Pkg.Size A2" x 2"Size B3" x 3"Size C4" x 4"Size D5" x 5"UPC No.UPC No.UPC No.UPC No.

5/8"3/4"1-1/4"1-5/8" .020Blue10 49105491104911549120 .045 Yellow 10 49125 49130 49135 49140

27
