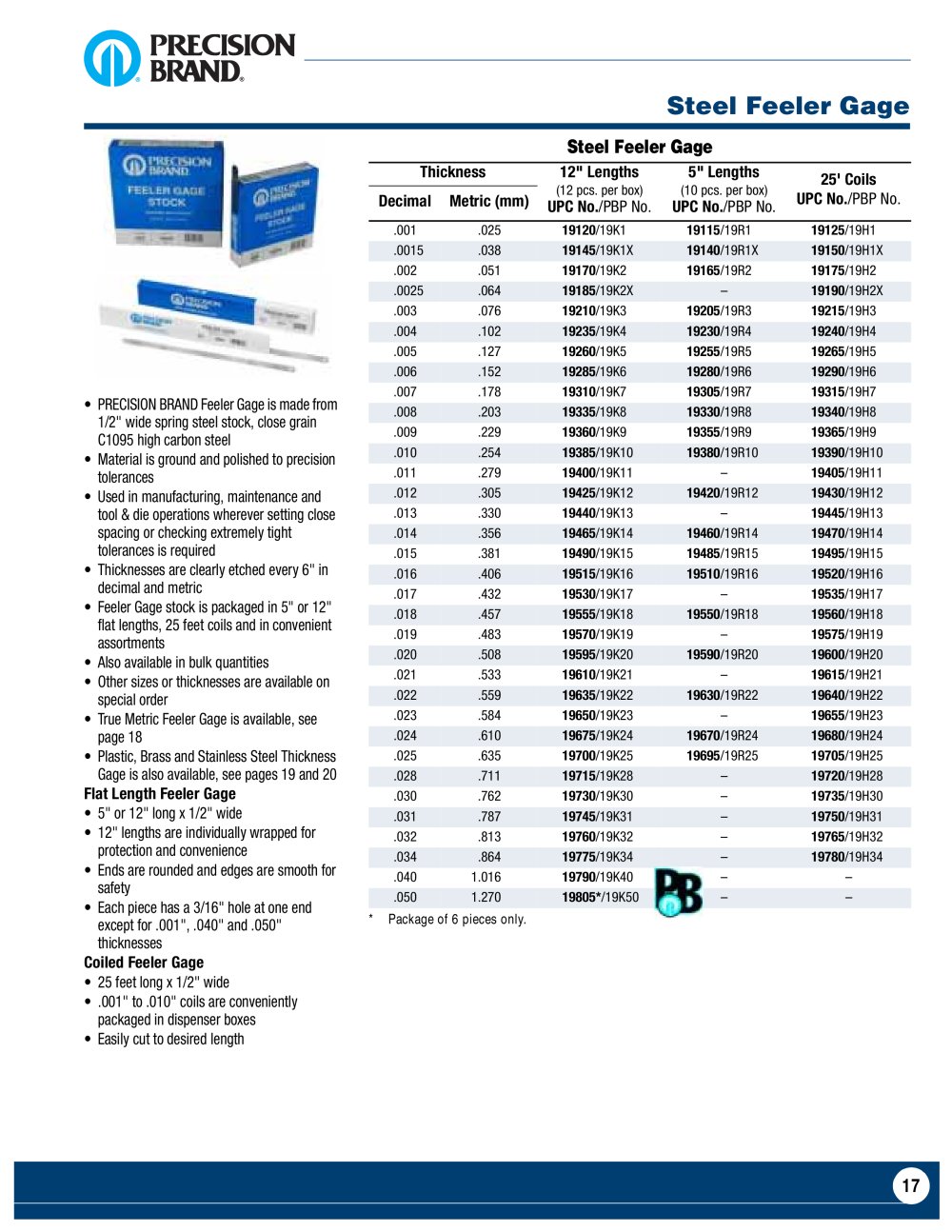

Steel Feeler Gage

Steel Feeler Gage

Thickness12" Lengths 5" Lengths Decimal Metric (mm)

(12 pcs. per box) (10 pcs. per box)

25' CoilsUPC No. UPC No. /PBP No. UPC No. /PBP No. /PBP No.

.001.025 19120 /19K1 19115 /19R1 19125 /19H1 .0015 .038 19145 /19K1X 19140 /19R1X 19150 /19H1X.002.051 19170 /19K2 19165 /19R2 19175 /19H2 .0025 .064 19185 /19K2X – 19190 /19H2X.003.076 19210 /19K3 19205 /19R3 19215 /19H3 .004 .102 19235 /19K4 19230 /19R4 19240 /19H4.005.127 19260 /19K5 19255 /19R5 19265 /19H5 .006 .152 19285 /19K6 19280 /19R6 19290 /19H6.007.178 19310 /19K7 19305 /19R7 19315 /19H7

•PRECISION BRAND Feeler Gage is made from 1/2" wide spring steel stock, close grain C1095 high carbon steel•Material is ground and polished to precision tolerances•Used in manufacturing, maintenance and tool & die operations wherever setting close spacing or checking extremely tight tolerances is required•Thicknesses are clearly etched every 6" in decimal and metric•Feeler Gage stock is packaged in 5" or 12" flat lengths, 25 feet coils and in convenient assortments•Also available in bulk quantities •Other sizes or thicknesses are available on special order•True Metric Feeler Gage is available, see page18•Plastic, Brass and Stainless Steel Thickness Gage is also available, see pages 19 and 20

.008 .203 19335 /19K8 19330 /19R8 19340 /19H8.009.229 19360 /19K9 19355 /19R9 19365 /19H9 .010 .254 19385 /19K10 19380 /19R10 19390 /19H10.011.279 19400 /19K11– 19405 /19H11 .012 .305 19425 /19K12 19420 /19R12 19430 /19H12.013.330 19440 /19K13– 19445 /19H13 .014 .356 19465 /19K14 19460 /19R14 19470 /19H14.015.381 19490 /19K15 19485 /19R15 19495 /19H15 .016 .406 19515 /19K16 19510 /19R16 19520 /19H16.017.432 19530 /19K17– 19535 /19H17 .018 .457 19555 /19K18 19550 /19R18 19560 /19H18.019.483 19570 /19K19– 19575 /19H19 .020 .508 19595 /19K20 19590 /19R20 19600 /19H20.021.533 19610 /19K21– 19615 /19H21 .022 .559 19635 /19K22 19630 /19R22 19640 /19H22.023.584 19650 /19K23– 19655 /19H23 .024 .610 19675 /19K24 19670 /19R24 19680 /19H24.025.635 19700 /19K25 19695 /19R25 19705 /19H25 .028 .711 19715 /19K28 – 19720 /19H28.030.762

Flat Length Feeler Gage

19730 /19K30– 19735 /19H30

•5" or 12" long x 1/2" wide•12" lengths are individually wrapped for protection and convenience•Ends are rounded and edges are smooth for safety•Each piece has a 3/16" hole at one end except for .001", .040" and .050" thicknesses

.031 .787 19745 /19K31 – 19750 /19H31.032.813 19760 /19K32– 19765 /19H32 .034 .864 19775 /19K34 – 19780 /19H34.0401.016 19790 /19K40–– .050 1.270 19805* /19K50 – – * Package of 6 pieces only.

Coiled Feeler Gage •25 feet long x 1/2" wide•.001" to .010" coils are conveniently packaged in dispenser boxes•Easily cut to desired length

17
