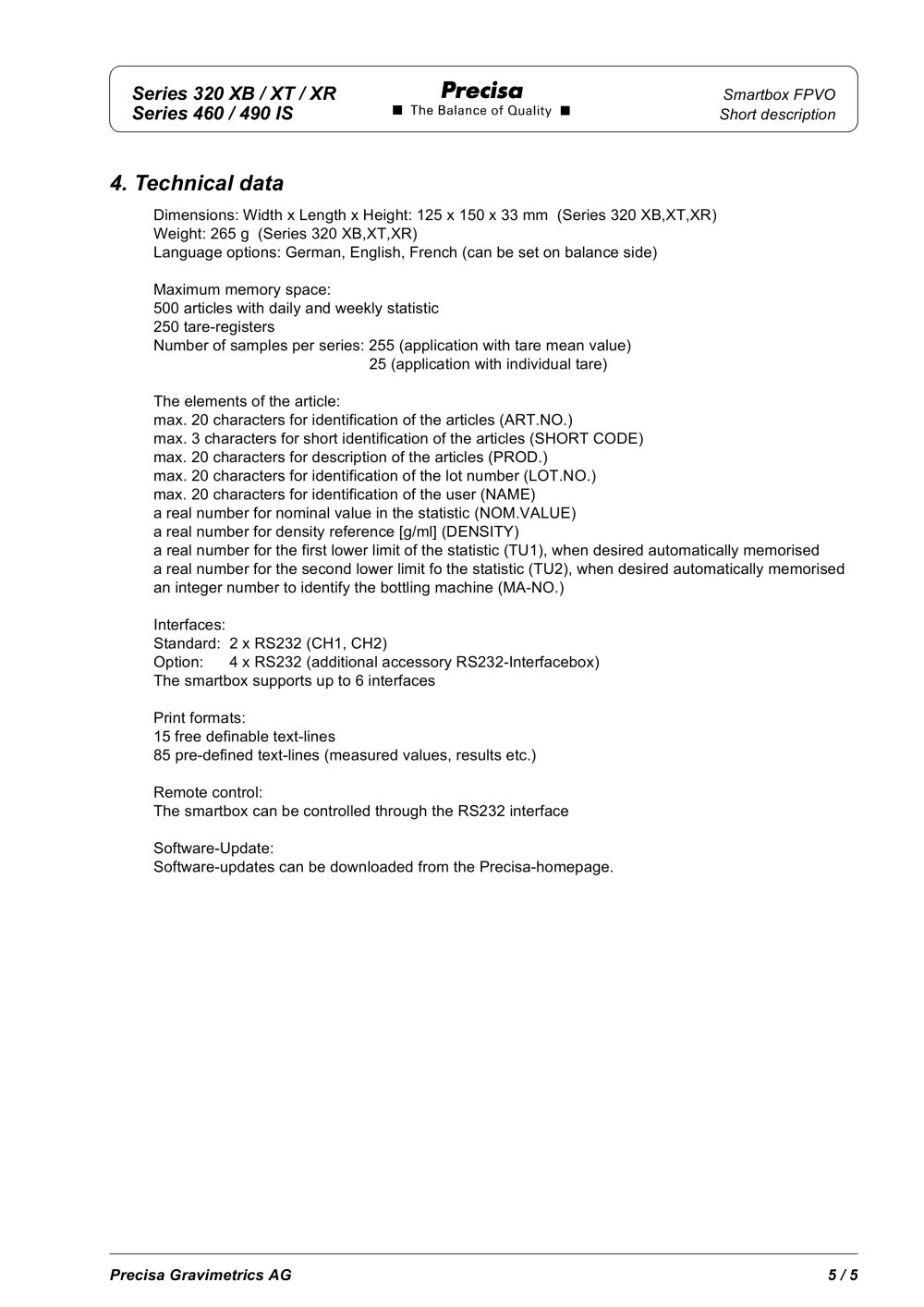

Smartbox FPVO: - Precisa Gravimetrics AG - #6

Dimensions: Width x Length x Height: 125 x150x 33 mm (Series 320 XB,XT,XR) Weight: 265 g (Series 320 XB,XT,XR)

Language options: German, English, French (can be set on balance side)

Maximum memory space:

500 articles with daily and weekly statistic

250 tare-registers

Number of samples per series: 255 (application with tare mean value)

25 (application with individual tare)

The elements of the article:

max. 20 characters for identification ofthe articles (ART.NO.)

max. 3 characters for short identification ofthe articles (SHORT CODE)

max. 20 characters for description of the articles (PROD.)

max. 20 characters for identification ofthe lot number (LOT.NO.)

max. 20 characters for identification ofthe user (NAME)

a real number for nominal value in the statistic (NOM.VALUE)

a real number for density reference [g/ml] (DENSITY)

a real number for the first lower limit ofthe statistic (TU1), when desired automatically memorised a real number for the second lower limit fo the statistic (TU2), when desired automatically memorised an integer number to identify the bottling machine (MA-NO.)

Interfaces:

Standard: 2 x RS232 (CH1, CH2)

Option: 4 x RS232 (additional accessory RS232-Interfacebox) The smartbox supports up to 6 interfaces

Print formats:

15 free definable text-lines

85 pre-defined text-lines (measured values, results etc.) Remote control:

The smartbox can be controlled through the RS232 interface Software-Update:

Software-updates can be downloaded from the Precisa-homepage.
