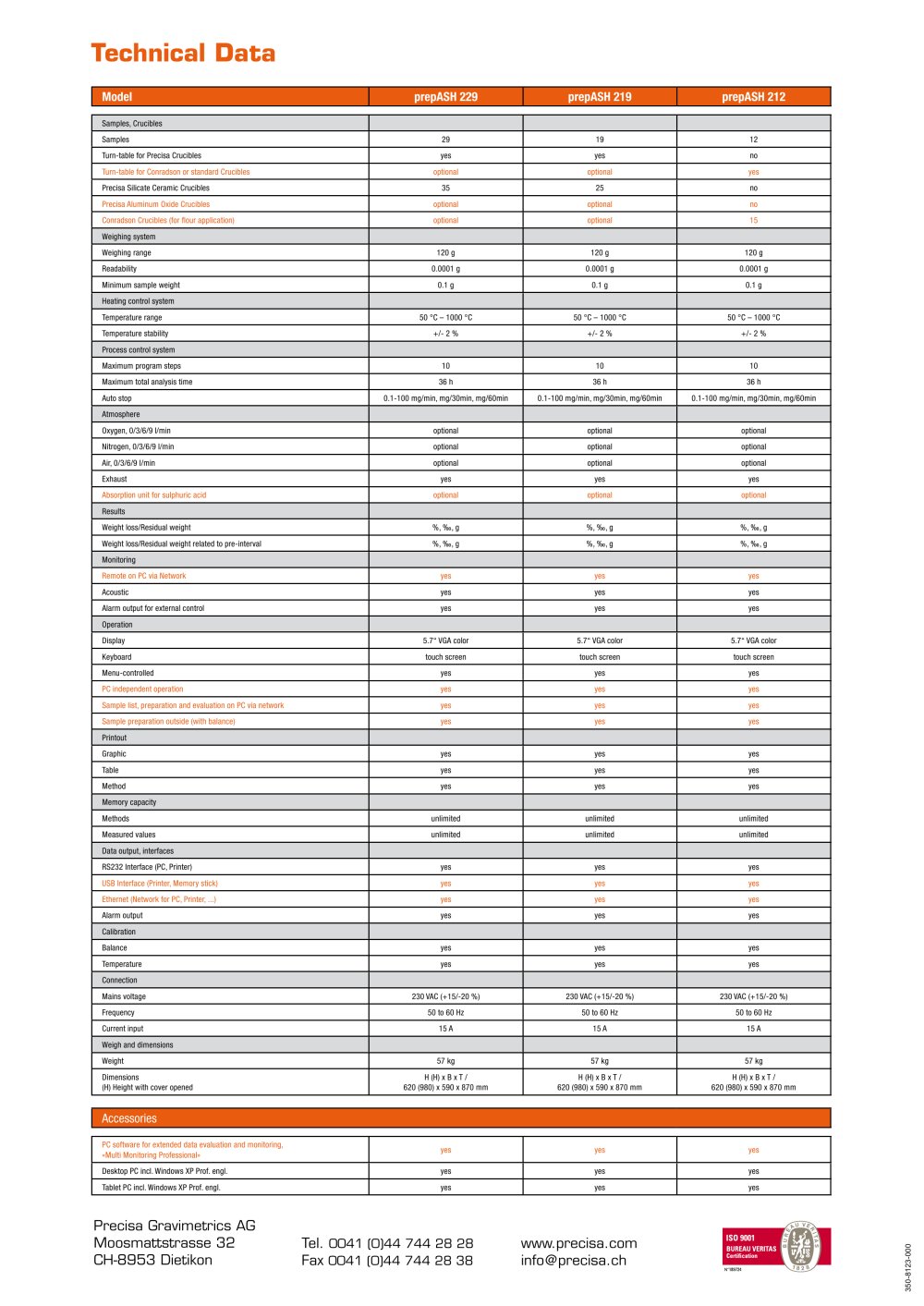

Untitled


Samples, Crucibles
Samples	29	19	12
Turn-table for Précisa Crucibles	yes	yes	no
Turn-table for Conradson or standard Crucibles	optional	optional
Precisa Silicate Ceramic Crucibles	35	25	no
Precisa Aluminum Oxide Crucibles	optional	optional
Conradson Crucibles (for flour application)	optional	optional
Weighing system
Weighing range	120 g	120 g	120 g
Readability	0.0001 g	0.0001 g	0.0001 g
Minimum sample weight	0.1 g	0.1 g	0.1 g
Heating control system
Temperature range	50 °C - 1000 °C	50 °C - 1000 °C	50 °C - 1000 °C
Temperature stability	+/- 2 %	+/- 2 %	+/- 2 %
Process control system
Maximum program steps	10	10	10
Maximum total analysis time	36 h	36 h	36 h
Auto stop	0.1-100 mg/min, mg/30min, mg/60min	0.1-100 mg/min, mg/30min, mg/60min	0.1-100 mg/min, mg/30min, mg/60min
Atmosphere
Oxygen, 0/3/6/9 l/min	optional	optional	optional
Nitrogen, 0/3/6/9 l/min	optional	optional	optional
Air, 0/3/6/9 l/min	optional	optional	optional
Exhaust	yes	yes	yes
Absorption unit for sulphuric acid	optional	optional
Results
Weight loss/Residual weight	%, %%, g	%, %%, g	%, %%, g
Weight loss/Residual weight related to pre-interval	%, %%, g	%, %%, g	%, %%, g
Monitoring
Remote on PC via Network	yes
Acoustic	yes	yes	yes
Alarm output for external control	yes	yes	yes
Operation
Display	5.7" VGA color	5.7" VGA color	5.7" VGA color
Keyboard	touch screen	touch screen	touch screen
Menu-controlled	yes	yes	yes
PC independent operation	yes	yes	yes
Sample list, preparation and evaluation on PC via network	yes
Sample preparation outside (with balance)	yes
Printout
Graphic	yes	yes	yes
Table	yes	yes	yes
Method	yes	yes	yes
Memory capacity
Methods	unlimited	unlimited	unlimited
Measured values	unlimited	unlimited	unlimited
Data output, interfaces
RS232 Interface (PC, Printer)	yes	yes	yes
USB Interface (Printer, Memory stick)	yes	yes	yes
Ethernet (Network for PC, Printer, ...)	yes
Alarm output	yes	yes	yes
Calibration
Balance	yes	yes	yes
Temperature	yes	yes	yes
Connection
Mains voltage	230 VAC (+15/-20 %)	230 VAC (+15/-20 %)	230 VAC (+15/-20 %)
Frequency	50 to 60 Hz	50 to 60 Hz	50 to 60 Hz
Current input	15 A	15 A	15 A
Weigh and dimensions
Weight	57 kg	57 kg	57 kg
Dimensions (H) Height with cover opened	H (H) x B x T / 620 (980) x 590 x 870 mm	H (H) x B x T / 620 (980) x 590 x 870 mm	H (H) x B x T / 620 (980) x 590 x 870 mm

Accessories

PC software for extended data evaluation and monitoring, «Multi Monitoring Professional»

I Desktop PC incl. Windows XP Prof. engl.

yes

| Tablet PC incl. Windows XP Prof. engl

yes

Précisa Gravimétries AG Moosmattstrasse 32 CH-8953 Dietikon

Tel. 0041 (0)44 744 28 28 Fax 0041 (0)44 744 28 38

www.precisa.com info@precisa.ch
