Hallo SB-10 Single Beam Spectrophotometer
2Pages

{{requestButtons}}

Catalog excerpts

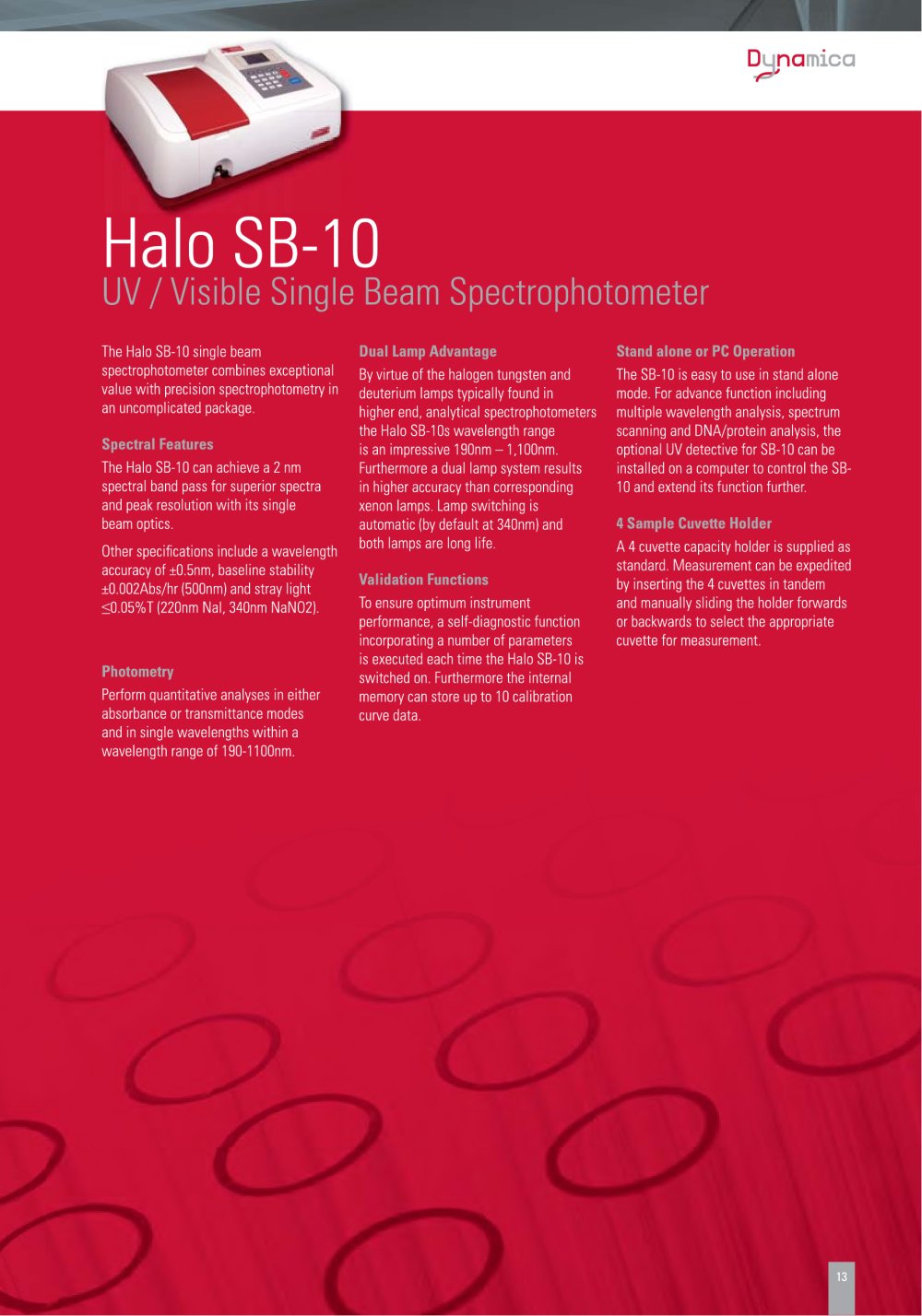

Hallo SB-10 Single Beam Spectrophotometer - 1

UV / Visible Single Beam Spectrophotometer The Halo SB-10 single beam spectrophotometer combines exceptional value with prcision spectrophotometry in an uncomplicated package. Spectral Features The Halo SB-10 can achieve a 2 nm spectral band pass for superior spectra and peak resolution with its single beam optics. Other spcifications include a wavelength accuracy of ±0.5nm, baseline stability ±0.002Abs/hr (500nm) and stray light <0.05%T (220nm Nal, 340nm NaN02). Dual Lamp Advantage By virtue of the halogen tungsten and deuterium lamps typically found in higher end, analytical spectrophotometers the Halo SB-IOs wavelength range is an impressive 190nm - 1,100nm. Furthermore a dual lamp System results in higher accuracy than corresponding x驩non lamps. Lamp switching is automatic {by default at 340nm| and both lamps are long life. Validation Functions To ensure optimum instrument performance, a self-diagnostic function incorporating a number of parameters is executed each time the Halo SB-10 is switched on. Furthermore the internai memory can store up to 10 calibration curve data. Stand alone or PC Opration The SB-10 is easy to use in stand alone mode. For advance function including multiple wavelength analysis, spectrum scanning and DNA/protein analysis, the optional UV dtective for SB-10 can be install驩e! on a computer to contra the SB-10 and extend its function further. 4 Sample Cuvette Holder A 4 cuvette capacity holder is supplied as standard. Measurement can be expedited by inserting the 4 cuvettes in tandem and manually sliding the holder forwards or backwards to select the appropriate cuvette for measurement. Photomatry Perform quantitative analyses in either absorbance or transmittance modes and in single wavelengths within a wavelength range of 190-1100nm.

Open the catalog to page 1
Hallo SB-10 Single Beam Spectrophotometer - 2

14 HALO SB-10 SPECIFICATIONS Optics Single Beam Principle Wavelength Range 190nm -1,100 nm Spectral Bandwidth 2nm Measurement Modes Abs, %T, E(S) Stray Light <0.05% (220nm NaI, 340nm NaNO2) Wavelength Accuracy ±0.5nm Photometric Range Absorbance: -3 to +3 %T: 0% to 300% Baseline Stability ±0.002 Abs/hr (500nm) Light Source Tungsten-Halogen and Deuterium Lamps Light Source Switching Automatic switching at 340nm Display Back-lit LCD 94(W) x 70(H) mm Dimensions 370(W) x 550(D) x 265(H) mm Net Weight 20Kg Gross Weight 25Kg Power Requirements 220 V selectable, 50/60Hz SB-10 Ordering Information...

Open the catalog to page 2
