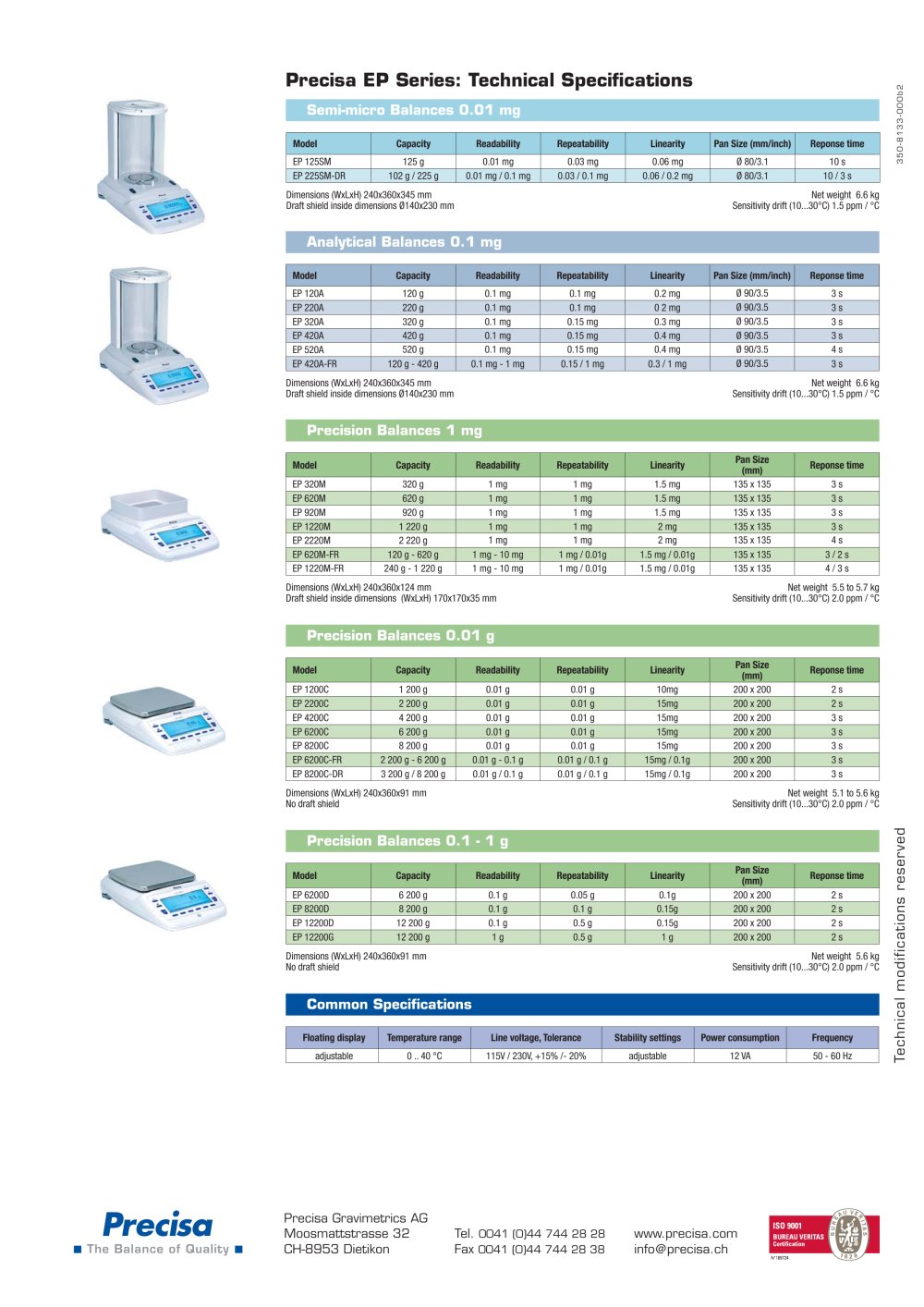

Precisa Gravimetrics AG Moosmattstrasse 32 CH-8953 Dietikon Tel. 0041 (0)44 744 28 28 Fax 0041 (0)44 744 28 38 www.precisa.com info@precisa.ch Precisa EP Series: Technical Specifications Semi-micro Balances 0.01 mg Model Capacity Readability Repeatability Linearity Pan Size (mm/inch) Reponse time EP 125SM 125 g 0.01 mg 0.03 mg 0.06 mg Ø 80/3.1 10 s EP 225SM-DR 102 g / 225 g 0.01 mg / 0.1 mg 0.03 / 0.1 mg 0.06 / 0.2 mg Ø 80/3.1 10 / 3 s Dimensions (WxLxH) 240x360x345 mm Net weight 6.6 kg Draft shield inside dimensions Ø140x230 mm Sensitivity drift (10...30°C) 1.5 ppm / °C Analytical Balances 0.1 mg Model Capacity Readability Repeatability Linearity Pan Size (mm/inch) Reponse time EP 120A 120 g 0.1 mg 0.1 mg 0.2 mg Ø 90/3.5 3 s EP 220A 220 g 0.1 mg 0.1 mg 0 2 mg Ø 90/3.5 3 s EP 320A 320 g 0.1 mg 0.15 mg 0.3 mg Ø 90/3.5 3 s EP 420A 420 g 0.1 mg 0.15 mg 0.4 mg Ø 90/3.5 3 s EP 520A 520 g 0.1 mg 0.15 mg 0.4 mg Ø 90/3.5 4 s EP 420A-FR 120 g - 420 g 0.1 mg - 1 mg 0.15 / 1 mg 0.3 / 1 mg Ø 90/3.5 3 s Dimensions (WxLxH) 240x360x345 mm Net weight 6.6 kg Draft shield inside dimensions Ø140x230 mm Sensitivity drift (10...30°C) 1.5 ppm / °C Precision Balances 1 mg Model Capacity Readability Repeatability Linearity Pan Size (mm) Reponse time EP 320M 320 g 1 mg 1 mg 1.5 mg 135 x 135 3 s EP 620M 620 g 1 mg 1 mg 1.5 mg 135 x 135 3 s EP 920M 920 g 1 mg 1 mg 1.5 mg 135 x 135 3 s EP 1220M 1 220 g 1 mg 1 mg 2 mg 135 x 135 3 s EP 2220M 2 220 g 1 mg 1 mg 2 mg 135 x 135 4 s EP 620M-FR 120 g - 620 g 1 mg - 10 mg 1 mg / 0.01g 1.5 mg / 0.01g 135 x 135 3 / 2 s EP 1220M-FR 240 g - 1 220 g 1 mg - 10 mg 1 mg / 0.01g 1.5 mg / 0.01g 135 x 135 4 / 3 s Dimensions (WxLxH) 240x360x124 mm Net weight 5.5 to 5.7 kg Draft shield inside dimensions (WxLxH) 170x170x35 mm Sensitivity drift (10...30°C) 2.0 ppm / °C Model Capacity Readability Repeatability Linearity Pan Size (mm) Reponse time EP 1200C 1 200 g 0.01 g 0.01 g 10mg 200 x 200 2 s EP 2200C 2 200 g 0.01 g 0.01 g 15mg 200 x 200 2 s EP 4200C 4 200 g 0.01 g 0.01 g 15mg 200 x 200 3 s EP 6200C 6 200 g 0.01 g 0.01 g 15mg 200 x 200 3 s EP 8200C 8 200 g 0.01 g 0.01 g 15mg 200 x 200 3 s EP 6200C-FR 2 200 g - 6 200 g 0.01 g - 0.1 g 0.01 g / 0.1 g 15mg / 0.1g 200 x 200 3 s EP 8200C-DR 3 200 g / 8 200 g 0.01 g / 0.1 g 0.01 g / 0.1 g 15mg / 0.1g 200 x 200 3 s Dimensions (WxLxH) 240x360x91 mm Net weight 5.1 to 5.6 kg No draft shield Sensitivity drift (10...30°C) 2.0 ppm / °C Precision Balances 0.01 g Precision Balances 0.1 - 1 g Model Capacity Readability Repeatability Linearity Pan Size (mm) Reponse time EP 6200D 6 200 g 0.1 g 0.05 g 0.1g 200 x 200 2 s EP 8200D 8 200 g 0.1 g 0.1 g 0.15g 200 x 200 2 s EP 12200D 12 200 g 0.1 g 0.5 g 0.15g 200 x 200 2 s EP 12200G 12 200 g 1 g 0.5 g 1 g 200 x 200 2 s Dimensions (WxLxH) 240x360x91 mm Net weight 5.6 kg No draft shield Sensitivity drift (10...30°C) 2.0 ppm / °C Floating display Temperature range Line voltage, Tolerance Stability settings Power consumption Frequency adjustable 0 .. 40 °C 115V / 230V, +15% /- 20% adjustable 12 VA 50 - 60 Hz Common Specifications Technical modifications reserved 350-8133-000b2
