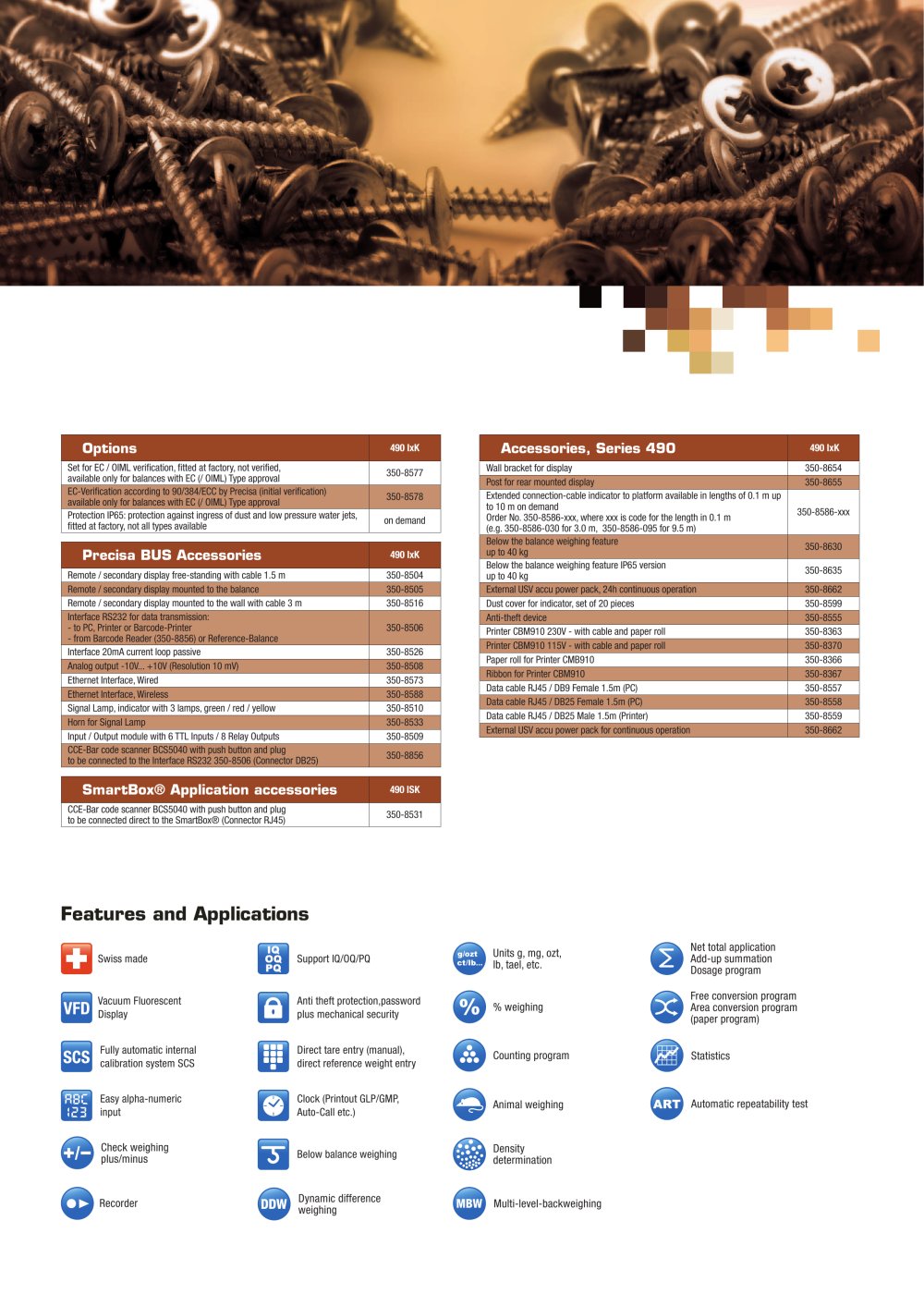

Catalogue - 490K Series Scales: - Precisa Gravimetrics AG - (Version JPG)

See other catalogues for Precisa Gravimetrics AG

Compact scale, Moisture analyzer, Microplate reader, Laboratory scale, Centrifuge

Text version of the page


	Options
	Set for EC / OIML verification, fitted at factory, not verified, available only for balances with EC (/ OIML) Type approval	350-8577
	EC-Verification according to 90/384/ECC by Precisa (initial verification) available only for balances with EC (/ OIML) Type approval	350-8578
	Protection IP65: protection against ingress of dust and low pressure water jets, fitted at factory, not all types available	on demand

	Precisa BUS Accessories
	Remote / secondary display free-standing with cable 1.5 m	350-8504
		350-8505
	Remote / secondary display mounted to the wall with cable 3 m	350-8516
	- to PC, Printer or Barcode-Printer - from Barcode Reader (350-8856) or Reference-Balance	350-8506
	Interface 20mA current loop passive	350-8526
	Analog output -10V... +10V (Resolution 10 mV)	350-8508
	Ethernet Interface, Wired	350-8573
	Ethernet Interface, Wireless	350-8588
	Signal Lamp, indicator with 3 lamps, green / red / yellow	350-8510
	Horn for Signal Lamp	350-8533
	Input / Output module with 6 TTL Inputs / 8 Relay Outputs	350-8509
	CCE-Bar code scanner BCS5040 with push button and plug to be connected to the Interface RS232 350-8506 (Connector DB25)	350-8856


	Accessories, Series 490	490 IxK
	Wall bracket for display	350-8654
	Post for rear mounted display	350-8655
	Extended connection-cable indicator to platform available in lengths of 0.1 m up to 10 m on demand Order No. 350-8586-xxx, where xxx is code for the length in 0.1 m (e.g. 350-8586-030 for 3.0 m, 350-8586-095 for 9.5 m)	350-8586-xxx
	Below the balance weighing feature up to 40 kg	350-8630
	Below the balance weighing feature IP65 version up to 40 kg	350-8635
	External USV accu power pack, 24h continuous operation	350-8662
	Dust cover for indicator, set of 20 pieces	350-8599
	Anti-theft device	350-8555
	Printer CBM910 230V - with cable and paper roll	350-8363
	Printer CBM910 115V - with cable and paper roll	350-8370
	Paper roll for Printer CMB910	350-8366
	Ribbon for Printer CBM910	350-8367
	Data cable RJ45 / DB9 Female 1.5m (PC)	350-8557
	Data cable RJ45 / DB25 Female 1.5m (PC)	350-8558
	Data cable RJ45 / DB25 Male 1.5m (Printer)	350-8559
	External USV accu power pack for continuous operation	350-8662


	SmartBox® Application accessories	490ISK
	CCE-Bar code scanner BCS5040 with push button and plug to be connected direct to the SmartBox® (Connector RJ45)	350-8531

Features and Applications

Net total application Add-up summation Dosage program

Free conversion program Area conversion program (paper program)

Units g, mg, ozt, lb, tael, etc.

Swiss made

Support IQ/OQ/PQ

Vacuum Fluorescent

Anti theft protection,password plus mechanical security

% weighing

Display

Fully automatic internal calibration system SCS

Direct tare entry (manual), direct reference weight entry

Counting program

Statistics

_VJ Clock (Printout GLP/GMP Auto-Call etc.)

Easy alpha-numeric input

Automatic repeatability test

Animal weighing

Check weighing plus/minus

Density determination

Below balance weighing

Dynamic difference weighing

Recorder

Multi-level-backweighing
