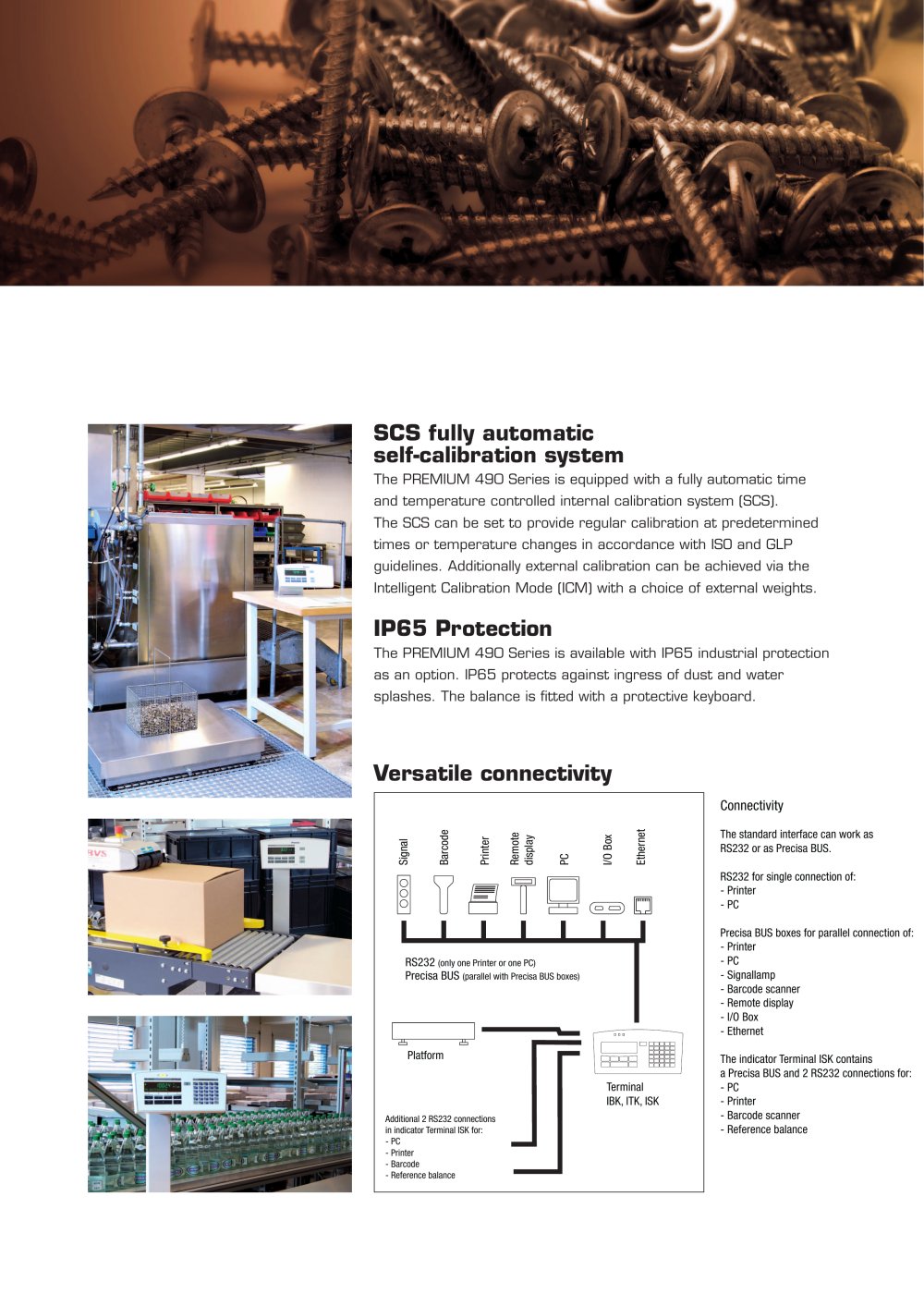

SCS fully automaticself-calibration system

The PREMIUM 490 Series is equipped with a fully automatic timeand temperature controlled internal calibration system (SCS). The SCS can be set to provide regular calibration at predetermined times or temperature changes in accordance with ISO and GLP guidelines. Additionally external calibration can be achieved via the Intelligent Calibration Mode (ICM) with a choice of external weights.

IP65 Protection

The PREMIUM 490 Series is available with IP65 industrial protection as an option. IP65 protects against ingress of dust and water splashes. The balance is fitted with a protective keyboard.

Versatile connectivity

Connectivity

The standard interface can work as RS232 or as Precisa BUS.RS232 for single connection of:- Printer- PCPrecisa BUS boxes for parallel connection of:- Printer - PC- Signallamp- Barcode scanner - Remote display- I/O Box- EthernetThe indicator Terminal ISK containsa Precisa BUS and 2 RS232 connections for:- PC- Printer - Barcode scanner- Reference balance
SignalBarcodePrinterRemote displayPCI/O BoxEthernet RS232
(only one Printer or one PC) Precisa BUS
(parallel with Precisa BUS boxes) Platform Terminal IBK, ITK, ISK
Additional 2 RS232 connections in indicator Terminal ISK for: - PC - Printer - Barcode - Reference balance
