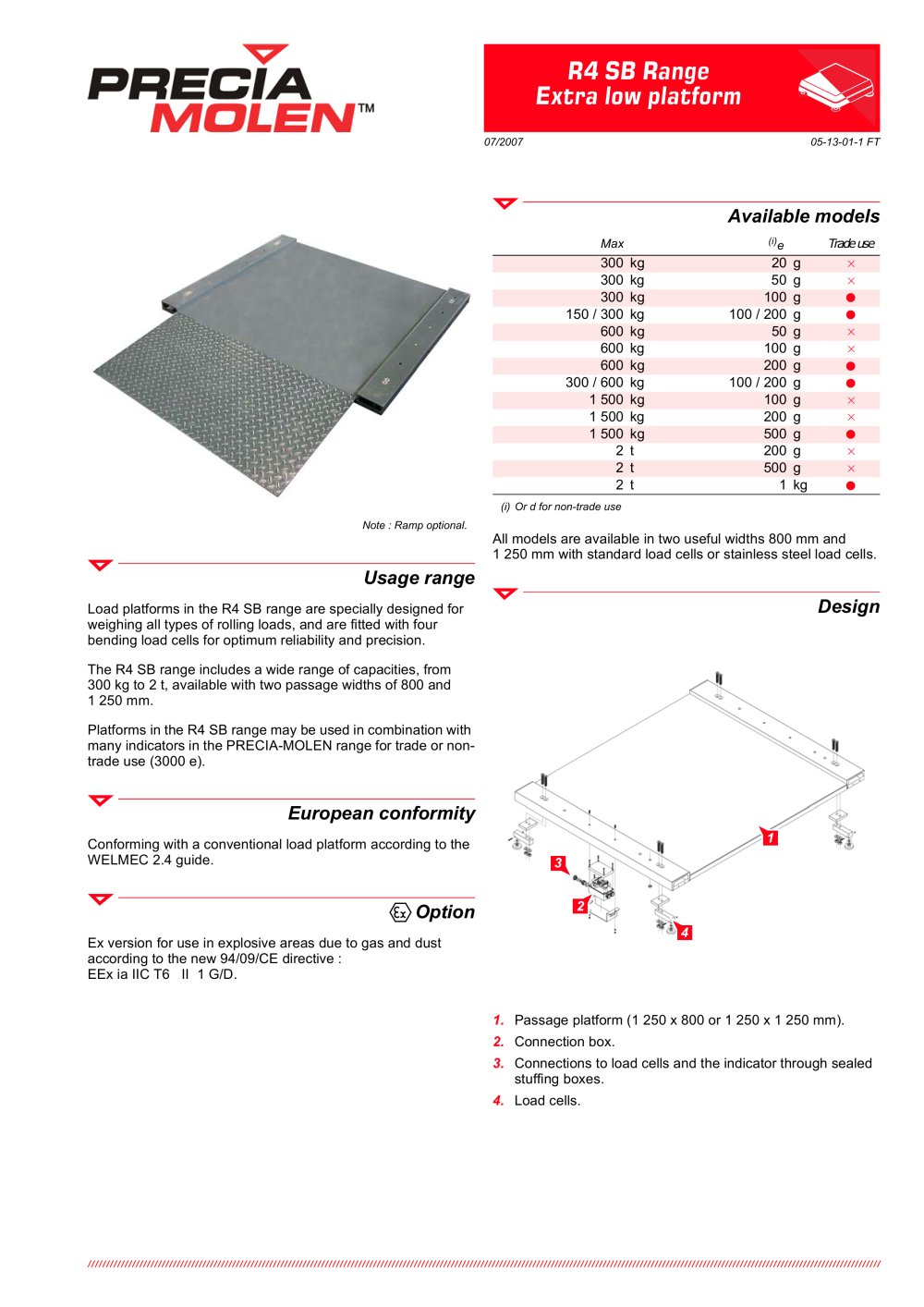

// / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / / // / / / // / / // / / Usage range Load platforms in the R4 SB range are specially designed for weighing all types of rolling loads, and are fitted with four bending load cells for optimum reliability and precision. The R4 SB range includes a wide range of capacities, from 300 kg to 2 t, available with two passage widths of 800 and 1 250 mm. Platforms in the R4 SB range may be used in combination with many indicators in the PRECIA-MOLEN range for trade or nontrade use (3000 e). European conformity Conforming with a conventional load platform according to the WELMEC 2.4 guide. ....Option Ex version for use in explosive areas due to gas and dust according to the new 94/09/CE directive : EEx ia IIC T6 II 1 G/D. Available models All models are available in two useful widths 800 mm and 1 250 mm with standard load cells or stainless steel load cells. Design 1. Passage platform (1 250 x 800 or 1 250 x 1 250 mm). 2. Connection box. 3. Connections to load cells and the indicator through sealed stuffing boxes. 4. Load cells. Note : Ramp optional. Max (i)e (i) Or d for non-trade use Trade use 300 kg 20 g .. 300 kg 50 g .. 300 kg 100 g .. 150 / 300 kg 100 / 200 g .. 600 kg 50 g .. 600 kg 100 g .. 600 kg 200 g .. 300 / 600 kg 100 / 200 g .. 1 500 kg 100 g .. 1 500 kg 200 g .. 1 500 kg 500 g .. 2 t 200 g .. 2 t 500 g .. 2 t 1 kg .. 4 2 1 3 R4 SB Range Extra low platform 07/2007 05-13-01-1 FT
