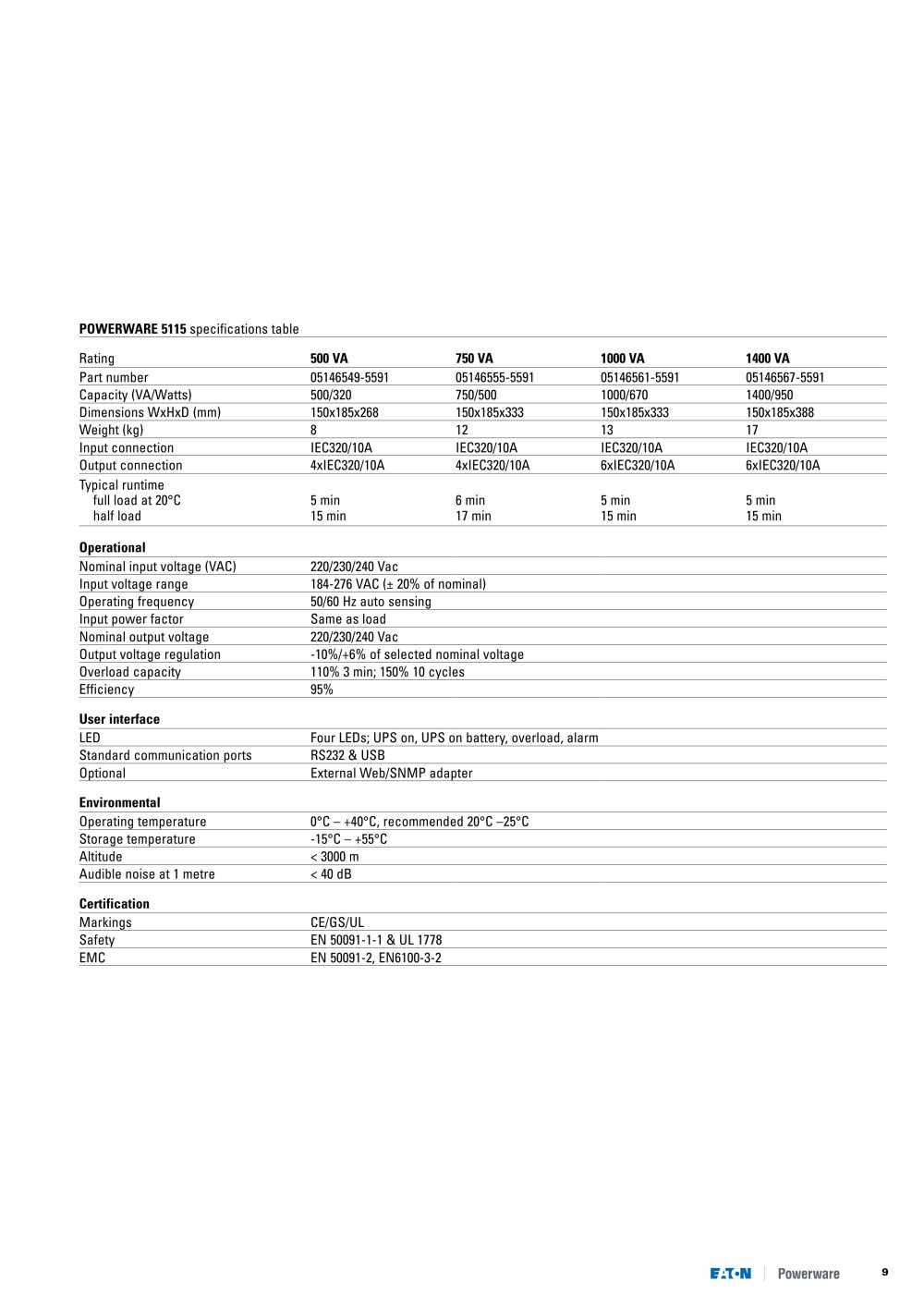

POWERWARE 5115 specifications table


Rating	500 VA 750 VA	1000 VA	1400 VA
Part number	05146549-5591 05146555-5591	05146561-5591	05146567-5591
Capacity (VA/Watts)	500/320 750/500	1000/670	1400/950
Dimensions WxHxD (mm)	150x185x268 150x185x333	150x185x333	150x185x388
Weight (kg)	8 12	13	17
Input connection	IEC320/10A IEC320/10A	IEC320/10A	IEC320/10A
Output connection	4xIEC320/10A 4xIEC320/10A	6xIEC320/10A	6xIEC320/10A
Typical runtime full load at 20°C half load	5 min 6 min 15 min 17 min	5 min 15 min	5 min 15 min
Operational
Nominal input voltage (VAC)	220/230/240 Vac
Input voltage range	184-276 VAC (± 20% of nominal)
Operating frequency	50/60 Hz auto sensing
Input power factor	Same as load
Nominal output voltage	220/230/240 Vac
Output voltage regulation	-10%/+6% of selected nominal voltage
Overload capacity	110% 3 min; 150% 10 cycles
Efficiency	95%
User interface
LED	Four LEDs; UPS on, UPS on battery, overload, alarm
Standard communication ports	RS232 & USB
Optional	External Web/SNMP adapter
Environmental
Operating temperature	0°C - +40°C, recommended 20°C -25°C
Storage temperature	-15°C - +55°C
Altitude	< 3000 m
Audible noise at 1 metre	< 40 dB
Certification
Markings	CE/GS/UL
Safety	EN 50091-1-1 & UL 1778
EMC	EN 50091-2, EN6100-3-2
