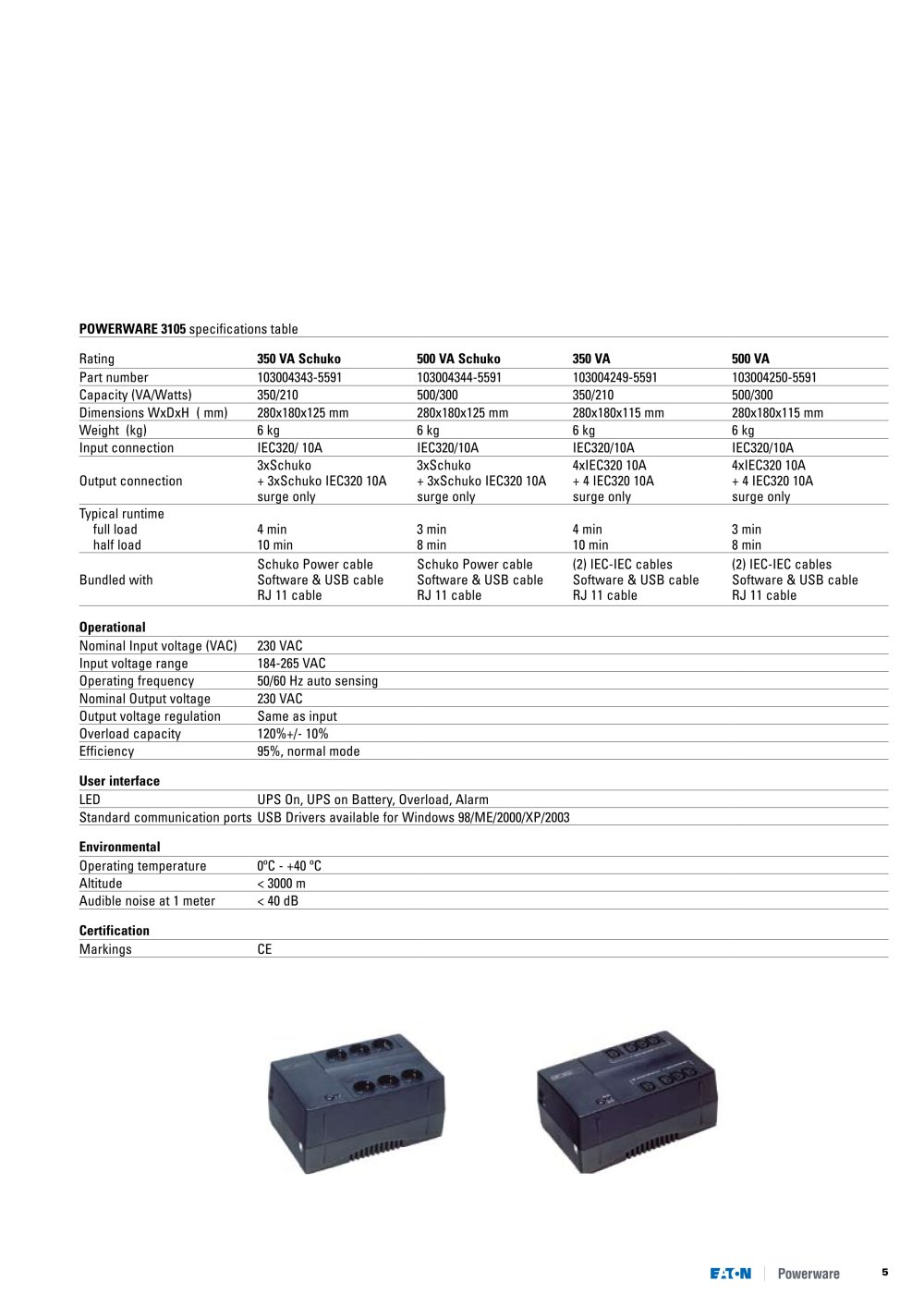

POWERWARE 3105 specifications table


Rating	350 VA Schuko	500 VA Schuko	350 VA	500 VA
Part number	103004343-5591	103004344-5591	103004249-5591	103004250-5591
Capacity (VA/Watts)	350/210	500/300	350/210	500/300
Dimensions WxDxH ( mm)	280x180x125 mm	280x180x125 mm	280x180x115 mm	280x180x115 mm
Weight (kg)	6 kg	6 kg	6 kg	6 kg
Input connection	IEC320/ 10A	IEC320/10A	IEC320/10A	IEC320/10A
	3xSchuko	3xSchuko	4xIEC320 10A	4xIEC320 10A
Output connection	+ 3xSchuko IEC320 10A	+ 3xSchuko IEC320 10A	+ 4 IEC320 10A	+4IEC32010A
	surge only	surge only	surge only	surge only
Typical runtime
full load	4 min	3 min	4 min	3 min
half load	10 min	8 min	10 min	8 min
	Schuko Power cable	Schuko Power cable	(2) IEC-IEC cables	(2) IEC-IEC cables
Bundled with	Software & USB cable	Software & USB cable	Software & USB cable	Software & USB cable
	RJ 11 cable	RJ 11 cable	RJ 11 cable	RJ 11 cable
Operational
Nominal Input voltage (VAC)	230 VAC
Input voltage range	184-265 VAC
Operating frequency	50/60 Hz auto sensing
Nominal Output voltage	230 VAC
Output voltage regulation	Same as input
Overload capacity	120%+/- 10%
Efficiency	95%, normal mode
User interface
LED	UPS On, UPS on Battery, Overload, Alarm
Standard communication ports USB Drivers available for Windows 98/ME/2000/XP/2003
Environmental
Operating temperature	0°C - +40 °C
Altitude	< 3000 m
Audible noise at 1 meter	< 40 dB
Certification
Markings	CE
