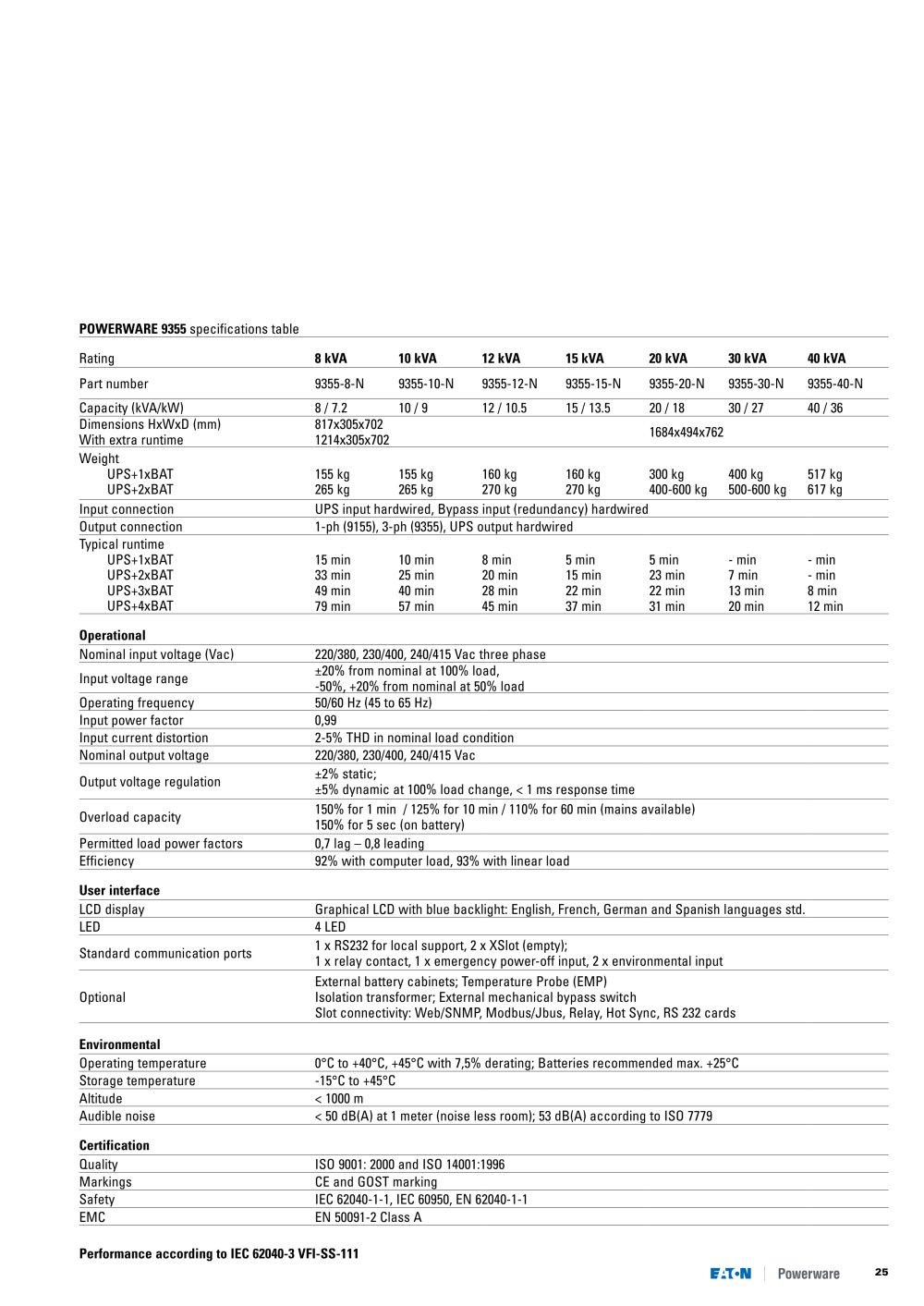

Operational Nominal input voltage (Vac)220/380, 230/400, 240/415 Vac three phaseInput voltage range±20% from nominal at 100% load, -50%, +20% from nominal at 50% loadOperating frequency50/60 Hz (45 to 65 Hz)Input power factor0,99Input current distortion2-5% THD in nominal load conditionNominal output voltage220/380, 230/400, 240/415 VacOutput voltage regulation±2% static;±5% dynamic at 100% load change, < 1 ms response timeOverload capacity150% for 1 min / 125% for 10 min / 110% for 60 min (mains available) 150% for 5 sec (on battery)Permitted load power factors0,7 lag – 0,8 leadingEfficiency92% with computer load, 93% with linear load User interface LCD displayGraphical LCD with blue backlight: English, French, German and Spanish languages std.LED4 LEDStandard communication ports1 x RS232 for local support, 2 x XSlot (empty);1 x relay contact, 1 x emergency power-off input, 2 x environmental inputOptionalExternal battery cabinets; Temperature probe (EMP)Isolation transformer; External mechanical bypass switch Slot connectivity: Web/SNMP, Modbus/Jbus, Relay, Hot Sync, RS 232 cards Environmental Operating temperature0°C to +40°C, +45°C with 7,5% derating; Batteries recommended max. +25°CStorage temperature-15°C to +45°C Altitude< 1000 mAudible noise < 50 dB(A) at 1 meter (noise less room); 53 dB(A) according to ISO 7779 Certification QualityISO 9001: 2000 and ISO 14001:1996MarkingsCE and GOST markingSafetyIEC 62040-1-1, IEC 60950, EN 62040-1-1EMCEN 50091-2 Class A Performance according to IEC 62040-3 VFI-SS-111 POWERWARE 9355 specifications tableRating 8 kVA10 kVA12 kVA15 kVA20 kVA30 kVA40 kVA Part number9355-8-N9355-10-N9355-12-N9355-15-N9355-20-N9355-30-N9355-40-NCapacity (kVA/kW)8 / 7.210 / 912 / 10.515 / 13.520 / 1830 / 2740 / 36Dimensions HxWxD (mm) With extra runtime817x305x702 1214x305x7021684x494x762Weight UPS+1xBAT UPS+2xBAT 155 kg 265 kg 155 kg 265 kg 160 kg 270 kg 160 kg 270 kg 300 kg 400-600 kg 400 kg 500-600 kg 517 kg 617 kgInput connectionUPS input hardwired, Bypass input (redundancy) hardwiredOutput connection1-ph (9155), 3-ph (9355), UPS output hardwiredTypical runtime UPS+1xBAT UPS+2xBAT UPS+3xBAT UPS+4xBAT 15 min 33 min 49 min 79 min 10 min 25 min 40 min 57 min 8 min 20 min 28 min 45 min 5 min 15 min 22 min 37 min 5 min 23 min 22 min 31 min - min 7 min 13 min 20 min - min - min 8 min 12 min
25
