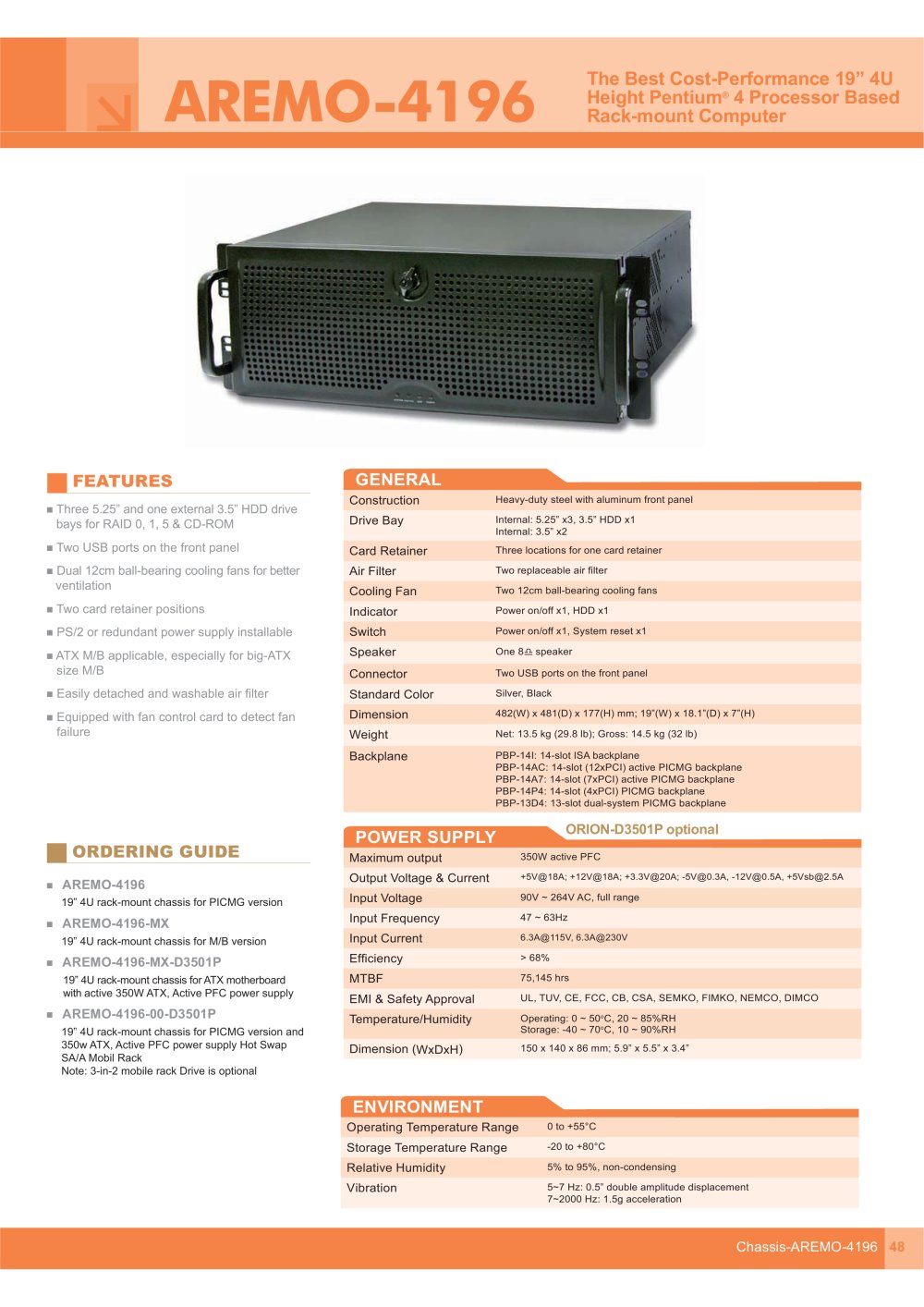

M AREMO-4196 The Best Cost-Performance 19" 4U Height Pentium® 4 Processor Based Rack-mount Computer ■ FEATURES GENERAL ■ Three 5.25" and one external 3.5" HDD drive bays for RAID 0, 1, 5 & CD-ROM Construction Heavy-duty steel with aluminum front panel Drive Bay Internal: 5.25" x3, 3.5" HDD x1 Internal: 3.5" x2 ■ Two USB ports on the front panel Card Retainer Three locations for one card retainer ■ Dual 12cm ball-bearing cooling fans for better Air Filter Two replaceable airfilter ventilation Cooling Fan Two 12cm ball-bearing cooling fans ■ Two card retainer positions Indicator Power on/off x1, HDD x1 ■ PS/2 or redundant power supply installable Switch Power on/off x1, System reset x1 ■ ATX M/B applicable, especially for big-ATX Speaker One 8£± speaker size M/B Connector Two USB ports on the front panel ■ Easilydetached and washable airfilter Standard Color Silver, Black ■ Equipped with fan control card to detect fan Dimension 482(W) x 481(D) x 177(H) mm; 19"(W) x 18.1"(D) x 7"(H) failure Weight Net: 13.5 kg (29.8 lb); Gross: 14.5 kg (32 lb) Backplane PBP-14I: 14-slot ISA backplane PBP-14AC: 14-slot (12xPCI) active PICMG backplane PBP-14A7: 14-slot (7xPCI) active PICMG backplane PBP-14P4: 14-slot (4xPCI) PICMG backplane PBP-13D4: 13-slot dual-system PICMG backplane M ORDERING GUIDE_ ■ AREMO-4196 19" 4U rack-mount chassis for PICMG version ■ AREMO-4196-MX 19" 4U rack-mount chassis for M/B version ■ AREMO-4196-MX-D3501P 19" 4U rack-mount chassis for ATX motherboard with active 350W ATX, Active PFC power supply ■ AREMO-4196-00-D3501P 19" 4U rack-mount chassis for PICMG version and 350w ATX, Active PFC power supply Hot Swap SA/A Mobil Rack Note: 3-in-2 mobile rack Drive is optional ORION-D3501P optional POWER SUPPLY Maximum output 350W active PFC Output Voltage & Current +5V@18A; +12V@18A; +3.3V@20A; -5V@0.3A, -12V@0.5A, +5Vsb@2.5A Input Voltage 90V ~ 264V AC, full range Input Frequency 47 ~ 63Hz Input Current 6.3A@115V, 6.3A@230V Efficiency > 68% MTBF 75,145 hrs EMI & Safety Approval UL, TUV, CE, FCC, CB, CSA, SEMKO, FIMKO, NEMCO, DIMCO Temperature/Humidity Operating: 0 ~ 50oC, 20 ~ 85%RH Storage: -40 ~ 70oC, 10 ~ 90%RH Dimension (WxDxH) 150 x 140 x 86 mm; 5.9" x 5.5" x 3.4" ENVIRONMENT Operating Temperature Range 0 to +55°C Storage Temperature Range -20 to +80°C Relative Humidity 5% to 95%, non-condensing Vibration 5~7 Hz: 0.5" double amplitude displacement 7~2000 Hz: 1.5g acceleration Chassis-AREMO-4196 48
