Industrial Platform Solution Guide 2012 - PORTWELL - #4

Text version of the page

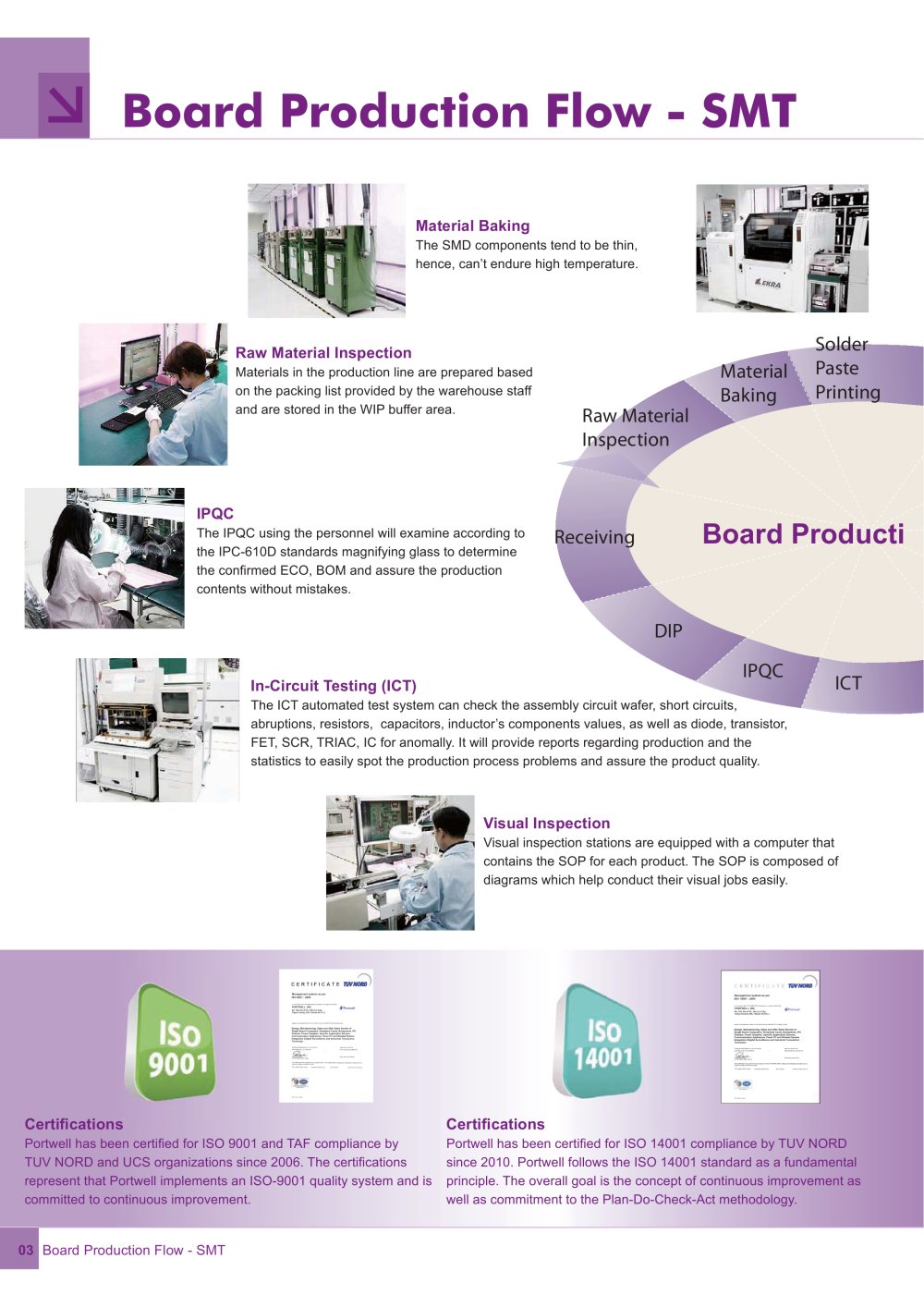

^1 Board Production Flow - SMT Material Baking The SMD components tend to be thin, hence, can't endure high température. Raw Material Inspection Materials in the production line are prepared based on the packing list provided by the warehouse staff and are stored in the WIP buffer area. Raw Material Inspection Solder Material Paste Baking Printing IPQC The IPQC using the personnel will examine according to the IPC-610D standards magnifying glass to determine the confirmed ECO, BOM and assure the production contents without mistakes. Receiving Board Producti DIP IPQC ICT In-Circuit Testing (ICT) The ICT automated test system can check the assembly circuit wafer, short circuits, abruptions, resistors, capacitors, inductor's components values, as well as diode, transistor, FET, SCR, TRIAC, IC foranomally. Itwill provide reports regarding production and the statistics to easily spot the production process problems and assure the product quality. Visual Inspection Visual inspection stations are equipped with a computer that contains the SOP for each product. The SOP is composed of diagrams which help conduct their visual jobs easily. Certifications Portwell has been certified for ISO 9001 and TAF compliance by TUV NORD and UCS organizations since 2006. The certifications represent that Portwell implements an ISO-9001 quality system and is committed to continuous improvement. Certifications ■ Portwell has been certified for ISO 14001 compliance by TUV NORD since 2010. Portwell follows the ISO 14001 standard as a fundamental principle. The overall goal is the concept of continuous improvement as well as commitment to the Plan-Do-Check-Act methodology. 03 Board Production Flow - SMT
