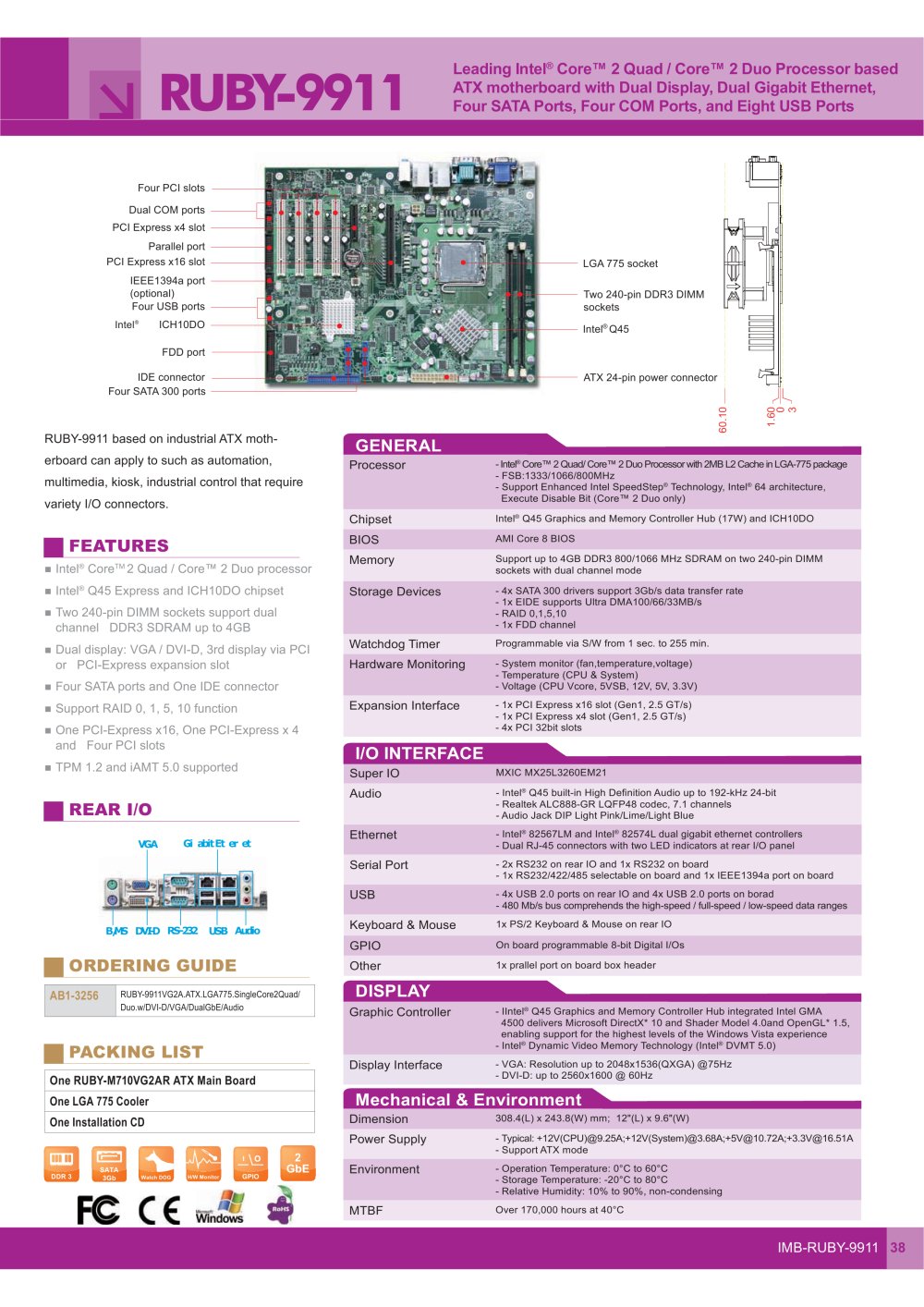

RUBY-9911 Leading Intel® Core™ 2 Quad / Core™ 2 Duo Processor based ATX motherboard with Dual Display, Dual Gigabit Ethernet, Four SATA Ports, Four COM Ports, and Eight USB Ports Four PCI slots Dual COM ports PCI Express x4 slot Parallel port PCI Express x16 slot IEEE1394a port (optional) Four USB ports Intel® ICH10DO FDD port IDE connector Four SATA 300 ports LGA 775 socket Two 240-pin DDR3 DIMM sockets Intel® Q45 ATX 24-pin power connector O d CD 00 RUBY-9911 based on industrial ATX moth­erboard can apply to such as automation, multimedia, kiosk, industrial control that require variety I/O connectors. B FEATURES_ ■ Intel® CoreTM2 Quad / Core™ 2 Duo processor ■ Intel® Q45 Express and ICH10DO chipset ■ Two 240-pin DIMM sockets support dual channel DDR3 SDRAM up to 4GB ■ Dual display: VGA / DVI-D, 3rd display via PCI or PCI-Express expansion slot ■ Four SATA ports and One IDE connector ■ Support RAID 0, 1, 5, 10 function ■ One PCI-Express x16, One PCI-Express x 4 and Four PCI slots ■ TPM 1.2 and iAMT 5.0 supported ■ REAR I/O GENERAL - Intel® Core™ 2 Quad/ Core™ 2 Duo Processor with 2MB L2 Cache in LGA-775 package - FSB:1333/1066/800MHz - Support Enhanced Intel SpeedStep® Technology, Intel® 64 architecture, Execute Disable Bit (Core™ 2 Duo only) Chipset Intel® Q45 Graphics and Memory Controller Hub (17W) and ICH10DO BIOS AMI Core 8 BIOS Memory Support up to 4GB DDR3 800/1066 MHz SDRAM on two 240-pin DIMM sockets with dual channel mode Storage Devices - 4x SATA 300 drivers support 3Gb/s data transfer rate - 1x EIDE supports Ultra DMA100/66/33MB/s - RAID 0,1,5,10 - 1x FDD channel Watchdog Timer Programmable via S/W from 1 sec. to 255 min. Hardware Monitoring - System monitor (fan,temperature,voltage) - Temperature (CPU & System) - Voltage (CPU Vcore, 5VSB, 12V, 5V, 3.3V) Expansion Interface - 1x PCI Express x16 slot (Gen1, 2.5 GT/s) - 1x PCI Express x4 slot (Gen1, 2.5 GT/s) - 4x PCI 32bit slots I/O INTERFACE MXIC MX25L3260EM21 Audio - Intel® Q45 built-in High Définition Audio upto 192-kHz 24-bit - Realtek ALC888-GR LQFP48 codec, 7.1 channels - Audio Jack DIP Light Pink/Lime/Light Blue Ethernet - Intel® 82567LM and Intel® 82574L dual gigabit ethernet controllers - Dual RJ-45 connectors with two LED indicators at rear I/O panel Serial Port - 2x RS232 on rear IO and 1x RS232 on board - 1x RS232/422/485 selectable on board and 1x IEEE1394a port on board USB - 4x USB 2.0 ports on rear IO and 4x USB 2.0 ports on borad - 480 Mb/s bus comprehends the high-speed / full-speed / low-speed data ranges Keyboard & Mouse 1x PS/2 Keyboard & Mouse on rear IO GPIO On board programmable 8-bit Digital I/Os Other 1x prallel port on board box header VGA Gi abit Et er et B/MS DVI-D RS-232 USB Audio ORDERING GUIDE AB1-3256 RUBY-9911VG2A.ATX.LGA775.SingleCore2Quad/ Duo.w/DVI-D/VGA/DualGbE/Audio DISPLAY Graphic Controller - IIntel® Q45 Graphics and Memory Controller Hub integrated Intel GMA 4500 delivers Microsoft DirectX* 10 and Shader Model 4.0and OpenGL* 1.5, enabling support for the highest levels of the Windows Vista experience - Intel® Dynamic Video Memory Technology (Intel® DVMT 5.0) Display Interface - VGA: Resolution up to 2048x1536(QXGA) @75Hz - DVI-D: up to 2560x1600 @ 60Hz PACKING LIST One RUBY-M710VG2AR ATX Main Board One LGA 775 Cooler Mechanical & Environment One Installation CD Dimension 308.4(L) x 243.8(W) mm; 12"(L) x 9.6"(W) Power Supply - Typical: +12V(CPU)@9.25A;+12V(System)@3.68A;+5V@10.72A;+3.3V@16.51A - Support ATX mode Environment - Operation Temperature: 0°C to 60°C - Storage Temperature: -20°C to 80°C - Relative Humidity: 10% to 90%, non-condensing MTBF Over 170,000 hours at 40°C eau ■[=] H SATA ddr 3 3Gb Windows 38
