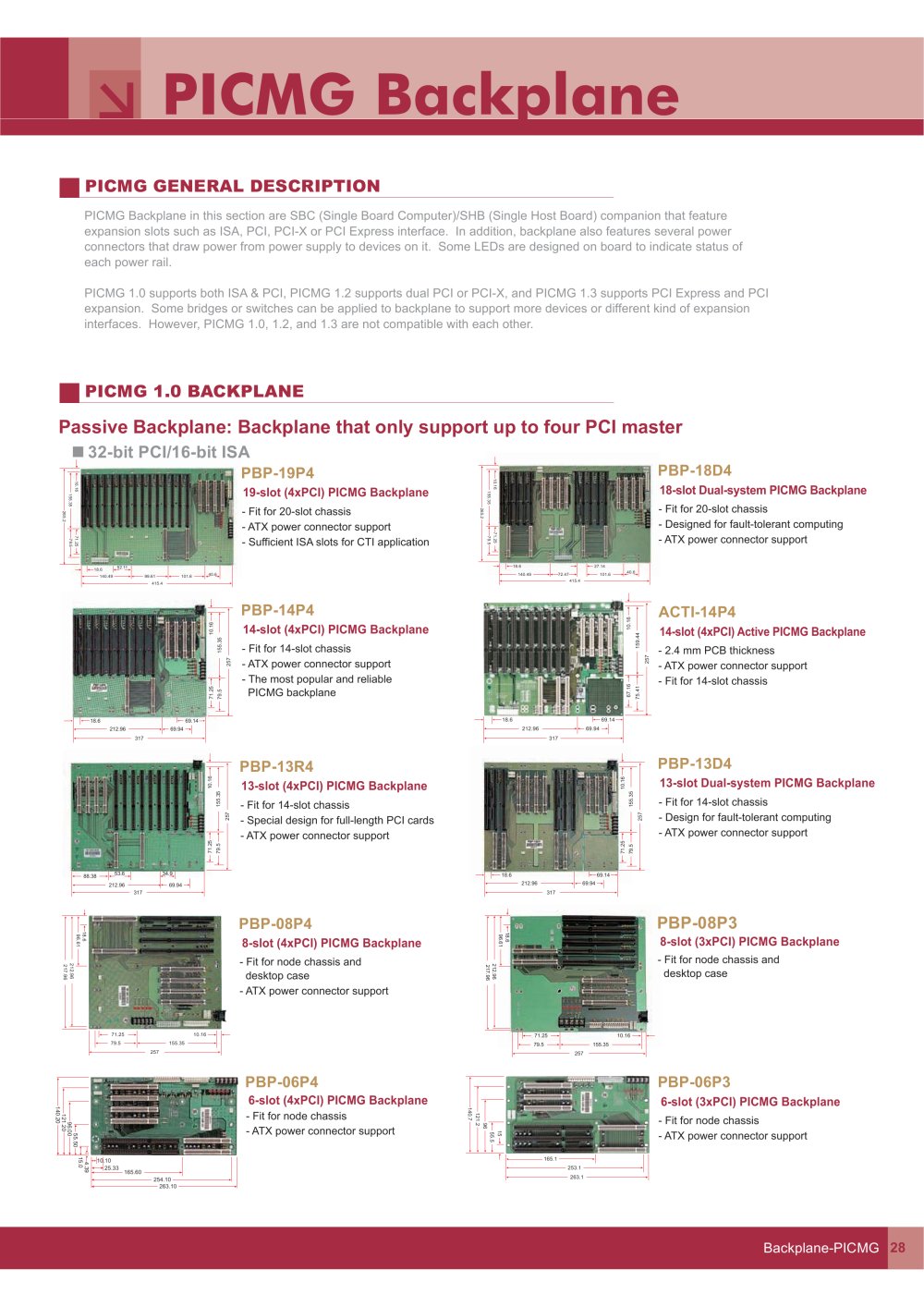

M PICMG Backplane B PICMG GENERAL DESCRIPTION_ PICMG Backplane in this section are SBC (Single Board Computer)/SHB (Single Host Board) companion that feature expansion slots such as ISA, PCI, PCI-X or PCI Express interface. In addition, backplane also features several power connectors that draw power from power supply to devices on it. Some LEDs are designed on board to indicate status of each power rail. PICMG 1.0 supports both ISA & PCI, PICMG 1.2 supports dual PCI or PCI-X, and PICMG 1.3 supports PCI Express and PCI expansion. Some bridges or switches can be applied to backplane to support more devices or different kind of expansion interfaces. However, PICMG 1.0, 1.2, and 1.3 are not compatible with each other. PICMG 1.0 BACKPLANE Passive Backplane: Backplane that only support up to four PCI master 32-bit PCI/16-bit ISA PBP-18D4 18-slot Dual-system PICMG Backplane - Fit for 20-slot chassis - Designed for fault-tolerant computing - ATX power connector support PBP-19P4 19-slot (4xPCI) PICMG Backplane - Fit for 20-slot chassis - ATX power connector support - Sufficient ISA slots for CTI application PBP-14P4 14-slot (4xPCI) PICMG Backplane - Fit for 14-slot chassis - ATX power connector support - The most popular and reliable PICMG backplane ACTI-14P4 14-slot (4xPCI) Active PICMG Backplane - 2.4 mm PCB thickness - ATX power connector support - Fit for 14-slot chassis il 18.6 I— 69.14 69.94 -•> PBP-13R4 13-slot (4xPCI) PICMG Backplane - Fit for 14-slot chassis - Special design for full-length PCI cards - ATX power connector support PBP-13D4 13-slot Dual-system PICMG Backplane - Fit for 14-slot chassis - Design for fault-tolerant computing - ATX power connector support PBP-08P4 8-slot (4xPCI) PICMG Backplane - Fit for node chassis and desktop case - ATX power connector support PBP-08P3 8-slot (3xPCI) PICMG Backplane - Fit for node chassis and desktop case 71.25 79.5 --|«- 155.35 257 PBP-06P4 6-slot (4xPCI) PICMG Backplane - Fit for node chassis - ATX power connector support PBP-06P3 6-slot (3xPCI) PICMG Backplane - Fit for node chassis - ATX power connector support 253.1 263.1 28 Backplane-PICMG
