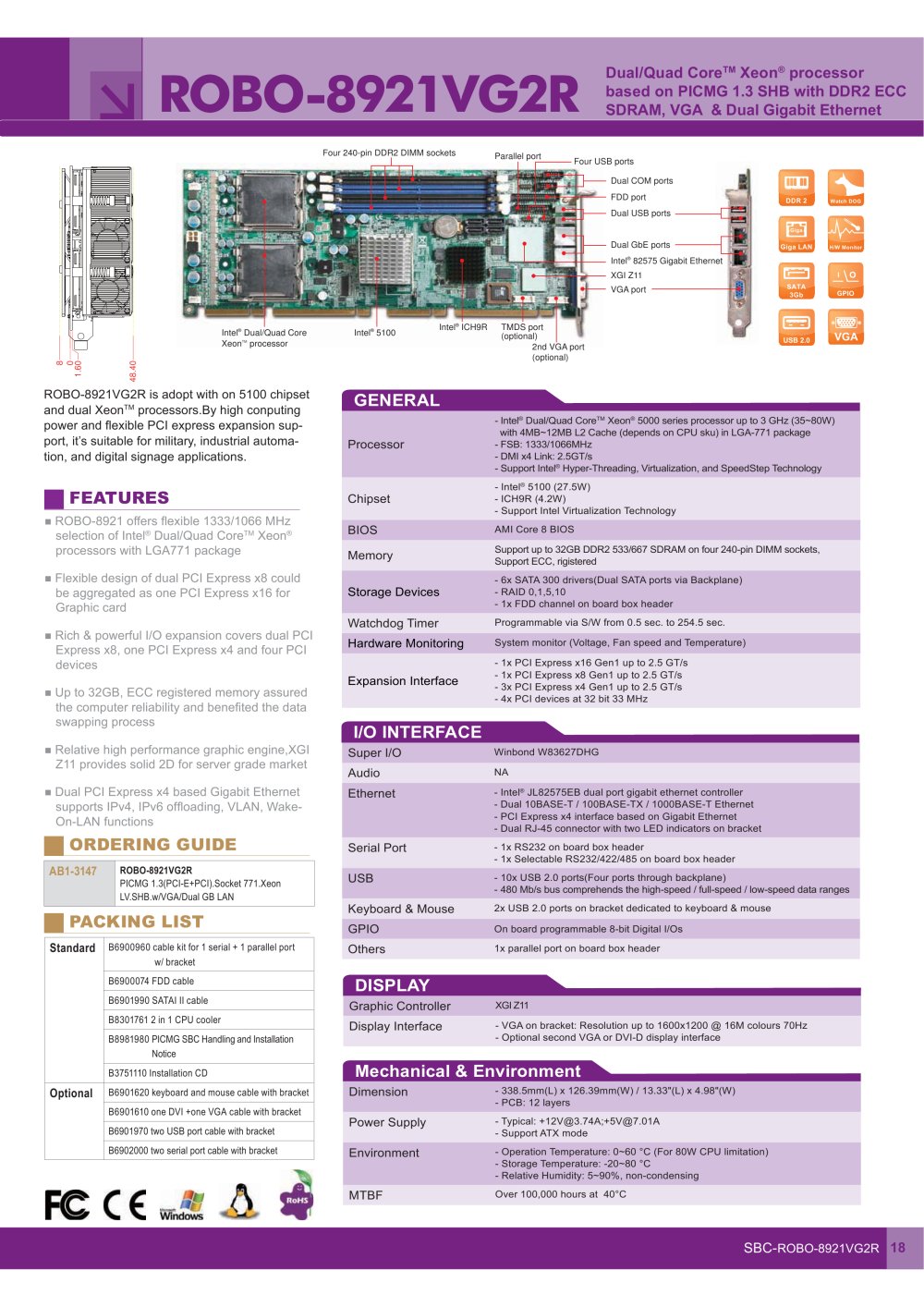

Ver 212A cover_outline.ai table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.50pt "Arial", sans-serif; } .font1 { font:5.40pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:6.30pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:17.00pt "Arial", sans-serif; } .font7 { font:19.00pt "Arial", sans-serif; } .font8 { font:20.00pt "Arial", sans-serif; } .font9 { font:32.00pt "Arial", sans-serif; } .font10 { font:10.00pt "Arial Black", sans-serif; } .font11 { font:19.00pt "Impact", sans-serif; } .font12 { font:6.00pt "Tahoma", sans-serif; } nj ROBO-8921VG2R Dual/Quad CoreTM Xeon® processor based on PICMG 1.3 SHB with DDR2 ECC SDRAM, VGA & Dual Gigabit Ethernet Four 240-pin DDR2 DIMM sockets Parallel port Four USB ports 1 et 9r Dual COM ports FDD port Dual USB ports Dual GbE ports Intel® 82575 Gigabit Ethern XGI Z11 jPSj VGA port -i;j Intel® Dual/Quad Core XeonTM processor ntel® 5100 Intel® ICH9R TMDS port (optional) 2nd VGA port (optional) 0 4 ROBO-8921VG2R is adopt with on 5100 chipset and dual XeonTM processors.By high conputing power and flexible PCI express expansion sup­port, it's suitable for military, industrial automa-tion, and digital signage applications. B FEATURES_ ■ ROBO-8921 offers flexible 1333/1066 MHz selection of Intel® Dual/Quad CoreTM Xeon® processors with LGA771 package ■ Flexible design ofdual PCI Express x8 could be aggregated as one PCI Express x16 for Graphic card ■ Rich & powerful I/O expansion covers dual PCI Express x8, one PCI Express x4 and four PCI devices ■ Up to 32GB, ECC registered memory assured the computer reliability and benefited the data swapping process ■ Relative high performance graphic engine,XGI Z11 provides solid 2D for server grade market ■ Dual PCI Express x4 based Gigabit Ethernet supports IPv4, IPv6 offloading, VLAN, Wake-On-LAN functions ■ ORDERING GUIDE GENERAL Processor - Intel® Dual/Quad Core™ Xeon® 5000 series processor upto3 GHz (35-80W) with 4MB-12MB L2 Cache (depends on CPU sku) in LGA-771 package -FSB: 1333/1066MHZ -DMIx4Link:2.5GT/s - Support Intel® Hyper-Threading, Virtualization, and SpeedStep Technology Chipset - Intel® 5100 (27.5W) - ICH9R(4.2W) - Support Intel Virtualization Technology BIOS AMI Core 8 BIOS Memory Support up to 32GB DDR2 533/667 SDRAM on four 240-pin DIMM sockets, Support ECC, rigistered Storage Devices - 6x SATA 300 drivers(Dual SATA ports via Backplane) - RAID 0,1,5,10 - 1x FDD channel on board box header Watchdog Timer Programmable via S/W from 0.5 sec. to 254.5 sec. Hardware Monitoring System monitor (Voltage, Fan speed and Temperature) Expansion Interface - 1x PCI Expressx16Gen1 upto2.5GT/s - 1x PCI Expressx8Gen1 upto2.5GT/s - 3x PCI Express x4 Gen1 up to 2.5 GT/s - 4x PCI devices at 32 bit 33 MHz I/O INTERFACE Super I/O Winbond W83627DHG Audio NA Ethernet - Intel® JL82575EB dual port gigabit ethernet controller - Dual 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet - PCI Express x4 interface based on Gigabit Ethernet - Dual RJ-45 connector with two LED indicators on bracket Serial Port - 1xRS232 on board box header - 1xSelectable RS232/422/485 on board box header USB - 10x USB 2.0 ports(Four ports through backplane) - 480 Mb/s bus comprehends the high-speed / full-speed / low-speed data ranges Keyboard & Mouse 2x USB 2.0 ports on bracket dedicated to keyboard & mouse GPIO On board programmable 8-bit Digital I/Os Others 1x parallel port on board box header AB1-3147 ROBO-8921VG2R PICMG 1.3(PCI-E+PCI).Socket 771.Xeon LV.SHB.w/VGA/Dual GB LAN PACKING LIST Standard B6900960 cable kit for 1 serial + 1 parallel port w/ bracket B690 0074 FDD cable B6901990 SATAI II cable B8301761 2 in 1 CPU cooler B8981980 PICMG SBC Handling and Installation Notice B3751110 Installation CD Optional B6901620 keyboard and mouse cable with bracket B6901610 one DVI +one VGA cable with bracket B6901970 two USB port cable with bracket B6902000 two serial port cable with bracket F^l* C € Windows ^ TlÊ^f DISPLAY ^ Graphic Controller XGI Z11 Display Interface - VGA on bracket: Resolution up to 1600x1200 @ 16M colours 70Hz - Optional second VGA or DVI-D display interface Mechanical & Environment Dimension ■ 338.5mm(L) x 126.39mm(W) / 13.33"(L) x4.98"(W) - PCB: 12 layers Power Supply -Typical: +12V@3.74A;+5V@7.01A - Support ATX mode Environment - Operation Temperature: 0-60 °C (For 80W CPU limitation) - Storage Temperature: -20-80 °C - Relative Humidity: 5-90%, non-condensing MTBF Over100,000 hours at 40°C 18 SBC-ROBO-8921VG2R
