Text version of the page
www.ponar-wadowice.pl
Flow in feed system: 200 dm
3 Flow in cooling system: 30 dm
3 Flow in filtration system: 300 dm
3 Operating pressure: 21 MPa
Electric motor power: 22 kW
Electric motor voltage supply: 400V 50Hz
Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40°-60°C Tank capacity: 400 dm
3
Cooler type: air-oil Dissipated: 2-7 kW
Supply voltage: 230 V 50 Hz
page 29

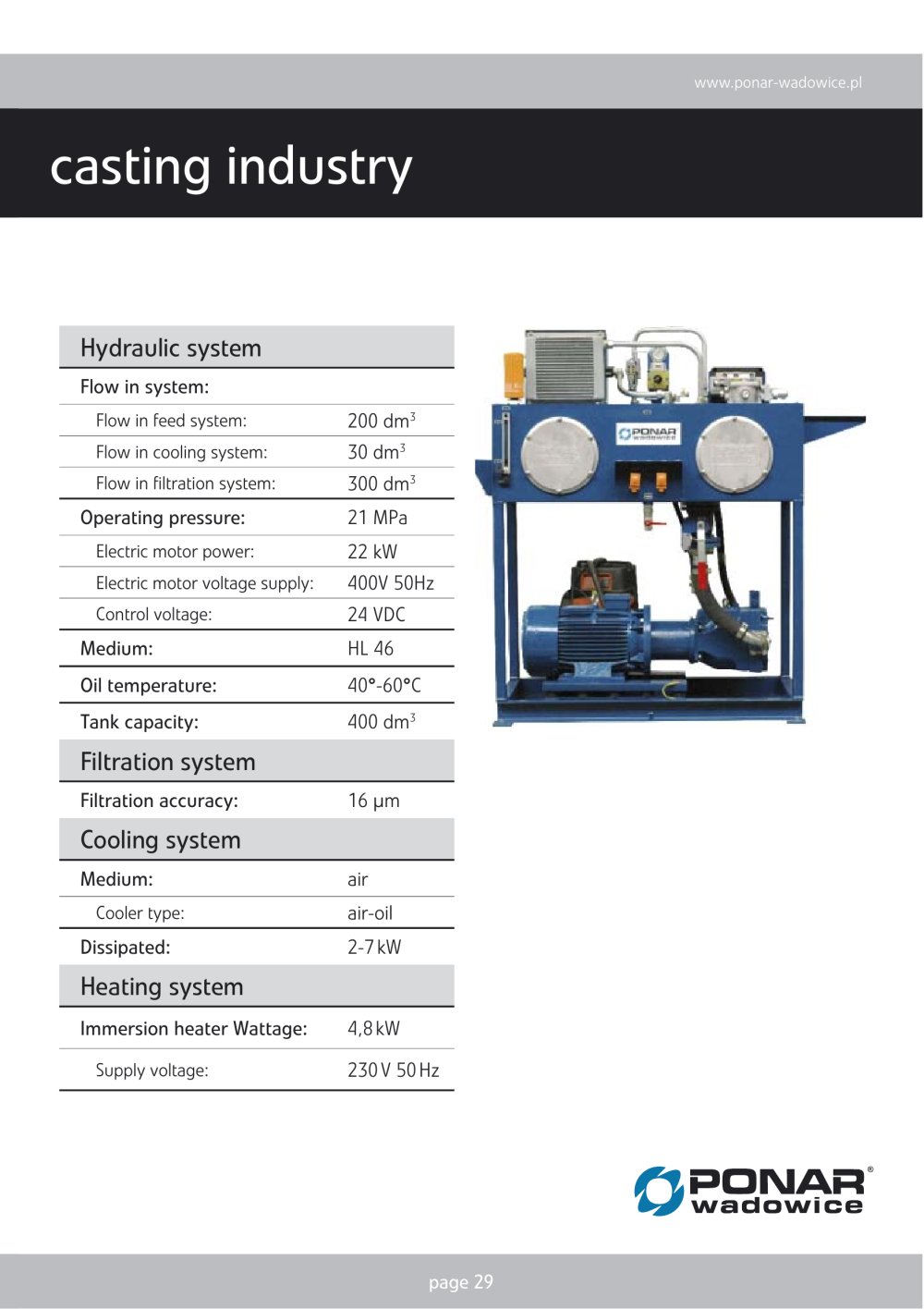

Hydraulic Systems - 40845 casting industry
Hydraulic system
Flow in system:Flow in feed system: 200 dm
3 Flow in cooling system: 30 dm
3 Flow in filtration system: 300 dm
3 Operating pressure: 21 MPa
Electric motor power: 22 kW
Electric motor voltage supply: 400V 50Hz
Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40°-60°C Tank capacity: 400 dm
3
Filtration system
Filtration accuracy: 16 µmCooling system
Medium: airCooler type: air-oil Dissipated: 2-7 kW
Heating system
Immersion heater Wattage: 4,8 kWSupply voltage: 230 V 50 Hz
page 29
