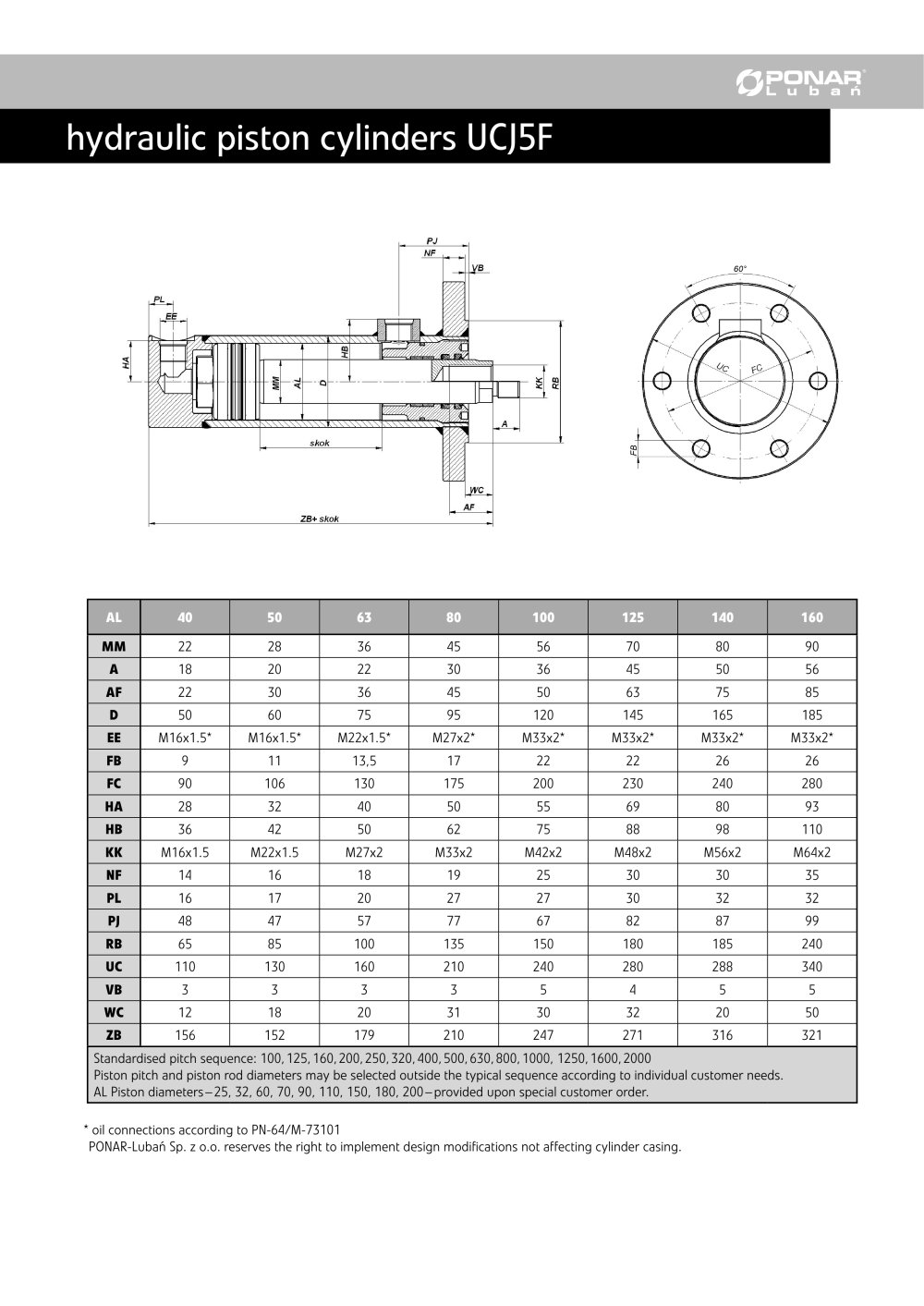

hydraulic piston cylinders UCJ5F



MM	22	28	36	45	56	70	80	90
A	18	20	22	30	36	45	50	56
AF	22	30	36	45	50	63	75	85
D	50	60	75	95	120	145	165	185
EE	M16x1.5*	M16x1.5*	M22x1.5*	M27x2*	M33x2*	M33x2*	M33x2*	M33x2*
FB	9	11	13,5	17	22	22	26	26
FC	90	106	130	175	200	230	240	280
HA	28	32	40	50	55	69	80	93
HB	36	42	50	62	75	88	98	110
KK	M16x1.5	M22x1.5	M27x2	M33x2	M42x2	M48x2	M56x2	M64x2
NF	14	16	18	19	25	30	30	35
PL	16	17	20	27	27	30	32	32
PJ	48	47	57	77	67	82	87	99
RB	65	85	100	135	150	180	185	240
UC	110	130	160	210	240	280	288	340
VB	3	3	3	3	5	4	5	5
WC	12	18	20	31	30	32	20	50
ZB	156	152	179	210	247	271	316	321
Standardised pitch sequence: 100, 125, 160, 200, 250, 320, 400, 500, 630, 800, 1000, 1250, 1600, 2000 Piston pitch and piston rod diameters may be selected outside the typical sequence according to individual customer needs. AL Piston diameters - 25, 32, 60, 70, 90, 110, 150, 180, 200 - provided upon special customer order.

oil connections according to PN-64/M-73101

PONAR-Lubah Sp. z o.o. reserves the right to implement design modifications not affecting cylinder casing.
