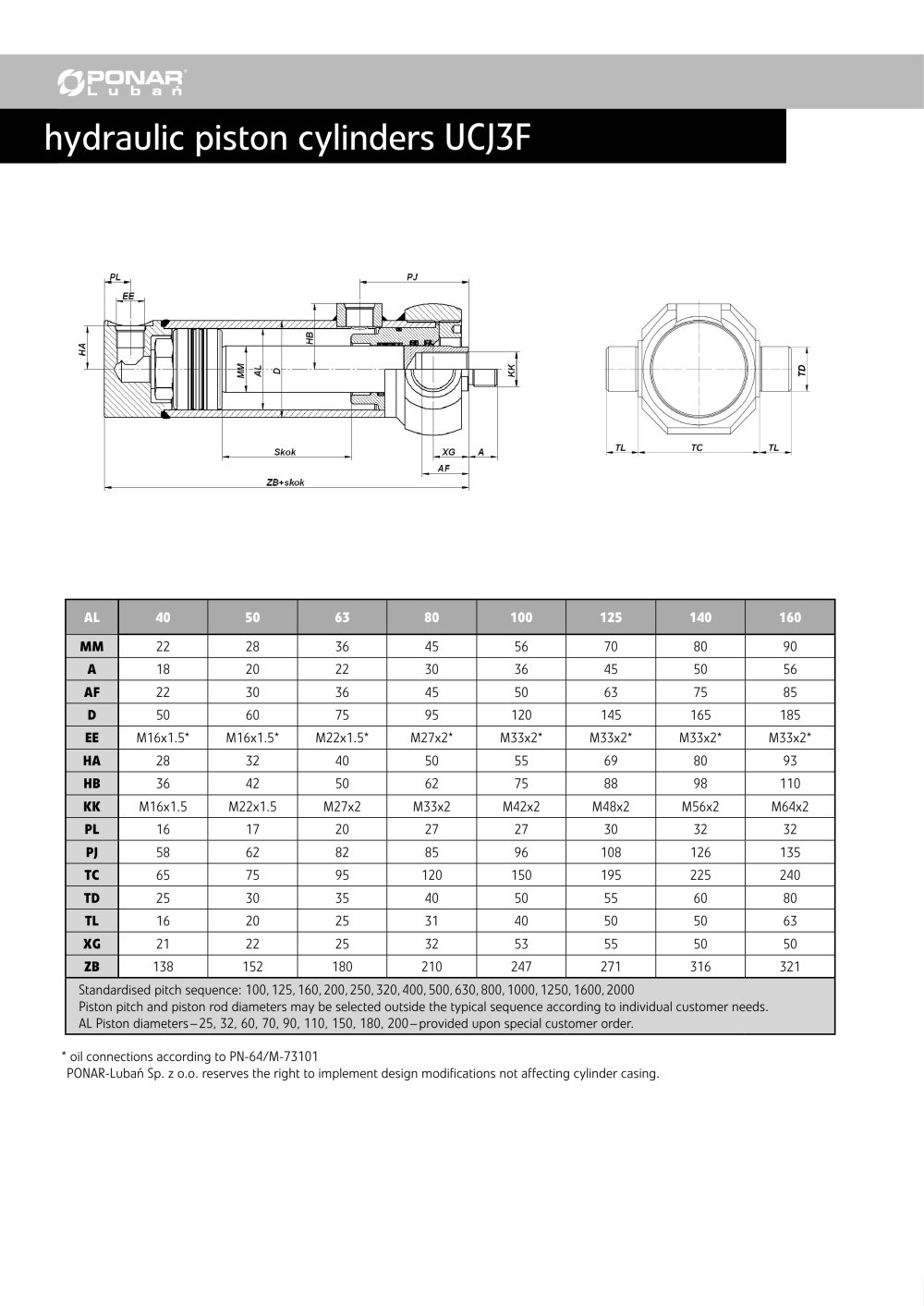

	MM	22	28	36	45	56	70	80	90
	A	18	20	22	30	36	45	50	56
	AF	22	30	36	45	50	63	75	85
	D	50	60	75	95	120	145	165	185
	EE	M16x1.5*	M16x1.5*	M22x1.5*	M27x2*	M33x2*	M33x2*	M33x2*	M33x2*
	HA	28	32	40	50	55	69	80	93
	HB	36	42	50	62	75	88	98	110
	KK	M16x1.5	M22x1.5	M27x2	M33x2	M42x2	M48x2	M56x2	M64x2
	PL	16	17	20	27	27	30	32	32
	PJ	58	62	82	85	96	108	126	135
	TC	65	75	95	120	150	195	225	240
	TD	25	30	35	40	50	55	60	80
	TL	16	20	25	31	40	50	50	63
	XG	21	22	25	32	53	55	50	50
	ZB	138	152	180	210	247	271	316	321
	Standardised pitch sequence: 100, 125, 160, 200, 250, 320, 400, 500, 630, 800, 1000, 1250, 1600, 2000 Piston pitch and piston rod diameters may be selected outside the typical sequence according to individual customer needs. AL Piston diameters - 25, 32, 60, 70, 90, 110, 150, 180, 200 - provided upon special customer order.

oil connections according to PN-64/M-73101

PONAR-Lubah Sp. z o.o. reserves the right to implement design modifications not affecting cylinder casing.
