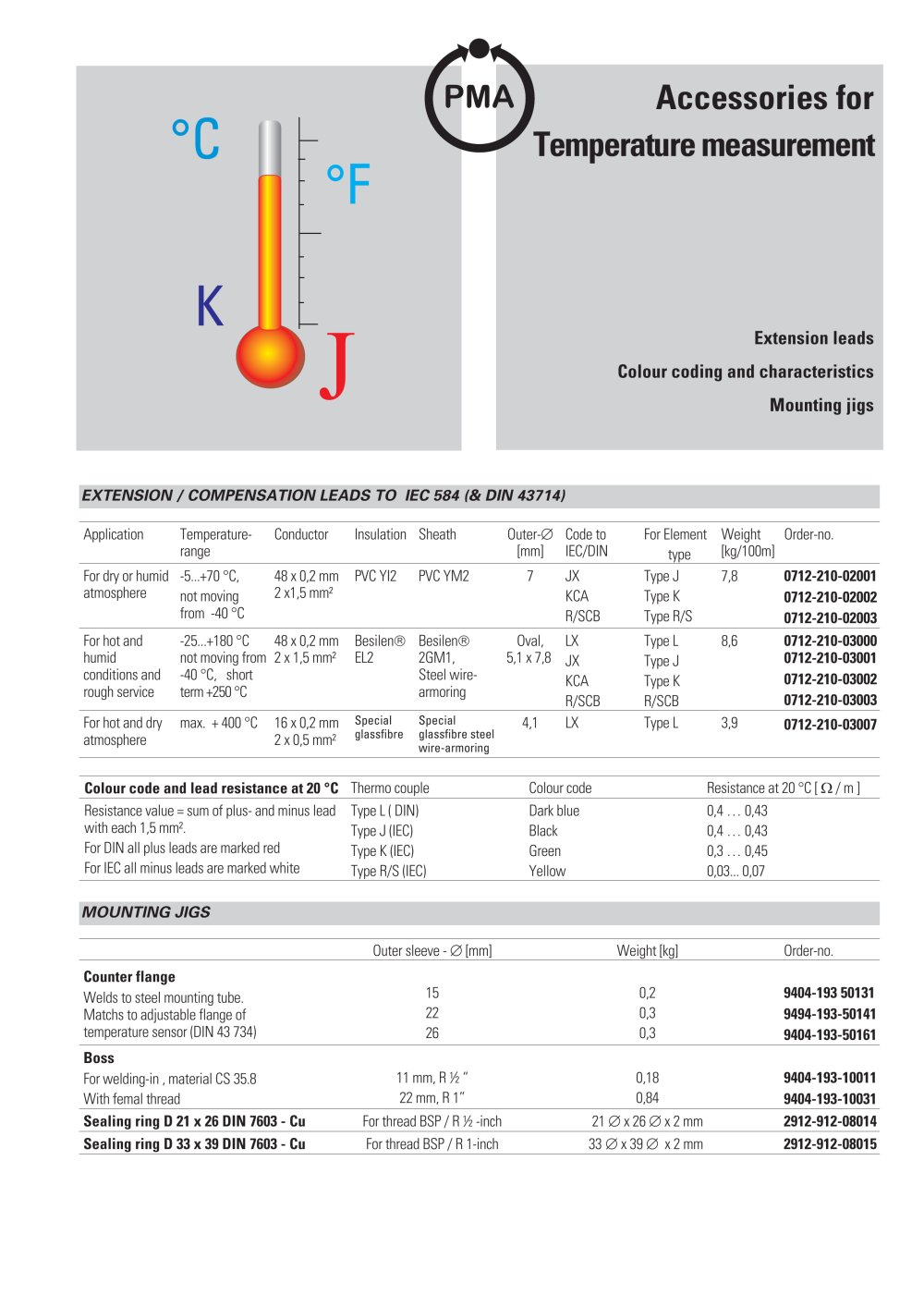

| | | | | | | | | | | | | | | | | | | EXTENSION / COMPENSATION LEADS TO IEC 584 (& DIN 43714) | | | | | | | | | | | | | | | | | | | | | | | | | Application | Temperature-range | Conductor | Insulation | Sheath | Outer-0 [mm] | Code to IEC/DIN | For Element type | Weight [kg/100m] | Order-no. | | | | For dry or humid atmosphere | -5...+70 °C, not moving from -40 °C | 48x0,2 mm 2x1,5 mm2 | PVC YI2 | PVCYM2 | 7 | JX KCA R/SCB | Type J Type K Type R/S | 7,8 | 0712-210-02001 0712-210-02002 0712-210-02003 | | | | For hot and humid conditions and rough service | -25...+180 °C 48x0,2 mm not moving from 2 x1,5 mm2 -40 °C, short term +250°C | Besilen® EL2 | Besilen® 2GM1, Steel wire-armoring | Oval, 5,1 x7,8 | LX JX KCA R/SCB | Type L Type J Type K R/SCB | 8,6 | 0712-210-03000 0712-210-03001 0712-210-03002 0712-210-03003 | | | | For hot and dry atmosphere | max. + 400 °C | 16x0,2 mm 2x0,5mm2 | Special glassfibre | Special glassfibre steel wire-armoring | 4,1 | LX | Type L | 3,9 | 0712-210-03007 | | | | | | | | | | | | | | | | | | | | | | | | | Colour code and lead resistance at 20 °C Thermocouple Colour code Resistance at 20 °C[ Q /m] | | | | | | | | | | | | | | | | | | | Resistance value = sum of plus- and minus lead | Type L( DIN) | Dark blue | 0,4... 0,43 | | | | with each 1,5 mm2. | Type J (IEC) | Black | 0,4... 0,43 | | | | For DIN all plus leads are marked red | Type K (IEC) | Green | 0,3 ... 0,45 | | | | For IEC all minus leads are marked white | Type R/S (IEC) | Yellow | 0,03... 0,07 | | | | | | | | | | | | | | | | | | | MOUNTING JIGS | | | | | | | | | | | | | | | | | | | | | | Outer sleeve - 0 [mm] | Weight [kg] | Order-no. | | | | | | | | | | | | Welds to steel mounting tube. | | 15 | 0,2 | 9404-193 50131 | | | | Matchs to adjustable flange of | | 22 | 0,3 | 9494-193-50141 | | | | | | 26 | 0,3 | 9404-193-50161 | | | | Boss | | | | | | | | For welding-in, material CS 35.8 | | 11 mm, R /" | 0,18 | 9404-193-10011 | | | | With femal thread | | 22 mm,R1" | 0,84 | 9404-193-10031 | | | | Sealing ring D 21 x 26 DIN 7603 - | Cu | For thread BSP/R / -inch | 21 0 x260 x2mm | 2912-912-08014 | | | | Sealing ring D 33 x 39 DIN 7603 - | Cu | For thread BSP/R 1-inch | 33 0 x39 0 x2mm | 2912-912-08015 | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
