		V CKAS
	* SGS	*V.'.—'* *. ■*

CERTSO:GBO.V58I57

Type

Emitted

x dorn

Lens

lv (med)

VF (V)

At IF

(mA)

Viewing Angle

2 e 1/2

Figure

Color

(typ.)

Color

Typ.

Max.

Typ.

Max.

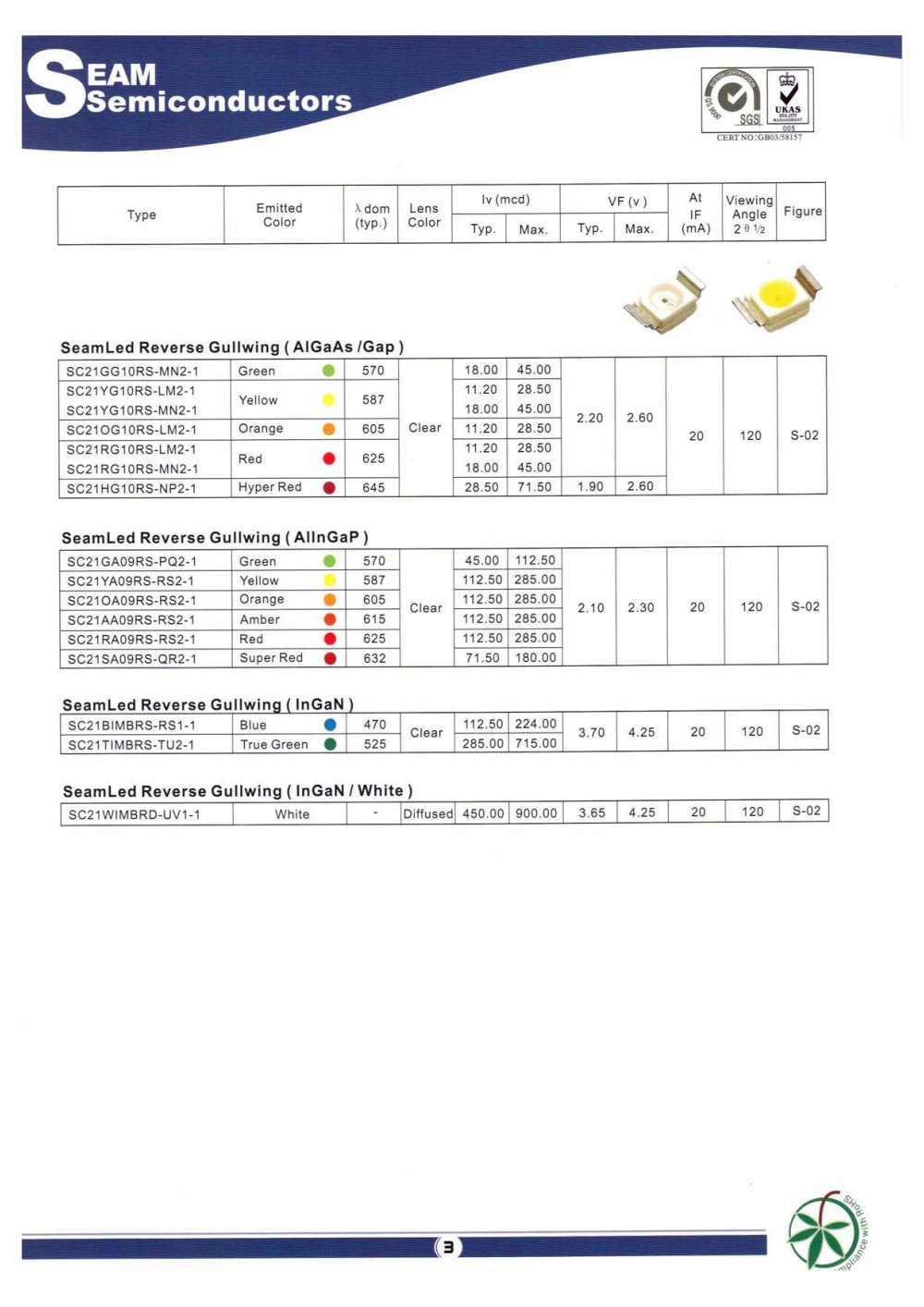

Seam Led Reverse Gull wing ( AIGaAs /Gap )


	SC21GG10RS-MN2-1	Green	•	570		18.00	45.00
	SC21YG10RS-LM2-1 SC21YG10RS-MN2-1	Yellow		587		11.20 18.00	28.50 45.00	2.20	2.60
	SC21OG10RS-LM2-1	Orange	•	605	Clear	11.20	28.50	2.20	2.60	20	120	S-02
	SC21RG10RS-LM2-1 SC21RG10RS-MN2-1	Red	•	625		11.20 18.00	28.50 45.00			20	120	S-02
	SC21HG10RS-NP2-1	Hyper Red	•	645		28.50	71.50	1.90	2.60

SeamLed Reverse Gullwing ( AllnGaP )


	SC21GA09RS-PQ2-1	Green		570		45.00	112.50
	SC21YA09RS-RS2-1	Yellow		587		112.50	285 OC
	SC21OA09RS-RS2-1	Orange	•	605	Clear	112.50	285.00	2.10	2.30	20	120	S-02
	SC21AA09RS-RS2-1	Amber	•	615	Clear	112.50	285.00	2.10	2.30	20	120	S-02
	SC21RA09RS-RS2-1	Red	•	Ö25		112.50	285.00
	SC21SA09RS-QR2-1	Super Red	•	632		71.50	180.00

SeamLed Reverse Gullwing ( InGaN )


	SC21BIMBRS-RS1-1	Blue •	470	Clear	112.50	224.00	3.70	4.25	20	120	S-02
	SC21TIMBRS-TU2-1	True Green #	525	Clear	285.00	715.00	3.70	4.25	20	120	S-02

SeamLed Reverse Gullwing ( InGaN / White )


	SC21WIMBRD-UV1-1	White	Diffused	450.00	900.00	3.65	4.25	20	120	S-02
