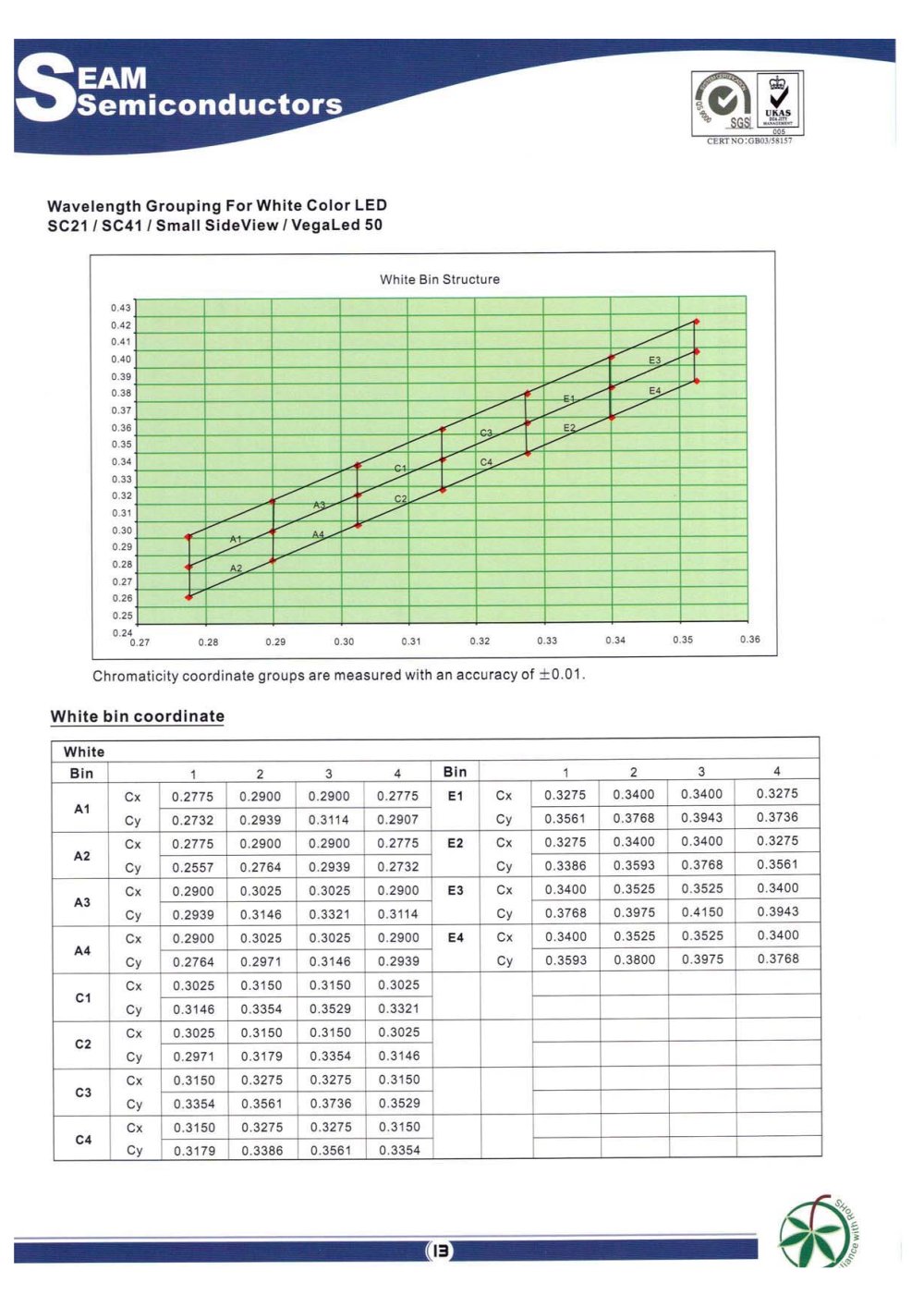

Wavelength Grouping For White Color LED SC21 / SC41 / Small SideView / VegaLed 50

Chromaticity coordinate groups are measured with an accuracy of ±0.01. White bin coordinate


	White
	Bin		1	2	3	i	Bin		1	2	3	4
	A1	Cx	0.2775	0.2900	0.2900	0.2775	E1	Cx	0.3275	0.3400	0.3400	0.3275
	A1	Cy	0.2732	0.2939	0.3114	0.2907		Cy	0.3561	0.3768	0.3943	0.3736
	A2	Cx	0.2775	0.2900	0.2900	0.2775	E2	Cx	0.3275	0.3400	0.3400	0.3275
	A2	Cy	0.2557	0.2764	0.2939	0.2732		Cy	0.3386	0.3593	0.3768	0.3561
	A3	Cx	0.2900	0.3025	0.3025	0.2900	E3	Cx	0.3400	0.3525	0.3525	0.3400
	A3	Cy	0.2939	0.3146	0.3321	0.3114		cy	0.3768	0.3975	0 4150	0.3943
	A4	Cx	0.2900	0.3025	0.3025	0.2900	E4	Cx	0.3400	0.3525	0.3525	0.3400
	A4	Cy	0.2764	0.2971	0.3146	0.2939		Cy	0.3593	0.3800	0.3975	0.3768
	C1	Cx	0.3025	0.3150	0.3150	0.3025
	C1	Cy	0.3146	0.3354	0.3529	0.3321
	C2	Cx	0.3025	0.3150	0.3150	0.3025
	C2	Cy	0.2971	0.3179	0.3354	0.3146
	C3	Cx	0.3150	0.3275	0.3275	0.3150
	C3	Cy	0.3354	0 3561	0.3736	0 3529
	C4	Cx	0.3150	0.3275	0.3275	0.3150
	C4	Cy	0.3179	0.3386	0.3561	0.3354
