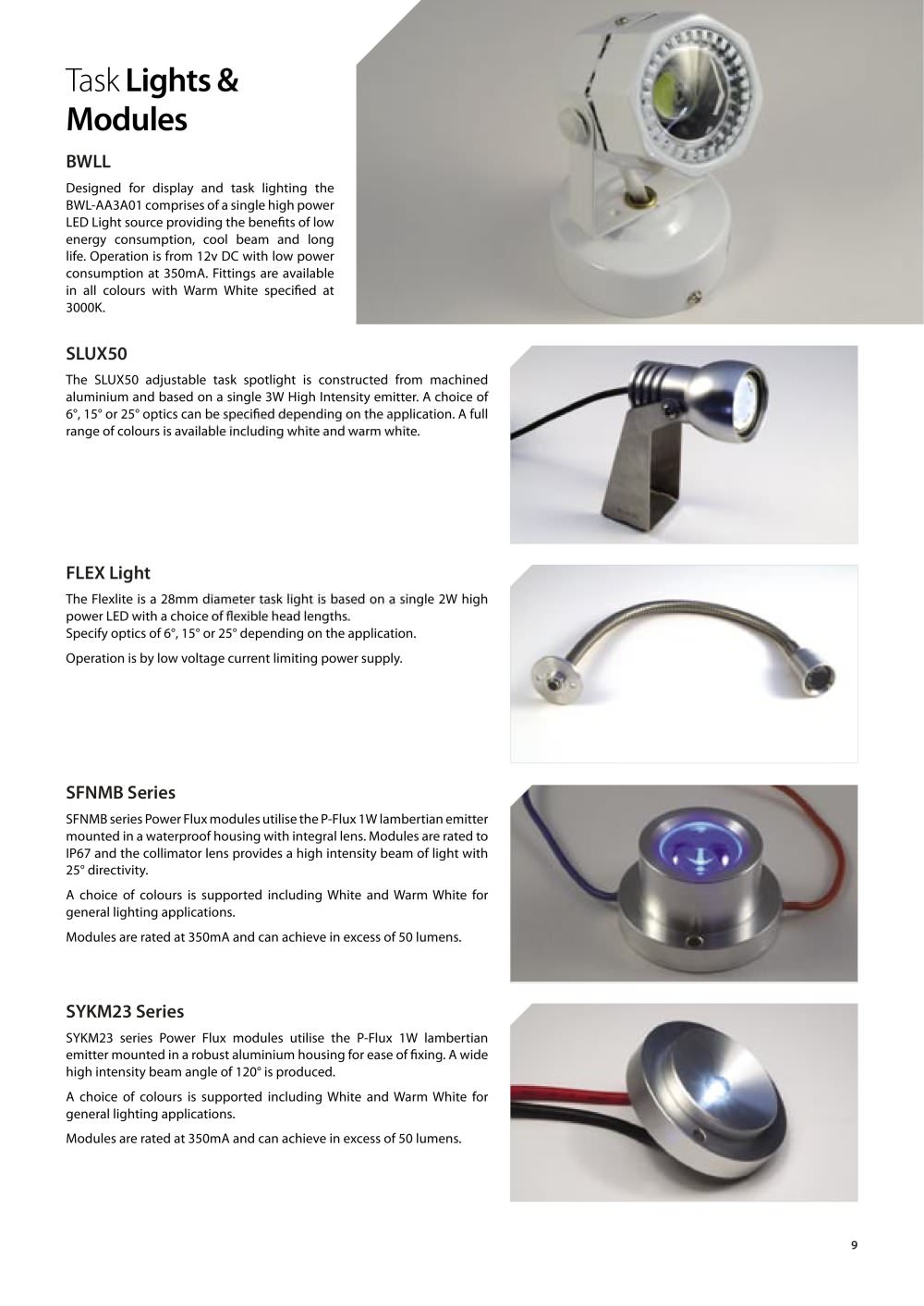

Product Showcase - Plus Opto - #9

Task Lights & Modules

Designed for display and task lighting the BWL-AA3A01 comprises of a single high power LED Light source providing the benefits of low energy consumption, cool beam and long life. Operation is from 12v DC with low power consumption at 350mA. Fittings are available in all colours with Warm White specified at 3000K.

The SLUX50 adjustable task spotlight is constructed from machined aluminium and based on a single 3W High Intensity emitter. A choice of 6°, 15° or 25° optics can be specified depending on the application. A full range ofcolours is available including white and warm white.

The Flexlite is a 28mm diameter task light is based on a single 2W high

power LED with a choice offlexible head lengths.

Specify optics of6°, 15° or 25° depending on the application.

Operation is by low voltage current limiting power supply.

SFNMB series Power Flux modules utilise the P-Flux 1W lambertian emitter mounted in a waterproof housing with integral lens. Modules are rated to IP67 and the collimator lens provides a high intensity beam of light with 25° directivity.

A choice of colours is supported including White and Warm White for general lighting applications.

Modules are rated at 350mAand can achieve in excess of50 lumens.

SYKM23 series Power Flux modules utilise the P-Flux 1W lambertian emitter mounted in a robust aluminium housing for ease of fixing. A wide high intensity beam angle of 120° is produced.

A choice of colours is supported including White and Warm White for general lighting applications.

Modules are rated at 350mAand can achieve in excess of50 lumens.
