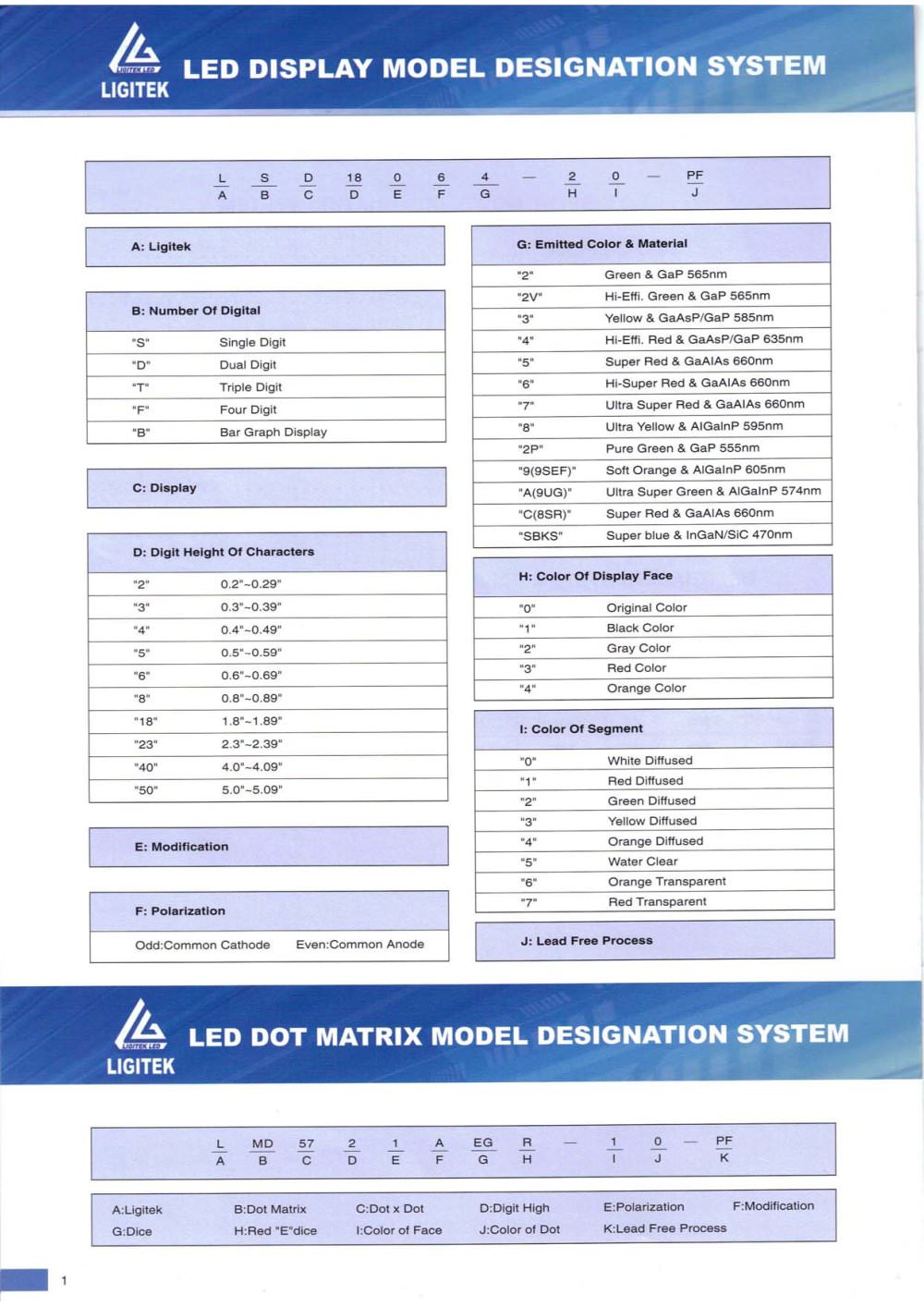

LED DISPLAY MODEL DESIGNATION SYSTEM

LIGITEK

_l a

S B

0 —

PF J

11

D

0 E

4

G

2_ H

c


	G: Emitted Color & Material
	"2"	Green & GaP 565nm
	"2V	Hi-Effi. Green & GaP 565nm
	"3"	Yellow & GaAsP/GaP 585nm
	"4"	Hi-Effi. Red & GaAsP/GaP 635nm
	"5"	Super Red & GaAIAs 660nm
	"6"	Hi-Super Red & GaAIAs 660nm
	"7"	Ultra Super Red & GaAIAs 660nm
	"8"	Ultra Yellow & AIGalnP 595nm
	"2P"	Pure Green & GaP 555nm
	"9(9SEF)"	Soft Orange & AIGalnP 605nm
	"A(9UG)"	Ultra Super Green & AIGalnP 574nm
	"C(8SR)"	Super Red & GaAIAs 660nm
	"SBKS"	Super blue & InGaN/SiC 470nm

	H: Color Of Display Face
	"0"	Original Color
	"1"	Black Color
	*•2"*	Gray Color
	■3"	Red Color
	"4"	Orange Color

	I: Color Of Segment
	"0"	White Diffused
	"1"	Red Diffused
	"2"	Green Diffused
	"3"	Yellow Diffused
	„₄„	Orange Diffused
	"5"	Water Clear
	"6"	Orange Transparent
	"7"	Red Transparent

A: Ligitek

B: Number Of Digital

'S"

Single Digit

"D"

Dual Digit

Triple Digit

■F"

Four Digit

Bar Graph Display

C: Display


	D: Digit Height Of Characters
	"2"	0.2"~0.29"
	»3"	0.3"-0.39"
	•4-	0.4"-0.49"
	"5"	0.5"-0.59"
	"6"	0.6--0.69"
	"8"	0.8"-0.89"
	"18"	1.8"-1 89"
	"23"	2.3"-2.39"
	"40"	4 0 -4 09
	"50"	5.0"-5.09"

E: Modification

F: Polarization

J: Lead Free Process

Odd:Common Cathode EvemCommon Anode

h LED DOT MATRIX MODEL DESIGNATION SYSTEM

LIGITEK

L

MD

57

2

1

A_

EG

1

0

_

PF

A

B

C

D

E

F

G

H

I

J

K


	A:Ligitek	B:Dot Matrix	C:Dot x Dot	D:Digit High	E:Polarization F: Modification
	G : Dice	H:Red "E"dice	I:Color of Face	J:Color of Dot	KLead Free Process
