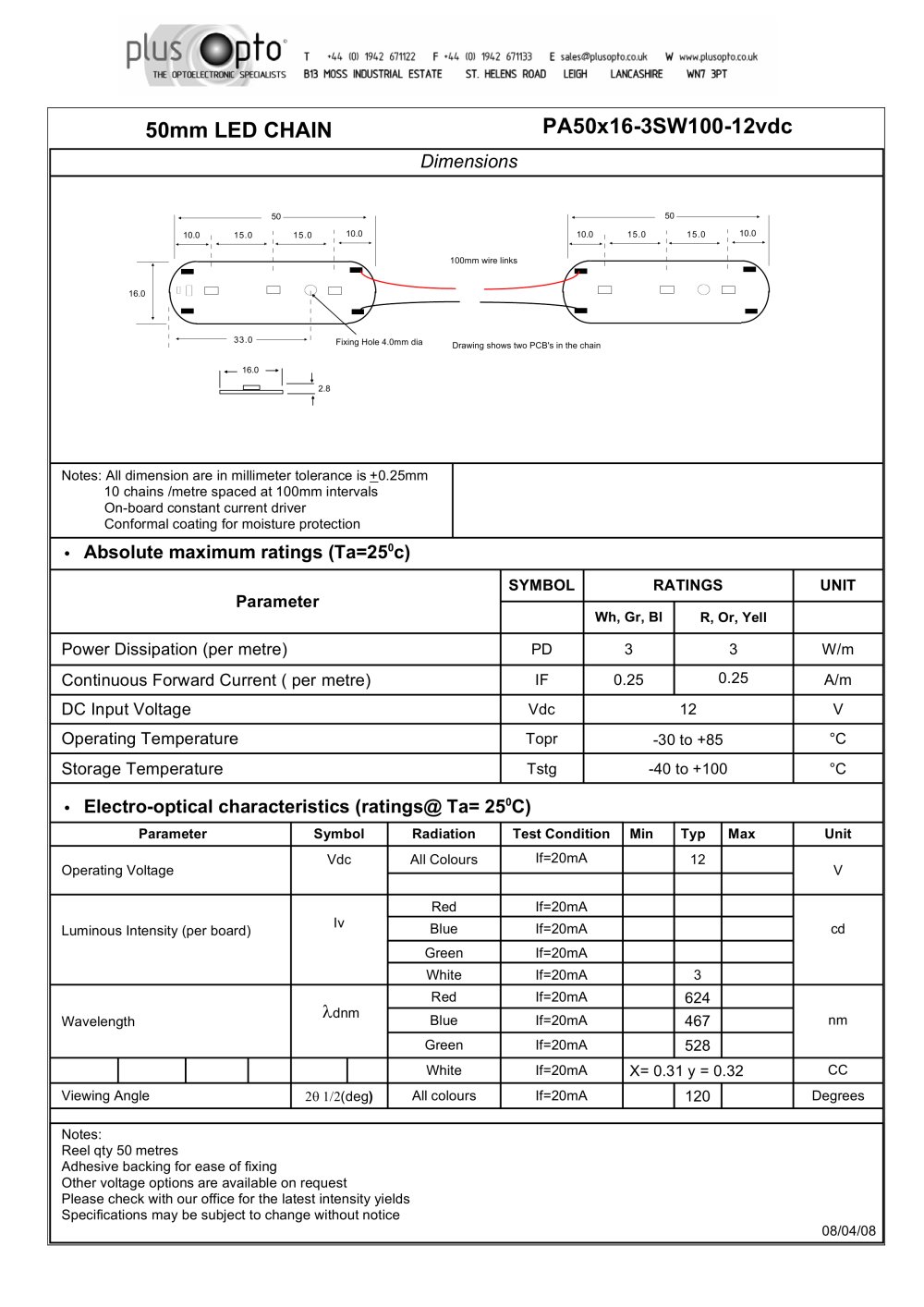

| | | PA50x16-3SW100-12vdc | | |
| | | 50mm LED CHAIN | | |
| | | |
| | | |
| | | Dimensions | | |
| | | |
| | | Notes: All dimension are in millimeter tolerance is +0.25mm 10 chains /metre spaced at 100mm intervals On-board constant current driver Conformal coating for moisture protection | | |
| | | |
| | | • Absolute maximum ratings (Ta=250c) | | |
| | | |
| | | | | | | | | | | | | Parameter | SYMBOL | RATINGS | UNIT | | | | | Wh, Gr, Bl | R, Or, Yell | | | | | Power Dissipation (per metre) | PD | 3 | 3 | W/m | | | | Continuous Forward Current ( per metre) | IF | 0.25 | 0.25 | A/m | | | | DC Input Voltage | Vdc | 12 | V | | | | Operating Temperature | Topr | -30 to +85 | °C | | | | Storage Temperature | Tstg | -40 to +100 | °C | | | | | | | | | | | | |
| | | |
| | | • Electro-optical characteristics (ratings© Ta= 250C) | | |
| | | |
| | | | | | | | | | | | | | | | Parameter | Symbol | Radiation | Test Condition | Min | Typ | Max | Unit | | | | Operating Voltage | Vdc | All Colours | If=20mA | | 12 | | V | | | | | | | | | | | | | | | Red | If=20mA | | | | | | | | Luminous Intensity (per board) | Iv | Blue | If=20mA | | | | cd | | | | | | Green | If=20mA | | | | | | | | | | White | If=20mA | | 3 | | | | | | | A,dnm | Red | If=20mA | | 624 | | | | | | Wavelength | Blue | If=20mA | | 467 | | nm | | | | | | Green | If=20mA | | 528 | | | | | | | | White | If=20mA | X= 0.31 y = 0.32 | CC | | | | Viewing Angle | 29 1/2(deg) | All colours | If=20mA | 120 | Degrees | | | | | | | | | | | | | | | |
| | | |
| | | Notes: Reel qty 50 metres Adhesive backing for ease of fixing Other voltage options are available on request Please check with our office for the latest intensity yields Specifications may be subject to change without notice | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | |
