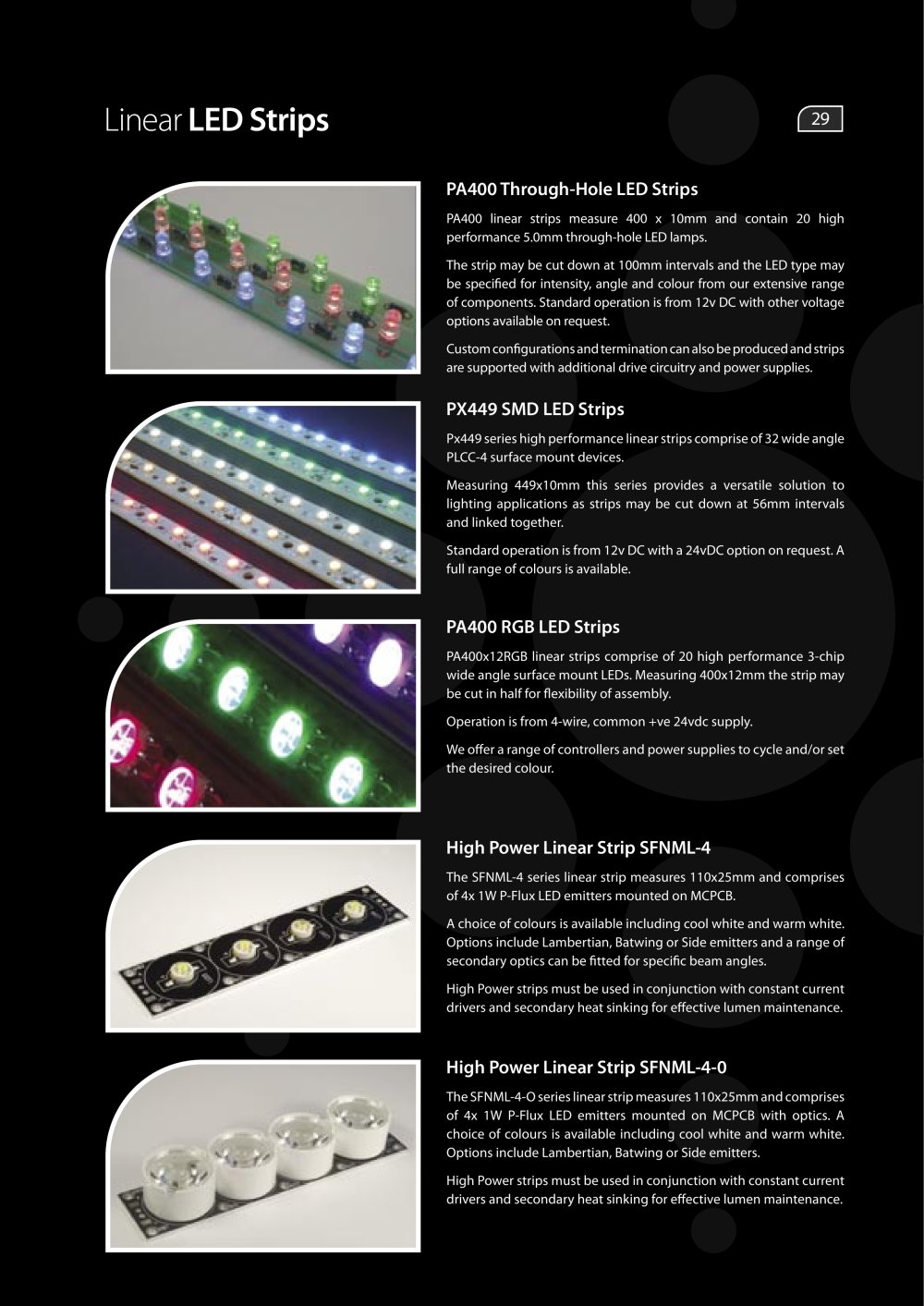

| PA400Through-Hole LED Strips PA400 linear strips measure 400 x 10mm and contain 20 high performance 5.0mm through-hole LED lamps. The strip may be cut down at 100mm intervals and the LED type may be specified for intensity, angle and colour from our extensive range of components. Standard operation is from 12v DC with other voltage options available on request. Custom configurations and termination can also be produced and strips are supported with additional drive circuitryand power supplies. PX449 SMD LED Strips Px449 series high performance linear strips comprise of 32 wide angle PLCC-4 surface mount devices. Measuring 449x10mm this series provides a versatile solution to lighting applications as strips may be cut down at 56mm intervals and linked together. Standard operation is from 12v DC with a 24vDC option on request. A full range of colours is available. | |||||
| PA400 RGB LED Strips PA400x12RGB linear strips comprise of 20 high performance 3-chip wide angle surface mount LEDs. Measuring 400x12mm the strip may be cut in half for flexibility ofassembly. Operation is from 4-wire, common +ve 24vdc supply. We offer a range of controllers and power supplies to cycle and/or set the desired colour. | |||||
| High Power Linear Strip SFNML-4 The SFNML-4 series linear strip measures 110x25mm and comprises of4x 1W P-Flux LED emitters mounted on MCPCB. A choice of colours is available including cool white and warm white. Options include Lambertian, Batwing or Side emitters and a range of secondary optics can be fitted for specific beam angles. High Power strips must be used in conjunction with constant current drivers and secondary heat sinking for effective lumen maintenance. | |||||
| High Power Linear Strip SFNML-4-0 The SFNML-4-0 series linear strip measures 110x25mm and comprises of 4x 1W P-Flux LED emitters mounted on MCPCB with optics. A choice of colours is available including cool white and warm white. Options include Lambertian, Batwing or Side emitters. High Power strips must be used in conjunction with constant current drivers and secondary heat sinking for effective lumen maintenance. | |||||
