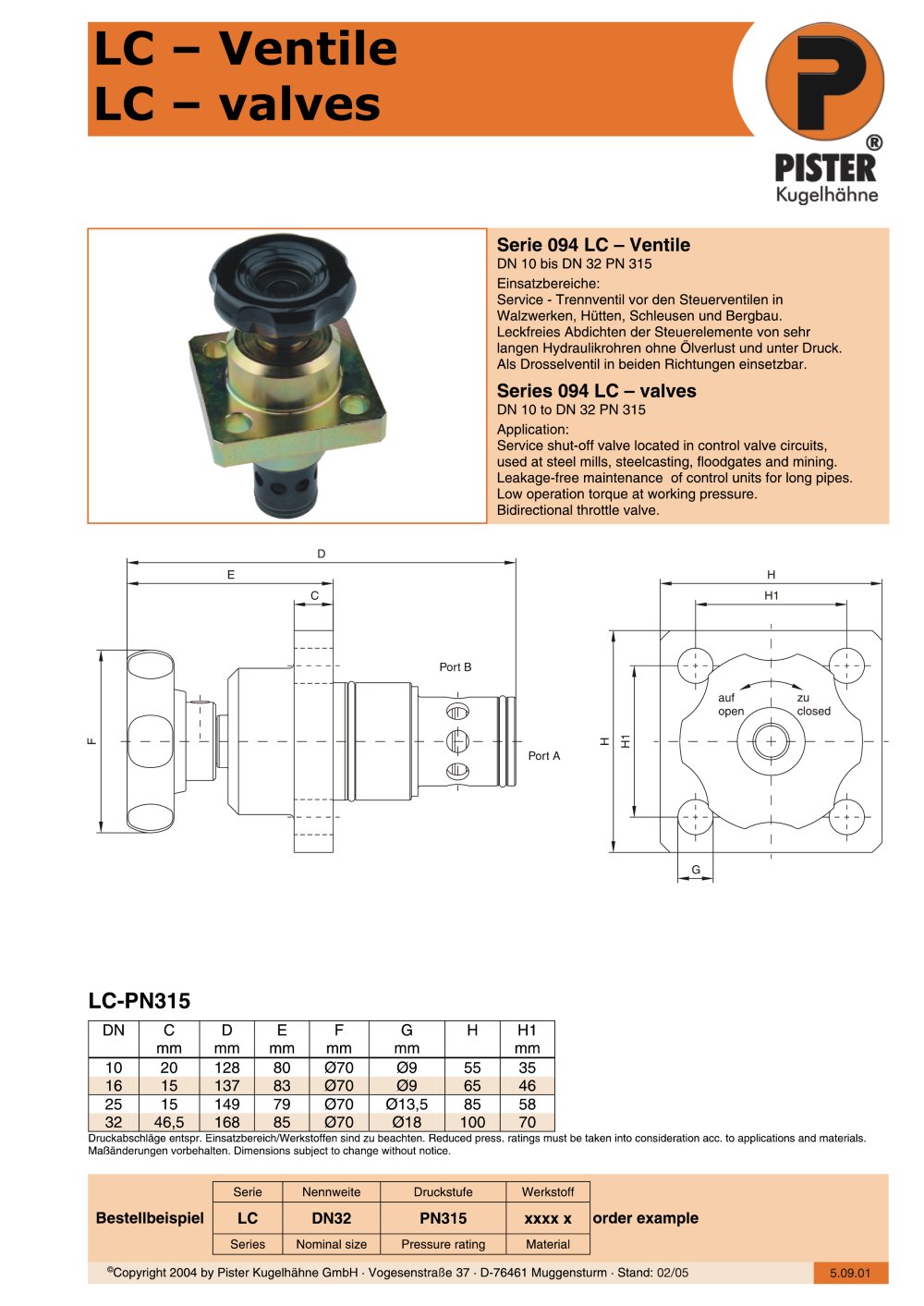

LC - Ventile LC - valves
®
PISTER
Kugelhâhne
Série 094 LC - Ventile
DN 10 bis DN 32 PN 315 Einsatzbereiche:
Service - Trennventil vor den Steuerventilen in Walzwerken, Hùtten, Schleusen und Bergbau. Leckfreies Abdichten der Steuerelemente von sehr langen Hydraulikrohren ohne Ôlverlust und unter Druck. Als Drosselventil in beiden Richtungen einsetzbar.
Séries 094 LC - valves
DN10toDN32PN 315 Application:
Service shut-off valve located in control valve circuits, used at steel mills, steelcasting, floodgates and mining. Leakage-free maintenance of control units for long pipes. Low opération torque at working pressure. Bidirectional throttle valve.
A
PortB
Port A
LC-PN315
DN
C
D
E
F
G
H
H1
mm
mm
mm
mm
mm
mm
10
20
128
80
070
09
55
35
16
15
137
83
070
09
65
46
25
15
149
79
070
013,5
85
58
32
46,5
168
85
070
018
100
70
Druckabschlàge entspr. Einsatzbereich/Werkstoffen sind zu beachten. Reduced press. ratings must be taken into considération acc. to applications and materials. Maflanderungen vorbehatten. Dimensions subject to change wlthout notice.
Bestellbeispiel
Série
Nennweite
Dnjckstufe
Werkstoff
LC
DN32
PN315
xxxxx
Séries
Nominal size
Pressure rating
Material
order example
"Copyright 2004 by Pister Kugelhâhne GmbH - VogesenstraBe 37 ■ D-76461 Muggsnstuim - Stand: 02/05
