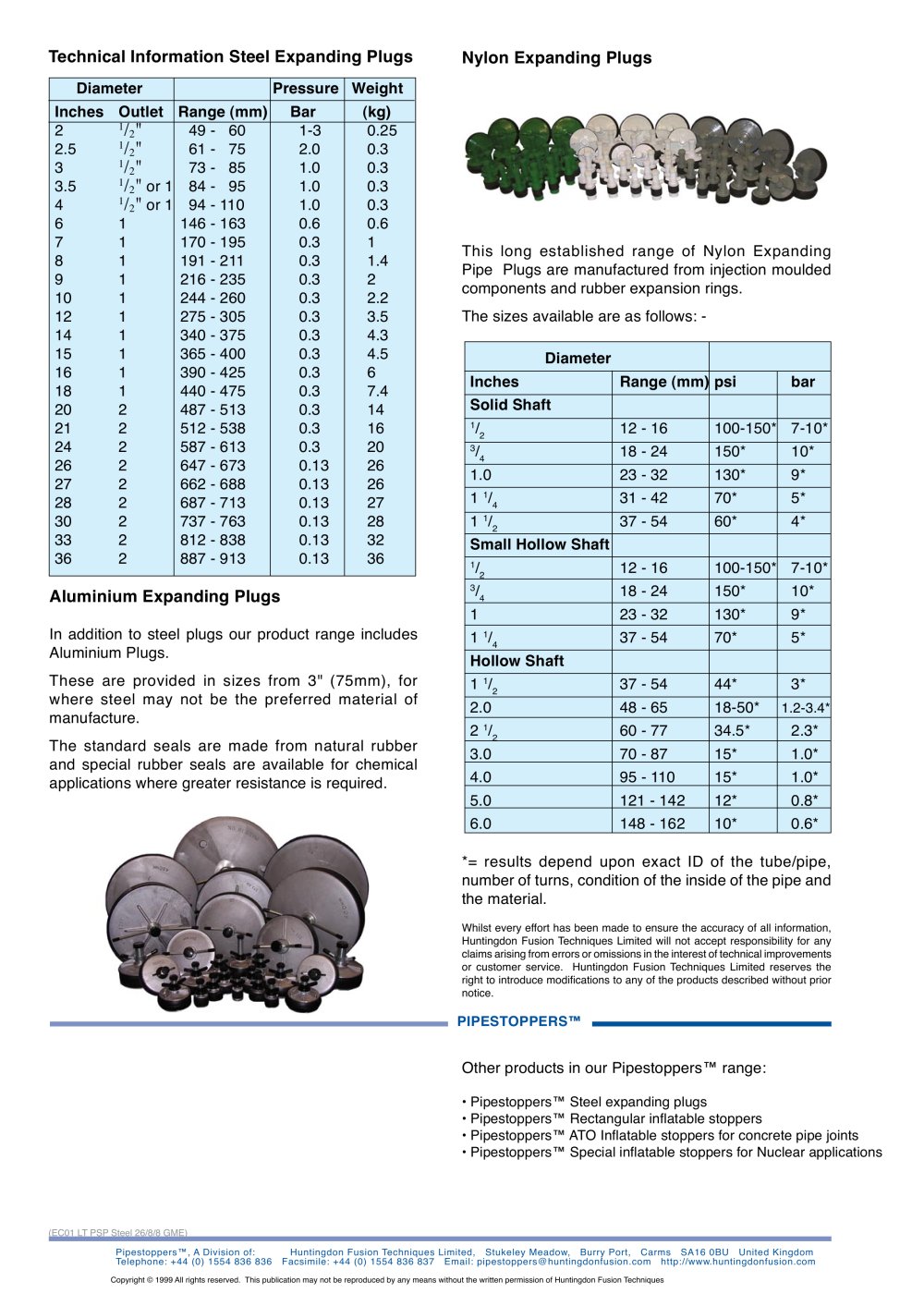

Technical Information Steel Expanding Plugs

Nylon Expanding Plugs

Diameter

Pressure

Weight


Inches	Outlet	Range (mm)	Bar	(kg)
2		49 - 60	1-3	0.25
2.5		61 - 75	2.0	0.3
3		73 - 85	1.0	0.3
3.5	V2" or 1	84 - 95	1.0	0.3
4	V2" or 1	94 - 110	1.0	0.3
6		146 - 163	0.6	0.6
7		170 - 195	0.3	1
8		191 - 211	0.3	1.4
9		216 - 235	0.3	2
10		244 - 260	0.3	2.2
12		275 - 305	0.3	3.5
14		340 - 375	0.3	4.3
15		365 - 400	0.3	4.5
16		390 - 425	0.3	6
18		440 - 475	0.3	7.4
20	2	487 - 513	0.3	14
21	2	512 - 538	0.3	16
24	2	587 - 613	0.3	20
26	2	647 - 673	0.13	26
27	2	662 - 688	0.13	26
28	2	687 - 713	0.13	27
30	2	737 - 763	0.13	28
33	2	812 - 838	0.13	32
36	2	887 - 913	0.13	36

This long established range of Nylon Expanding Pipe Plugs are manufactured from injection moulded components and rubber expansion rings.

The sizes available are as follows: -


Diameter
Inches	Range (mm)	psi	bar
Solid Shaft
	12 - 16	100-150*	7-10*
	18 - 24	150*	10*
1.0	23 - 32	130*	9*
	31 - 42	70*	5*
¹ ^1/2	37 - 54	60*	4*
Small Hollow Shaft
^1/2	12 - 16	100-150*	7-10*
^3/4	18 - 24	150*	10*
1	23 - 32	130*	9*
¹ ^1/4	37 - 54	70*	5*
Hollow Shaft
¹ ^1/2	37 - 54	44*	3*
2.0	48 - 65	18-50*	1.2-3.4*
² ^1/2	60 - 77	34.5*	2.3*
3.0	70 - 87	15*	1.0*
4.0	95 - 110	15*	1.0*
5.0	121 - 142	12*	0.8*
6.0	148 - 162	10*	0.6*

Aluminium Expanding Plugs

In addition to steel plugs our product range includes Aluminium Plugs.

These are provided in sizes from 3" (75mm), for where steel may not be the preferred material of manufacture.

The standard seals are made from natural rubber and special rubber seals are available for chemical applications where greater resistance is required.

*= results depend upon exact ID of the tube/pipe, number of turns, condition of the inside of the pipe and the material.

Whilst every effort has been made to ensure the accuracy of all information, Huntingdon Fusion Techniques Limited will not accept responsibility for any claims arising from errors or omissions in the interest of technical improvements or customer service. Huntingdon Fusion Techniques Limited reserves the right to introduce modifications to any of the products described without prior notice.

PIPESTOPPERS™

Other products in our Pipestoppers™ range:

• Pipestoppers™ Steel expanding plugs

• Pipestoppers™ Rectangular inflatable stoppers

• Pipestoppers™ ATO Inflatable stoppers for concrete pipe joints

• Pipestoppers™ Special inflatable stoppers for Nuclear applications

Pipestoppers™, A Division of: Huntingdon Fusion Techniques Limited, Stukeley Meadow, Burry Port, Carms SA16 0BU United Kingdom

Telephone: +44 (0) 1554 836 836 Facsimile: +44 (0) 1554 836 837 Email: pipestoppers@huntingdonfusion.com http://www.huntingdonfusion.com
