Nylon Expanding Plugs

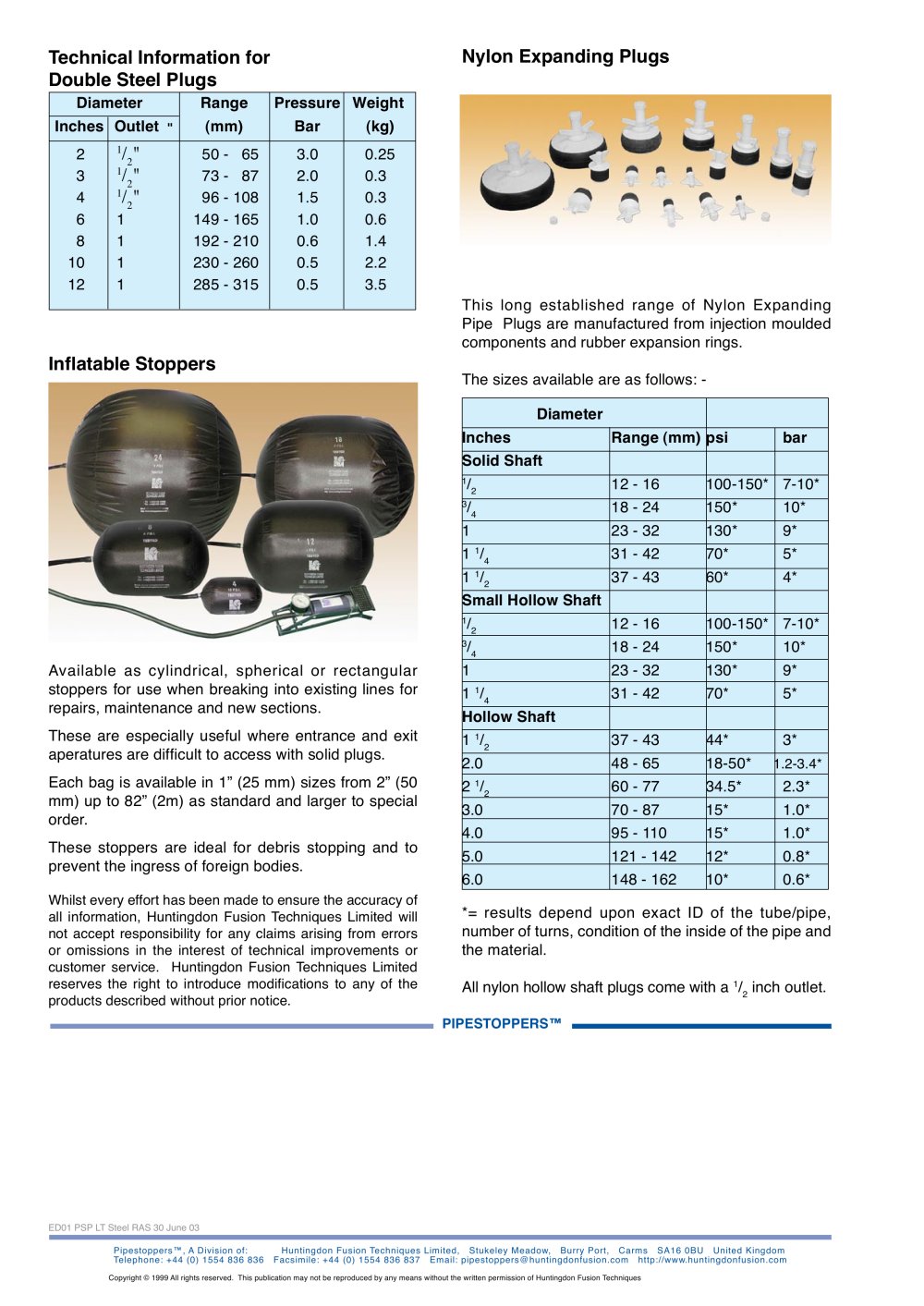

Technical Information for Double Steel Plugs


Diameter		Range (mm)	Pressure Bar	Weight (kg)
Inches	Outlet ■■	Range (mm)	Pressure Bar	Weight (kg)
2		50 - 65	3.0	0.25
3		73 - 87	2.0	0.3
4	V	96 - 108	1.5	0.3
6	1	149 - 165	1.0	0.6
8	1	192 - 210	0.6	1.4
10	1	230 - 260	0.5	2.2
12	1	285 - 315	0.5	3.5

This long established range of Nylon Expanding Pipe Plugs are manufactured from injection moulded components and rubber expansion rings.

Inflatable Stoppers

The sizes available are as follows: -


Diameter
Inches	Range (mm)	psi	bar
Solid Shaft
	12 - 16	100-150*	7-10*
	18 - 24	150*	10*
1	23 - 32	130*	9*
	31 - 42	70*	5*
¹ v₂	37 - 43	60*	4*
Small Hollow Shaft
	12 - 16	100-150*	7-10*
	18 - 24	150*	10*
1	23 - 32	130*	9*
1 V4	31 - 42	70*	5*
Hollow Shaft
1 %	37 - 43	44*	3*
2.0	48 - 65	18-50*	1.2-3.4*
2 V 2	60 - 77	34.5*	2.3*
3.0	70 - 87	15*	1.0*
4.0	95 - 110	15*	1.0*
5.0	121 - 142	12*	0.8*
6.0	148 - 162	10*	0.6*

Available as cylindrical, spherical or rectangular stoppers for use when breaking into existing lines for repairs, maintenance and new sections.

These are especially useful where entrance and exit aperatures are difficult to access with solid plugs.

Each bag is available in 1" (25 mm) sizes from 2" (50 mm) up to 82" (2m) as standard and larger to special order.

These stoppers are ideal for debris stopping and to prevent the ingress of foreign bodies.

Whilst every effort has been made to ensure the accuracy of all information, Huntingdon Fusion Techniques Limited will

not accept responsibility for any claims arising from errors or omissions in the interest of technical improvements or customer service. Huntingdon Fusion Techniques Limited reserves the right to introduce modifications to any of the products described without prior notice.

*= results depend upon exact ID of the tube/pipe, number of turns, condition of the inside of the pipe and the material.

All nylon hollow shaft plugs come with a ¹/₂ inch outlet. PIPESTOPPERS™

PSP LT Steel RAS 30 June 03

Pipestoppers™, A Division of: Huntingdon Fusion Techniques Limited, Stukeley Meadow, Burry Port, Carms SA16 0BU United Kingdom

Telephone: +44 (0) 1554 836 836 Facsimile: +44 (0) 1554 836 837 Email: pipestoppers@huntingdonfusion.com http://www.huntingdonfusion.com
