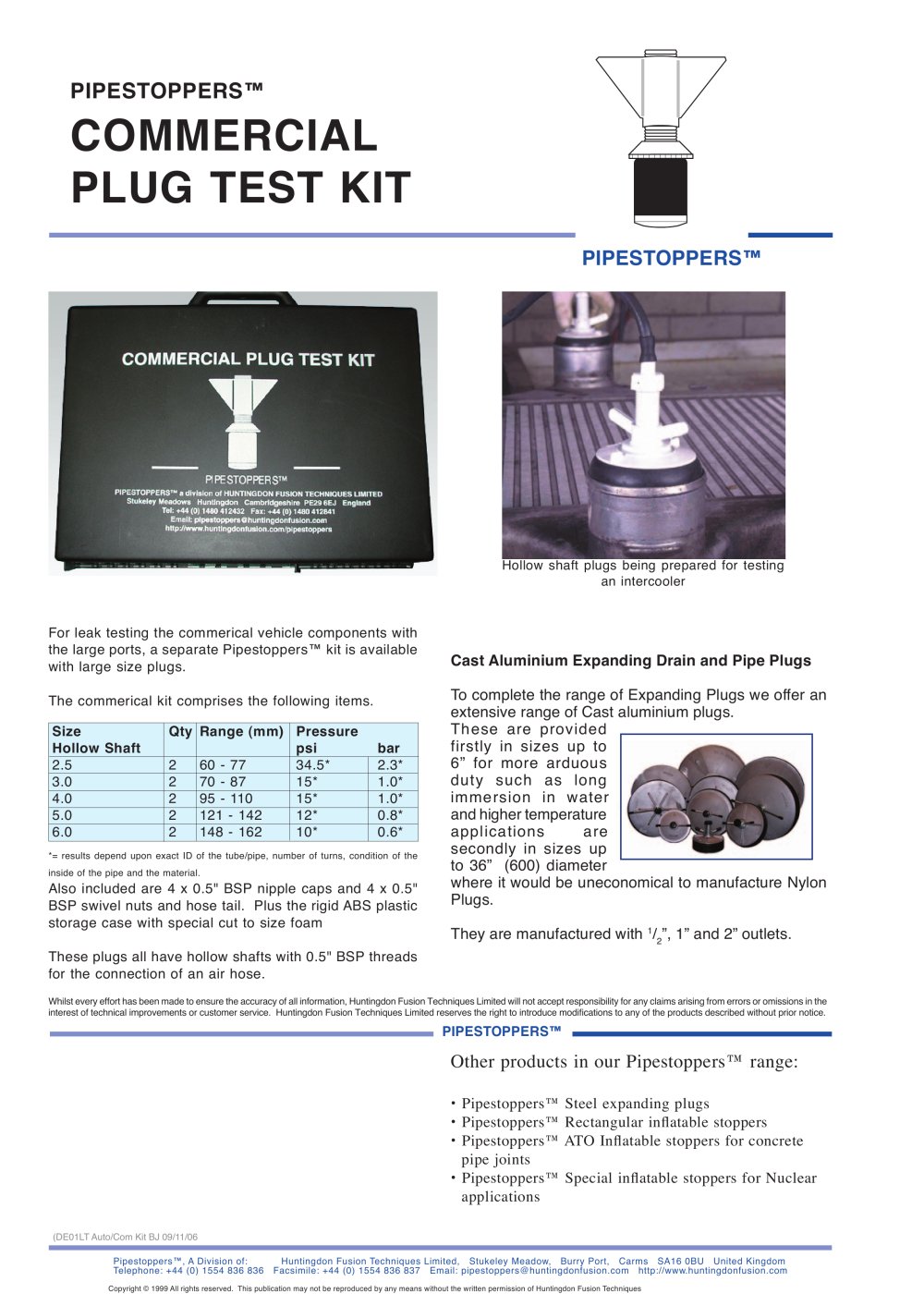

| | | PIPESTOPPERS™ COMMERCIAL PLUG TEST KIT | | |
| | | |
| | | PIPESTOPPERS™ | | |
| | | |
| | | COMMERCIAL PLUG TEST KIT | | |
| | | |
| | | T | | |
| | | |
| | | PIPESTOPPERS™ PIFESTÛPPenS*** ft dhftlon Of HUNTINGtiQN FUSION TECHNIQUES LIMITED StUteltty Meadows Huntingdon CrambrdgeshiKi PE29 6EJ Engbrd Ttt: +44 (0) 14Ä0 41?432 Fftir +44 (0} 1480 412841 Emoli: pIpntoppwsaiiurlliigdaTtfueion^om httprfitoww.h unlingdonlusioit.cam .'pl p« stopper? | | |
| | | |
| | | Hollow shaft plugs being prepared for testing an intercooler | | |
| | | |
| | | For leak testing the commerical vehicle components with the large ports, a separate Pipestoppers™ kit is available with large size plugs. The commerical kit comprises the following items. | | |
| | | Cast Aluminium Expanding Drain and Pipe Plugs To complete the range of Expanding Plugs we offer an extensive range of Cast aluminium plugs. These are provided firstly in sizes up to 6" for more arduous duty such as long immersion in water and higher temperature applications are secondly in sizes up to 36" (600) diameter where it would be uneconomical to manufacture Nylon Plugs. They are manufactured with 1/2", 1" and 2" outlets. | | |
| | | |
| | | | | | | | | | | | | Size | Qty | Range (mm) | Pressure | | | | | Hollow Shaft | | | psi | bar | | | | 2.5 | 2 | 60 - 77 | 34.5* | 2.3* | | | | 3.0 | 2 | 70 - 87 | 15* | 1.0* | | | | 4.0 | 2 | 95 - 110 | 15* | 1.0* | | | | 5.0 | 2 | 121 - 142 | 12* | 0.8* | | | | 6.0 | 2 | 148 - 162 | 10* | 0.6* | | | | | | | | | | | | |
| | | |
| | | *= results depend upon exact ID of the tube/pipe, number of turns, condition of the inside of the pipe and the material. Also included are 4 x 0.5" BSP nipple caps and 4 x 0.5" BSP swivel nuts and hose tail. Plus the rigid ABS plastic storage case with special cut to size foam These plugs all have hollow shafts with 0.5" BSP threads for the connection of an air hose. | | |
| | | |
| | | |
| | | Whilst every effort has been made to ensure the accuracy of all information, Huntingdon Fusion Techniques Limited will not accept responsibility for any claims arising from errors or omissions in the interest of technical improvements or customer service. Huntingdon Fusion Techniques Limited reserves the right to introduce modifications to any of the products described without prior notice. PIPESTOPPERS™ | | |
| | | |
| | | Other products in our Pipestoppers™ range: • Pipestoppers™ Steel expanding plugs • Pipestoppers™ Rectangular inflatable stoppers • Pipestoppers™ ATO Inflatable stoppers for concrete pipe joints • Pipestoppers™ Special inflatable stoppers for Nuclear applications | | |
| | | |
| | | (DE01LT Auto/Com Kit BJ 09/11/06 | | |
| | | |
| | | Pipestoppers™, A Division of: Huntingdon Fusion Techniques Limited, Stukeley Meadow, Burry Port, Carms SA16 0BU United Kingdom Telephone: +44 (0) 1554 836 836 Facsimile: +44 (0) 1554 836 837 Email: pipestoppers@huntingdonfusion.com http://www.huntingdonfusion.com | | |
| | | |
