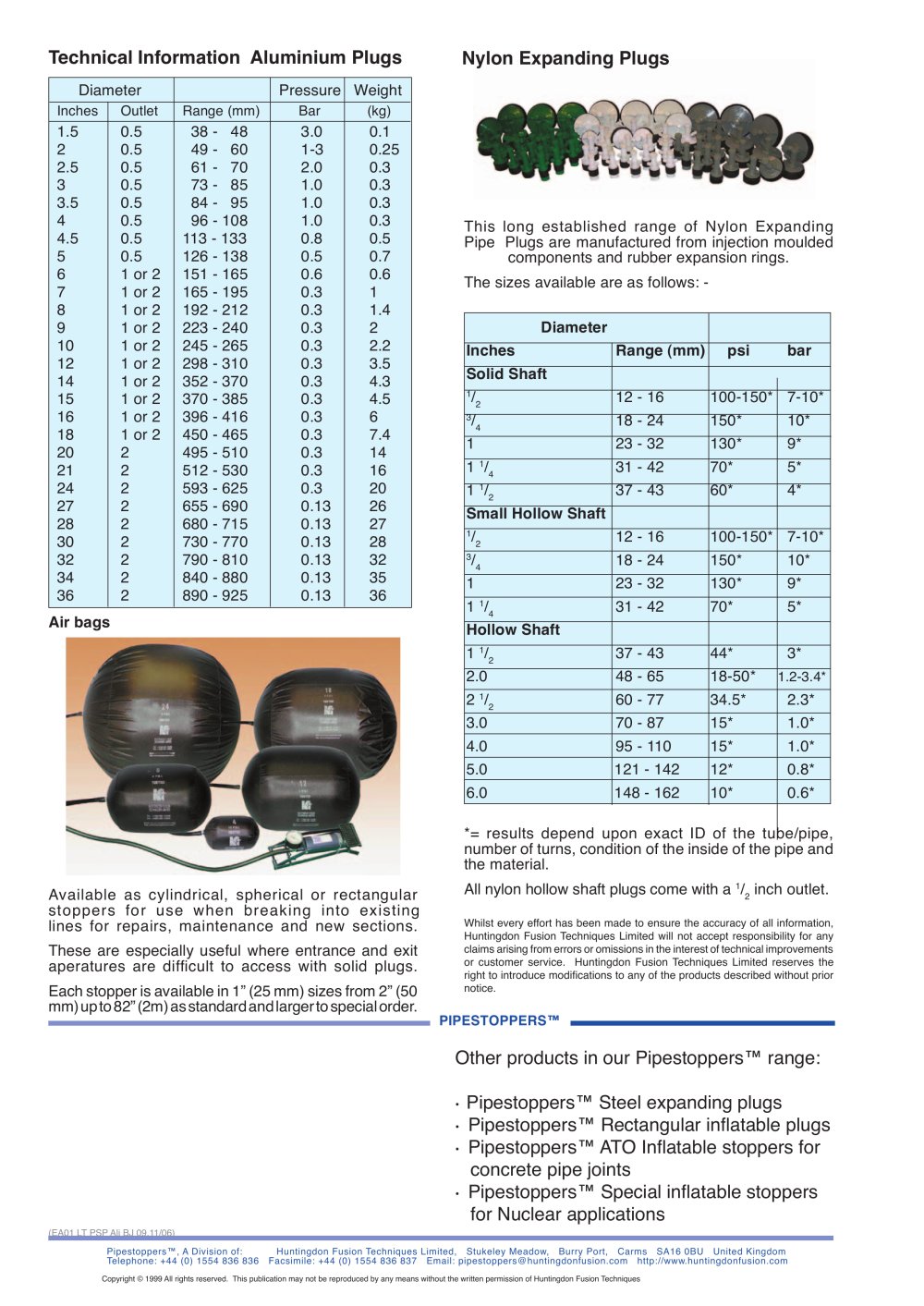

Technical Information Aluminium Plugs

Nylon Expanding Plugs

Diameter

Pressure

Weight


Inches	Outlet	Range (mm)	Bar	(kg)
1.5	0.5	38 - 48	3.0	0.1
2	0.5	49 - 60	1-3	0.25
2.5	0.5	61 - 70	2.0	0.3
3	0.5	73 - 85	1.0	0.3
3.5	0.5	84 - 95	1.0	0.3
4	0.5	96 - 108	1.0	0.3
4.5	0.5	113 - 133	0.8	0.5
5	0.5	126 - 138	0.5	0.7
6	1 or 2	151 - 165	0.6	0.6
7	1 or 2	165 - 195	0.3	1
8	1 or 2	192 - 212	0.3	1.4
9	1 or 2	223 - 240	0.3	2
10	1 or 2	245 - 265	0.3	2.2
12	1 or 2	298 - 310	0.3	3.5
14	1 or 2	352 - 370	0.3	4.3
15	1 or 2	370 - 385	0.3	4.5
16	1 or 2	396 - 416	0.3	6
18	1 or 2	450 - 465	0.3	7.4
20	2	495 - 510	0.3	14
21	2	512 - 530	0.3	16
24	2	593 - 625	0.3	20
27	2	655 - 690	0.13	26
28	2	680 - 715	0.13	27
30	2	730 - 770	0.13	28
32	2	790 - 810	0.13	32
34	2	840 - 880	0.13	35
36	2	890 - 925	0.13	36

This long established range of Nylon Expanding Pipe Plugs are manufactured from injection moulded components and rubber expansion rings.

The sizes available are as follows: -


Diameter
Inches	Range (mm)	psi	bar
Solid Shaft
	12 - 16	100-150*	7-10*
	18 - 24	150*	10*
1	23 - 32	130*	9*
	31 - 42	70*	5*
¹ '4	37 - 43	60*	4*
Small Hollow Shaft
	12 - 16	100-150*	7-10*
	18 - 24	150*	10*
1	23 - 32	130*	9*
	31 - 42	70*	5*
Hollow Shaft
	37 - 43	44*	3*
2.0	48 - 65	18-50*	1.2-3.4*
² ^1/2	60 - 77	34.5*	2.3*
3.0	70 - 87	15*	1.0*
4.0	95 - 110	15*	1.0*
5.0	121 - 142	12*	0.8*
6.0	148 - 162	10*	0.6*
*= results depend upon exact ID of the tu			be/pipe

Air bags

number of turns, condition of the inside of the pipe and the material.

All nylon hollow shaft plugs come with a ¹/₂ inch outlet.

Whilst every effort has been made to ensure the accuracy of all information, Huntingdon Fusion Techniques Limited will not accept responsibility for any claims arising from errors or omissions in the interest of technical improvements or customer service. Huntingdon Fusion Techniques Limited reserves the right to introduce modifications to any of the products described without prior notice.

Available as cylindrical, spherical or rectangular stoppers for use when breaking into existing lines for repairs, maintenance and new sections.

These are especially useful where entrance and exit aperatures are difficult to access with solid plugs.

Each stopper is available in 1" (25 mm) sizes from 2" (50 mm) up to 82" (2m) as standard and larger to special order.

PIPESTOPPERS™

Other products in our Pipestoppers™ range:

• Pipestoppers™ Steel expanding plugs

• Pipestoppers™ Rectangular inflatable plugs

• Pipestoppers™ ATO Inflatable stoppers for concrete pipe joints

• Pipestoppers™ Special inflatable stoppers for Nuclear applications

^(EA01 !^T ^PSP ^Ali R-l ⁰⁹ ^11/06)

Pipestoppers™, A Division of: Huntingdon Fusion Techniques Limited, Stukeley Meadow, Rurry Port, Carms SA16 0RU United Kingdom

Telephone: +44 (0) 1554 836 836 Facsimile: +44 (0) 1554 836 837 Email: pipestoppers@huntingdonfusion.com http://www.huntingdonfusion.com
