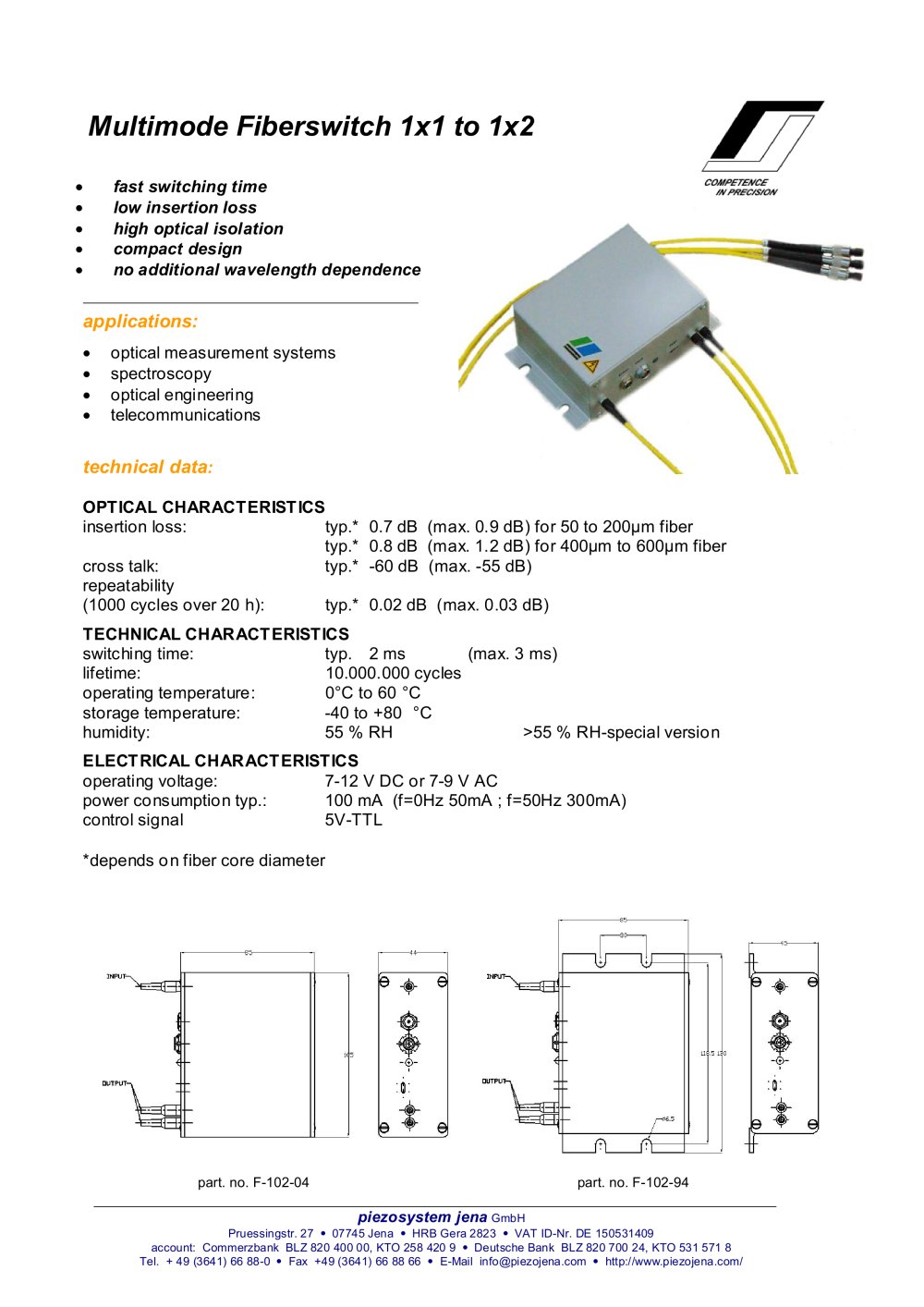

Multimode Fiberswitch 1x1 to 1x2

• fast switching time • low insertion loss • high optical isolation • compact design • no additional wavelength dependence

applications:

• optical measurement systems • spectroscopy • optical engineering • telecommunications

technical data

: OPTICAL CHARACTERISTICS insertion loss: typ.* 0.7 dB (max. 0.9 dB) for 50 to 200µm fiber typ.* 0.8 dB (max. 1.2 dB) for 400µm to 600µm fiber cross talk: typ.* -60 dB (max. -55 dB) repeatability (1000 cycles over 20 h): typ.* 0.02 dB (max. 0.03 dB) TECHNICAL CHARACTERISTICS switching time: typ. 2 ms (max. 3 ms) lifetime: 10.000.000 cycles operating temperature: 0°C to 60 °C storage temperature: -40 to +80 °C humidity: 55 % RH >55 % RH-special version ELECTRICAL CHARACTERISTICS operating voltage: 7-12 V DC or 7-9 V AC power consumption typ.: 100 mA (f=0Hz 50mA ; f=50Hz 300mA) control signal 5V-TTL *depends on fiber core diameter
part. no. F-102-04 part. no. F-102-94 piezosystem jena GmbH Pruessingstr. 27 • 07745 Jena • HRB Gera 2823 • VAT ID-Nr. DE 150531409 account: Commerzbank BLZ 820 400 00, KTO 258 420 9 • Deutsche Bank BLZ 820 700 24, KTO 531 571 8 Tel. + 49 (3641) 66 88-0 • Fax +49 (3641) 66 88 66 • E-Mail info@piezojena.com • http://www.piezojena.com/
