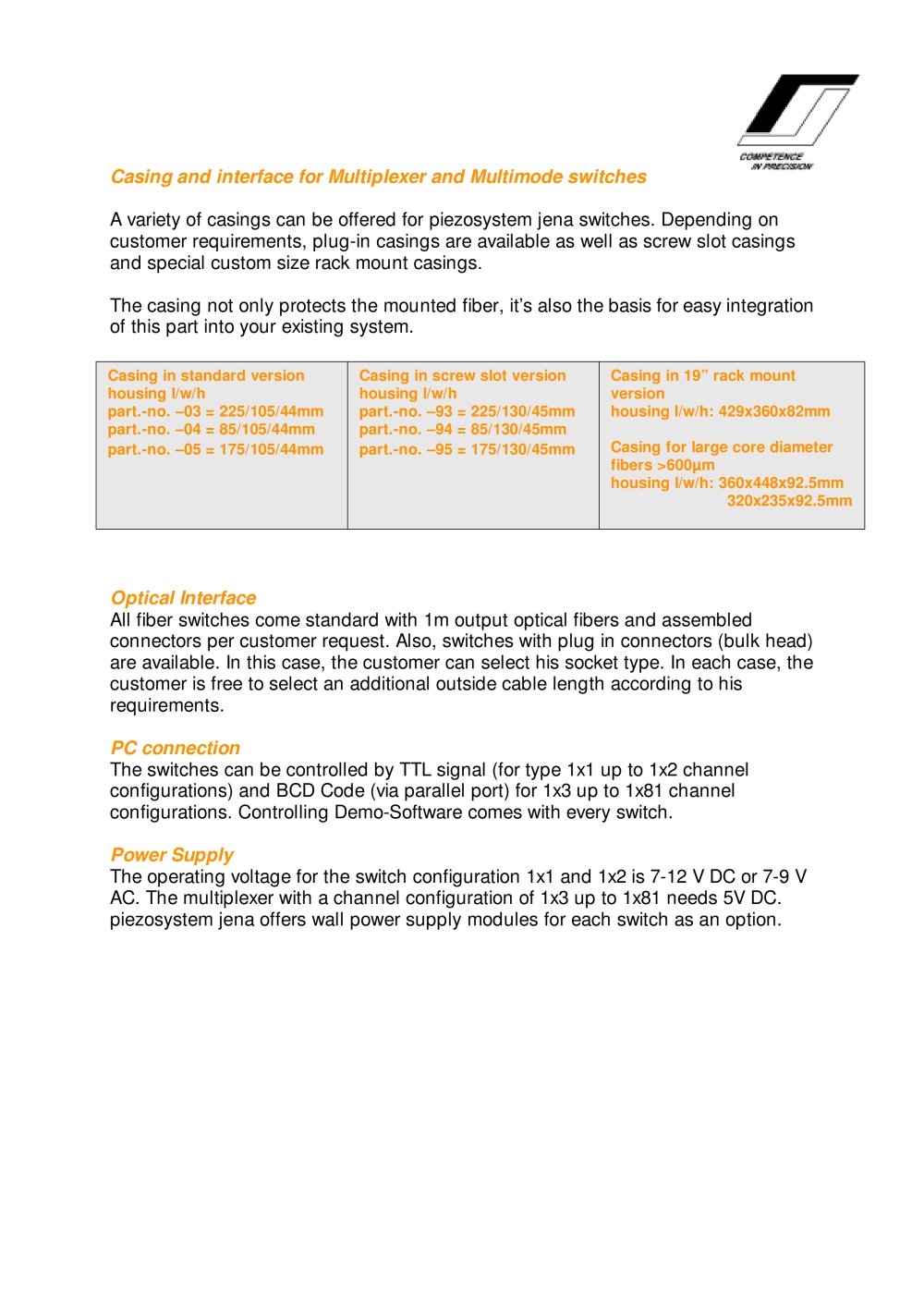

Casing and interface for Multiplexer and Multimode switches A variety of casings can be offered for piezosystem jena switches. Depending on customer requirements, plug-in casings are available as well as screw slot casings and special custom size rack mount casings. The casing not only protects the mounted fiber, it’s also the basis for easy integration of this part into your existing system.
Casing in standard version housing l/w/h part.-no. –03 = 225/105/44mm part.-no. –04 = 85/105/44mm part.-no. –05 = 175/105/44mm Casing in screw slot version housing l/w/h part.-no. –93 = 225/130/45mm part.-no. –94 = 85/130/45mm part.-no. –95 = 175/130/45mm Casing in 19” rack mount version housing l/w/h: 429x360x82mm Casing for large core diameter fibers >600µm housing l/w/h: 360x448x92.5mm 320x235x92.5mm Optical Interface All fiber switches come standard with 1m output optical fibers and assembled connectors per customer request. Also, switches with plug in connectors (bulk head) are available. In this case, the customer can select his socket type. In each case, the customer is free to select an additional outside cable length according to his requirements. PC connection The switches can be controlled by TTL signal (for type 1x1 up to 1x2 channel configurations) and BCD Code (via parallel port) for 1x3 up to 1x81 channel configurations. Controlling Demo-Software comes with every switch. Power Supply The operating voltage for the switch configuration 1x1 and 1x2 is 7-12 V DC or 7-9 V AC. The multiplexer with a channel configuration of 1x3 up to 1x81 needs 5V DC. piezosystem jena offers wall power supply modules for each switch as an option.
