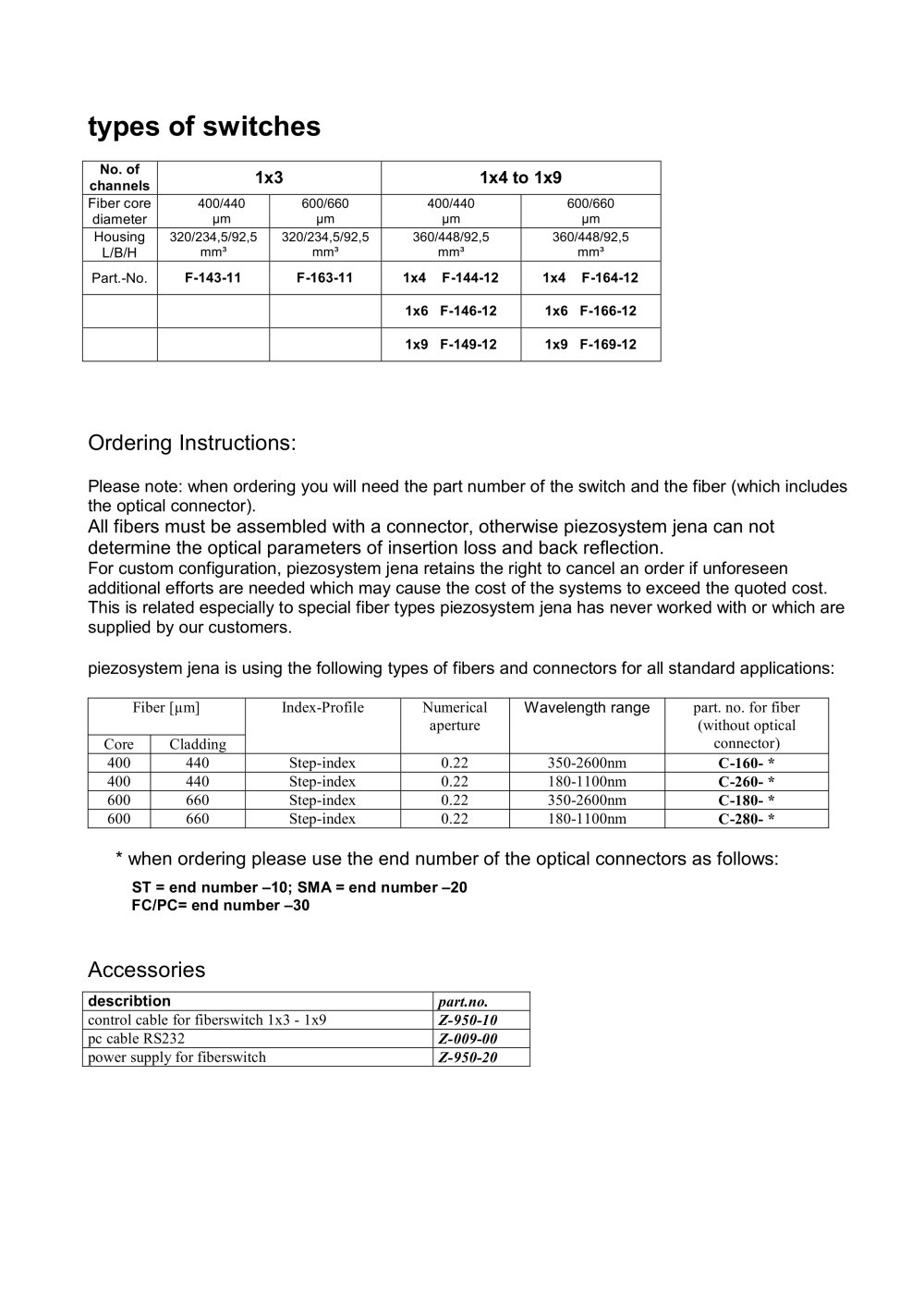

types of switches

No. of channels

1x3 1x4 to 1x9

Fiber core diameter 400/440 µ m600/660 µ m400/440 µ m600/660 µ m Housing L/B/H 320/234,5/92,5 mm³ 320/234,5/92,5 mm³ 360/448/92,5 mm³ 360/448/92,5 mm³ Part.-No. F-143-11 F-163-11 1x4 F-144-12 1x4 F-164-12 1x6 F-146-12 1x6 F-166-12 1x9 F-149-12 1x9 F-169-12

Ordering Instructions:

Please note: when ordering you will need the part number of the switch and the fiber (which includes the optical connector).

All fibers must be assembled with a connector, otherwise piezosystem jena can not determine the optical parameters of insertion loss and back reflection.

For custom configuration, piezosystem jena retains the right to cancel an order if unforeseen additional efforts are needed which may cause the cost of the systems to exceed the quoted cost. This is related especially to special fiber types piezosystem jena has never worked with or which are supplied by our customers. piezosystem jena is using the following types of fibers and connectors for all standard applications:

Fiber [ µ m] Wavelength range part. no. for fiber (without optical connector) Core Cladding Index-Profile Numerical aperture 400 440 Step-index 0.22 350-2600nm C-160- * 400 440 Step-index 0.22 180-1100nm C-260- * 600 660 Step-index 0.22 350-2600nm C-180- * 600 660 Step-index 0.22 180-1100nm C-280- *

*when ordering please use the end number of the optical connectors as follows:

ST = end number 10; SMA = end number 20 FC/PC= end number 30

Accessories

describtion part.no. control cable for fiberswitch 1x3 - 1x9 Z-950-10 pc cable RS232 Z-009-00 power supply for fiberswitch Z-950-20
