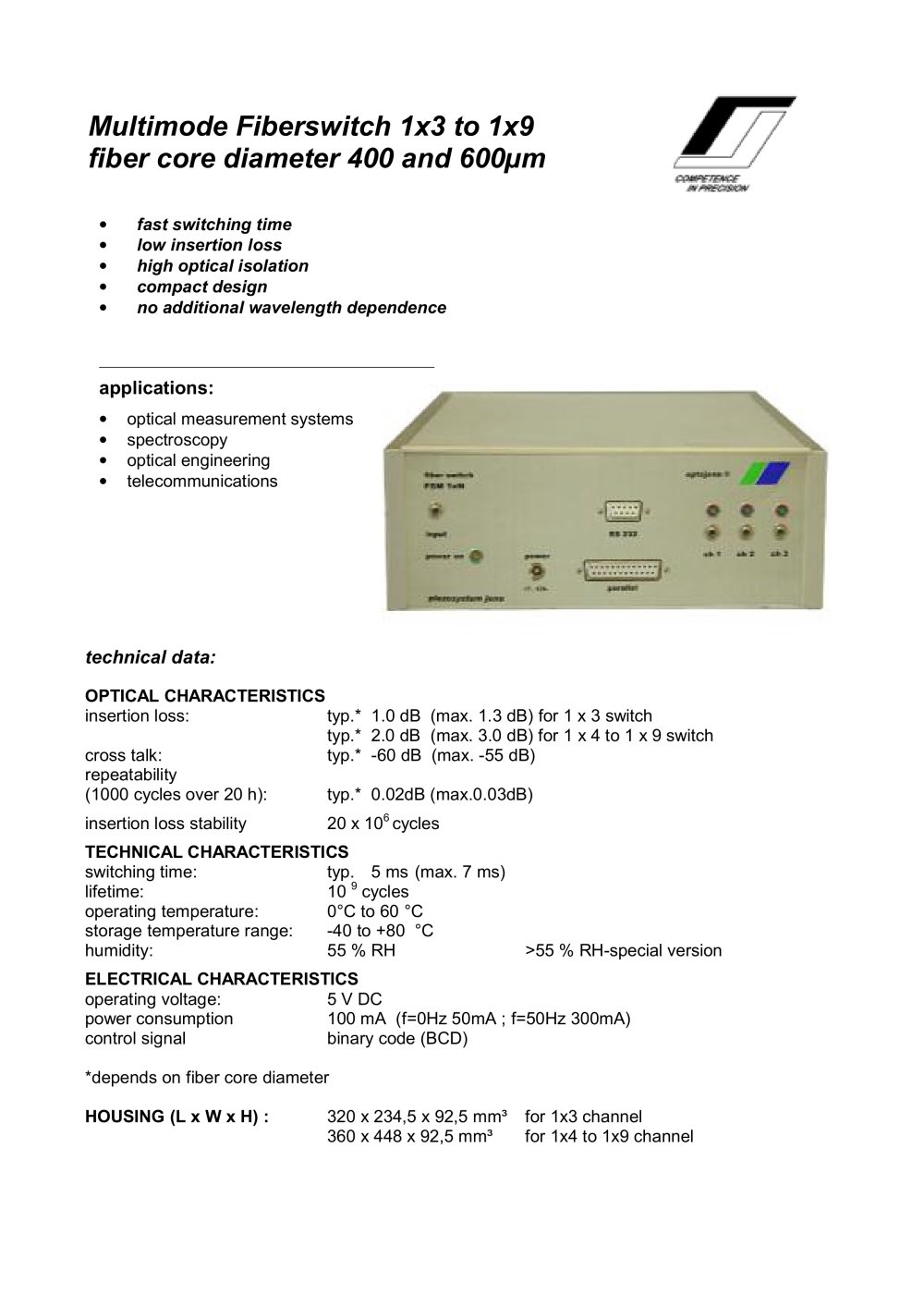

Multimode Fiberswitch 1x3 to 1x9 fiber core diameter 400 and 600 µ m

fast switching time low insertion loss high optical isolation compact design no additional wavelength dependence

applications:

optical measurement systems spectroscopy optical engineering telecommunications

technical data:

OPTICAL CHARACTERISTICS insertion loss: typ.* 1.0 dB (max. 1.3 dB) for 1 x 3 switch typ.* 2.0 dB (max. 3.0 dB) for 1 x 4 to 1 x 9 switch cross talk: typ.* -60 dB (max. -55 dB) repeatability (1000 cycles over 20 h): typ.* 0.02dB (max.0.03dB) insertion loss stability 20 x 10
6 cycles TECHNICAL CHARACTERISTICS switching time: typ. 5 ms (max. 7 ms) lifetime: 10
9 cycles operating temperature: 0°C to 60 °C storage temperature range: -40 to +80 °C humidity: 55 % RH >55 % RH-special version ELECTRICAL CHARACTERISTICS operating voltage: 5 V DC power consumption 100 mA (f=0Hz 50mA ; f=50Hz 300mA) control signal binary code (BCD) *depends on fiber core diameter HOUSING (L x W x H) : 320 x 234,5 x 92,5 mm³ for 1x3 channel 360 x 448 x 92,5 mm³ for 1x4 to 1x9 channel
