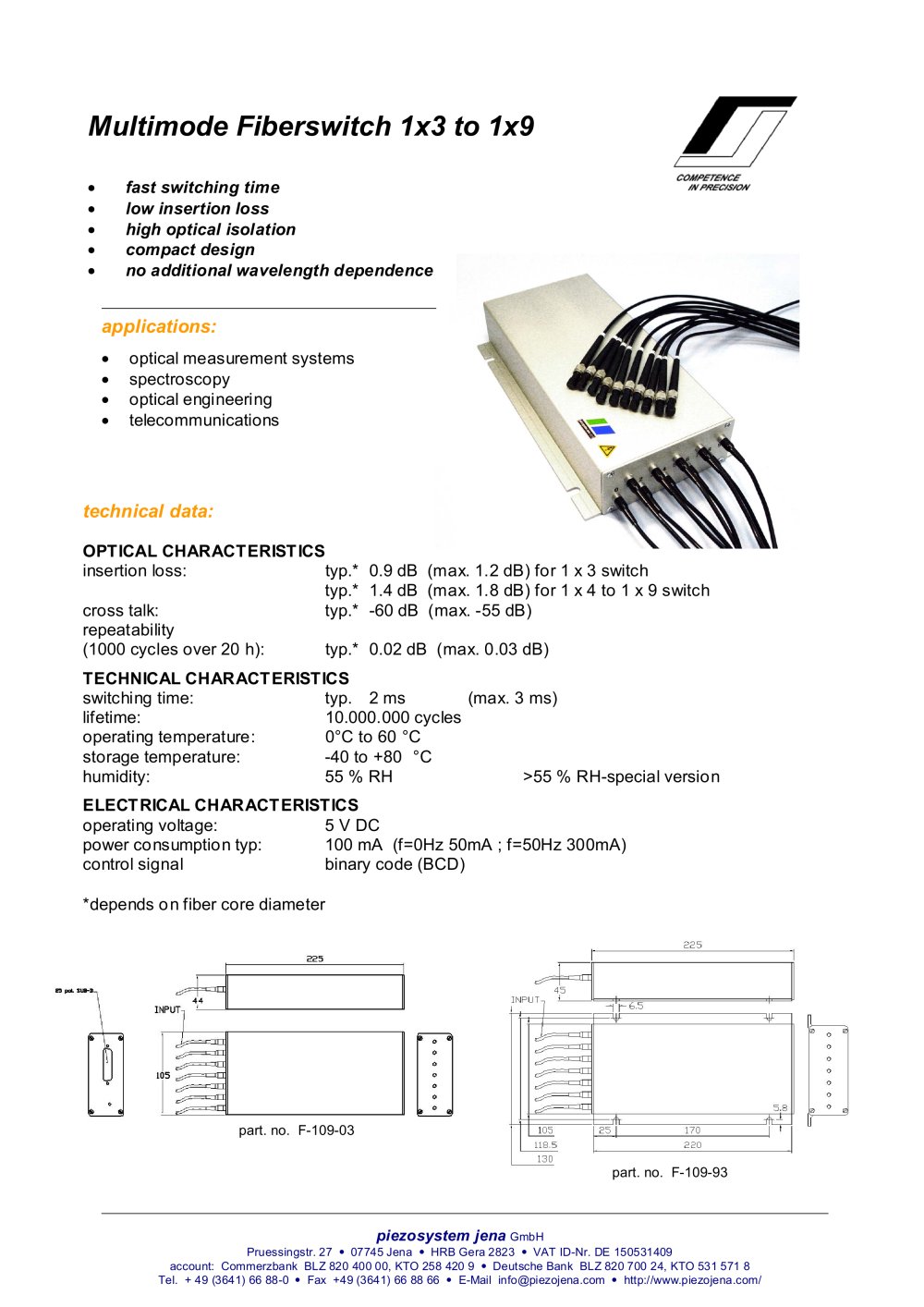

Multimode Fiberswitch 1x3 to 1x9

• fast switching time • low insertion loss • high optical isolation • compact design • no additional wavelength dependence

applications:

• optical measurement systems • spectroscopy • optical engineering • telecommunications

technical data:

OPTICAL CHARACTERISTICS insertion loss: typ.* 0.9 dB (max. 1.2 dB) for 1 x 3 switch typ.* 1.4 dB (max. 1.8 dB) for 1 x 4 to 1 x 9 switch cross talk: typ.* -60 dB (max. -55 dB) repeatability (1000 cycles over 20 h): typ.* 0.02 dB (max. 0.03 dB) TECHNICAL CHARACTERISTICS switching time: typ. 2 ms (max. 3 ms) lifetime: 10.000.000 cycles operating temperature: 0°C to 60 °C storage temperature: -40 to +80 °C humidity: 55 % RH >55 % RH-special version ELECTRICAL CHARACTERISTICS operating voltage: 5 V DC power consumption typ: 100 mA (f=0Hz 50mA ; f=50Hz 300mA) control signal binary code (BCD) *depends on fiber core diameter
