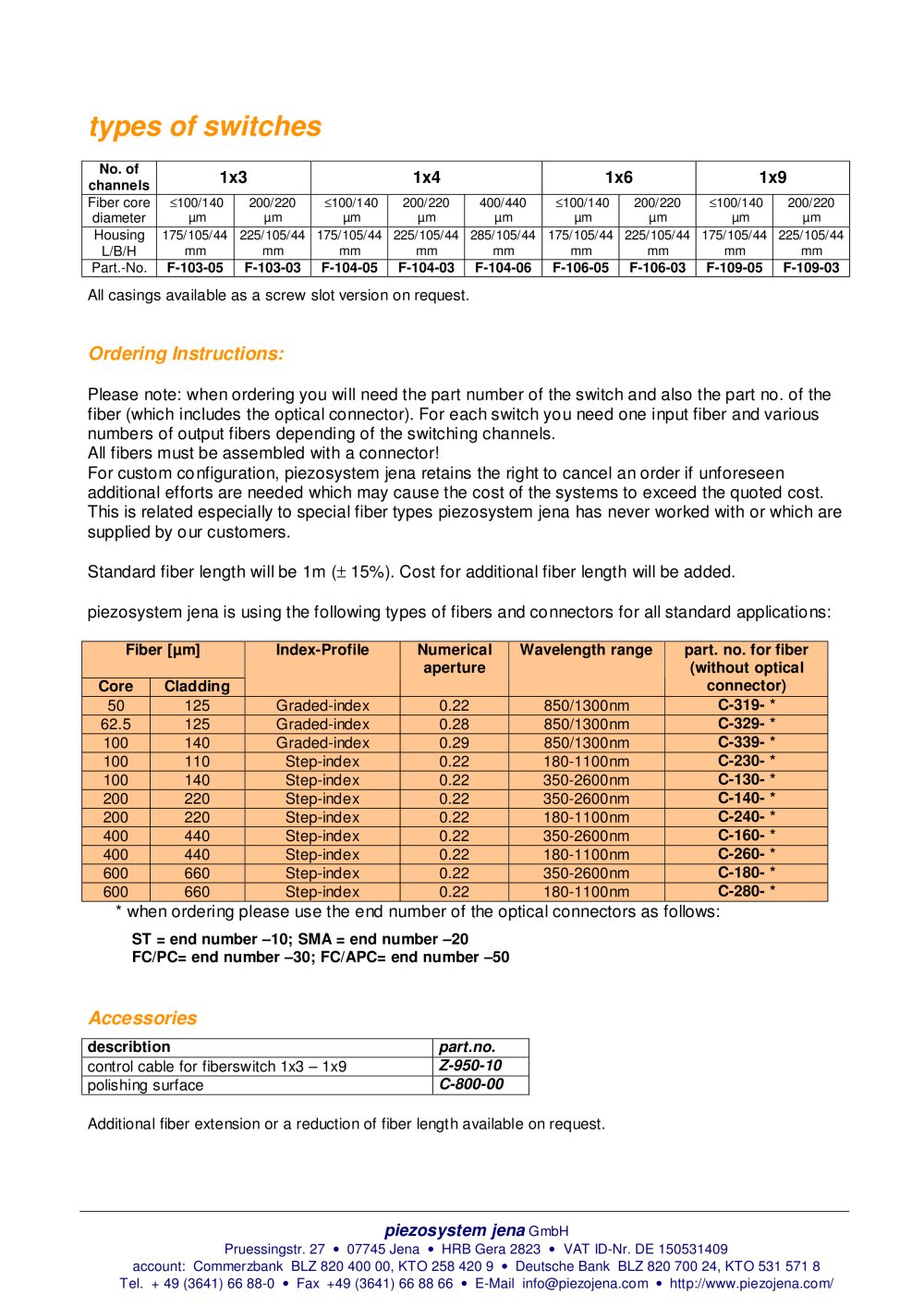

types of switches

No. of channels

1x3 1x4 1x6 1x9

Fiber core diameter ≤ 100/140 µm 200/220 µm ≤ 100/140 µm 200/220 µm 400/440 µm ≤ 100/140 µm 200/220 µm ≤ 100/140 µm 200/220 µm HousingL/B/H 175/105/44 mm 225/105/44 mm 175/105/44 mm 225/105/44 mm 285/105/44 mm 175/105/44 mm 225/105/44 mm 175/105/44 mm 225/105/44 mm Part.-No. F-103-05 F-103-03 F-104-05 F-104-03 F-104-06 F-106-05 F-106-03 F-109-05 F-109-03 All casings available as a screw slot version on request.

Ordering Instructions:

Please note: when ordering you will need the part number of the switch and also the part no. of the fiber (which includes the optical connector). For each switch you need one input fiber and various numbers of output fibers depending of the switching channels. All fibers must be assembled with a connector! For custom configuration, piezosystem jena retains the right to cancel an order if unforeseen additional efforts are needed which may cause the cost of the systems to exceed the quoted cost. This is related especially to special fiber types piezosystem jena has never worked with or which are supplied by our customers. Standard fiber length will be 1m ( ± 15%). Cost for additional fiber length will be added. piezosystem jena is using the following types of fibers and connectors for all standard applications:

Fiber [µm] Index-Profile Numerical Wavelength range part. no. for fiber aperture (without optical Core Cladding connector) 50 125 Graded-index 0.22 850/1300nm C-319- * 62.5 125 Graded-index 0.28 850/1300nm C-329- * 100 140 Graded-index 0.29 850/1300nm C-339- * 100 110 Step-index 0.22 180-1100nm C-230- * 100 140 Step-index 0.22 350-2600nm C-130- * 200 220 Step-index 0.22 350-2600nm C-140- * 200 220 Step-index 0.22 180-1100nm C-240- * 400 440 Step-index 0.22 350-2600nm C-160- * 400 440 Step-index 0.22 180-1100nm C-260- * 600 660 Step-index 0.22 350-2600nm C-180- * 600 660 Step-index 0.22 180-1100nm C-280- *

* when ordering please use the end number of the optical connectors as follows:

ST = end number –10; SMA = end number –20 FC/PC= end number –30; FC/APC= end number –50

Accessories

describtion part.no. control cable for fiberswitch 1x3 – 1x9 Z-950-10 polishing surface C-800-00 Additional fiber extension or a reduction of fiber length available on request.
