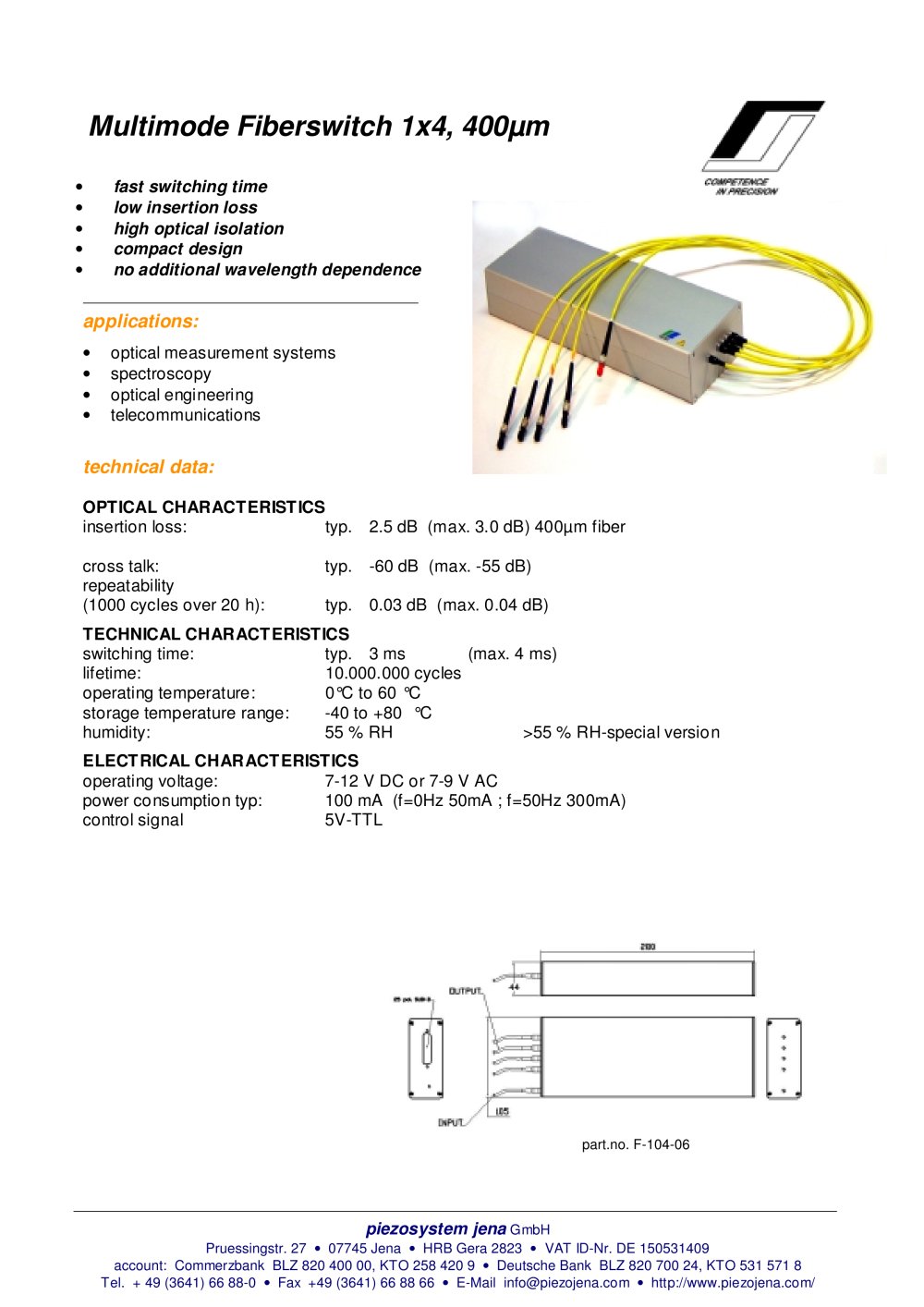

Multimode Fiberswitch 1x4, 400µm

• fast switching time • low insertion loss • high optical isolation • compact design • no additional wavelength dependence

applications:

• optical measurement systems • spectroscopy • optical engineering • telecommunications

technical data:

OPTICAL CHARACTERISTICS insertion loss: typ. 2.5 dB (max. 3.0 dB) 400µm fiber cross talk: typ. -60 dB (max. -55 dB) repeatability (1000 cycles over 20 h): typ. 0.03 dB (max. 0.04 dB) TECHNICAL CHARACTERISTICS switching time: typ. 3 ms (max. 4 ms) lifetime: 10.000.000 cycles operating temperature: 0°C to 60 °C storage temperature range: -40 to +80 °C humidity: 55 % RH >55 % RH-special version ELECTRICAL CHARACTERISTICS operating voltage: 7-12 V DC or 7-9 V AC power consumption typ: 100 mA (f=0Hz 50mA ; f=50Hz 300mA) control signal 5V-TTL
part.no. F-104-06 piezosystem jena
