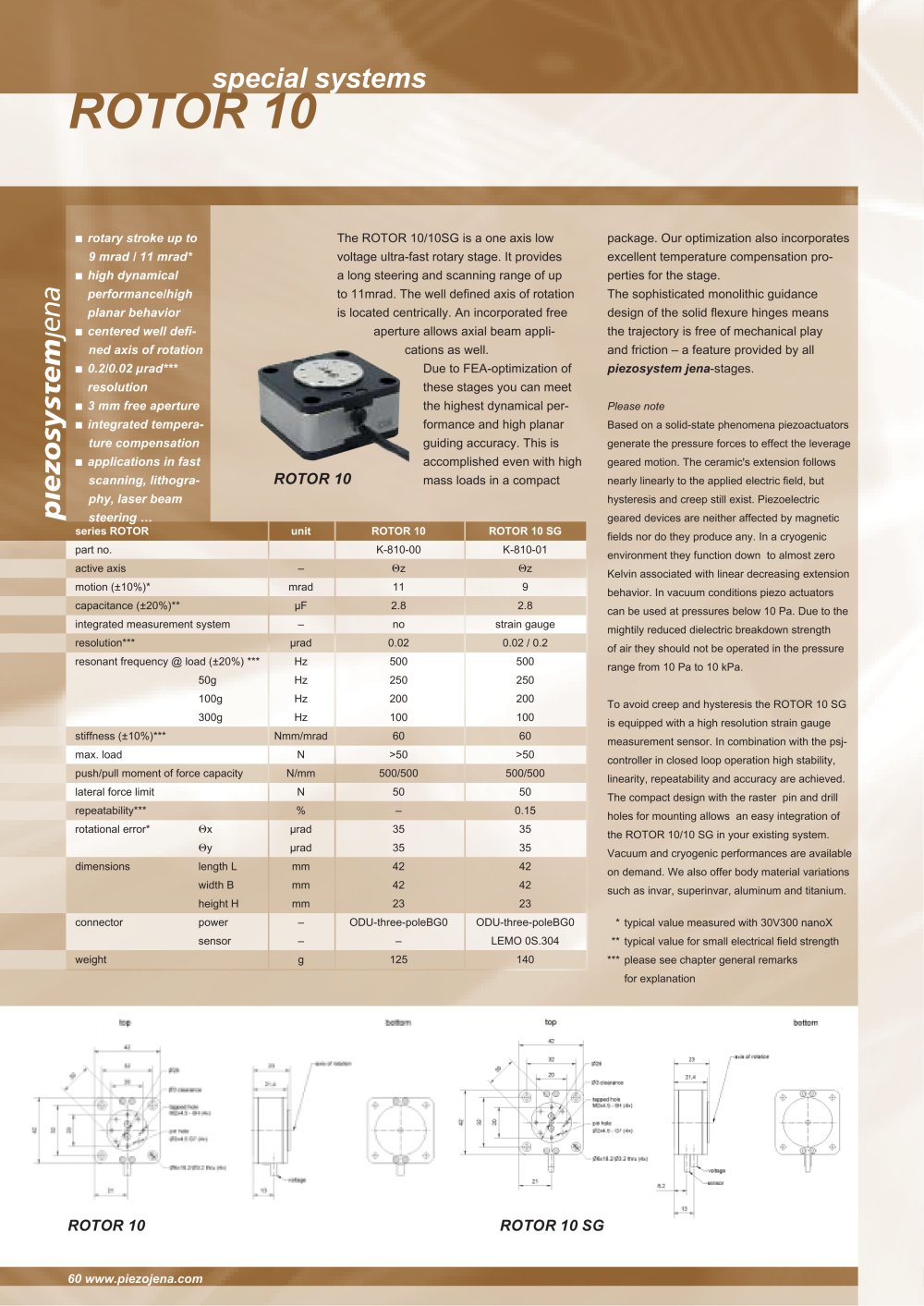

strain gauge systems

Please note for standard actuators and actuators,equipped with strain gauge sensors:

• the tolerance of the open loop motion is –10 to +40% • the tolerance of the capacitance is ±20% • the closed loop travel is 80% of the full open loop travel only (controller reserve)• the resolution is limited by the noise of the amplifier • all given resolution values are based on measurements with the E-103-18 amplifier• standard calibration will be done without any load on the actuator • on customer request, defined loads (up to the max. load) can becalibrated during manufacturing once to realize an optimized system• additional calibration has to be paid by the customer • the standard cable length is 1 m (except series N, series R, PX 500,Piezogripper, Fibergripper, Minislit PZS 2, spezcial OEM elements)• vacuum version cable length at the actuator is 1 m, extension cablelength outside the vacuum chamber is 1.2 m

capacitive systems

Please note for actuators, equipped with capaci- tive sensors:

• the tolerance of the open loop motion is –10 to +40% • the tolerance of the capacitance is ±20% • the standard cable length is 1.6 m • vacuum version cable length is 0.6 m, extension cable length outside the vacuum chamber is 1 m, the vacuum feed trough for the sensor must be ordered (Z-300-01)• standard calibration will be done without any load on the actuator • on customer request, defined loads (up to the max. load) can becalibrated during manufacturing once to realize an optimized system• additional calibration has to be paid by the customer
